>>> > SKU 108323
|
|
|
|

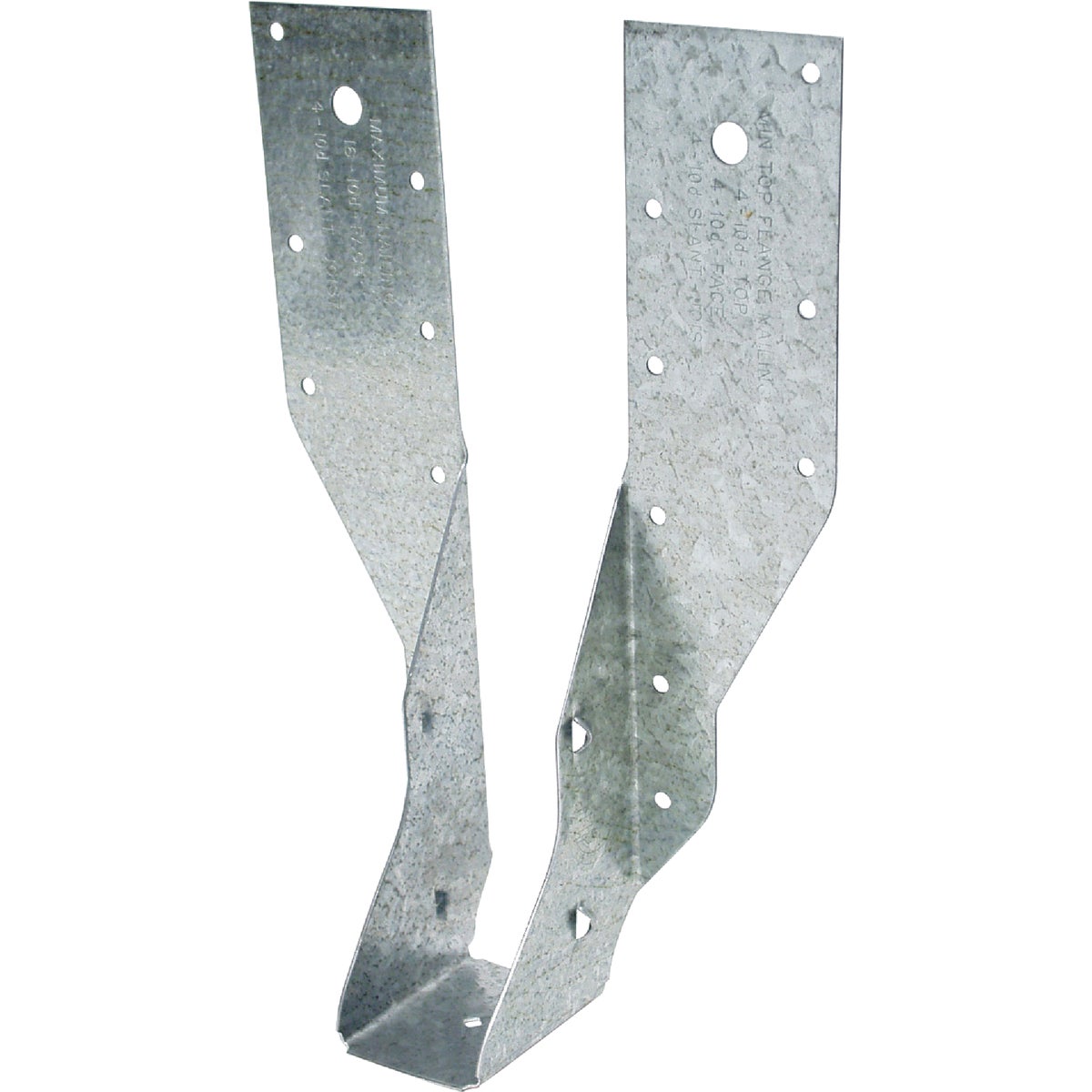

ADJUSTABLE TRUSS HANGER |
|
Simpson Strong Tie |
|
Model:
THA29 |
|
Do it Best SKU:
108323 |
|
|
|
|
|
|
|
Sold only in multiples of 50 / $3.49 each. |
|
|
Free Shipping: Ship-to-Store
At participating locations
Arrives in 7-10 business days
Learn More
|
|
|
|
|
Simpson Strong Tie
|
Simpson Strong-Tie Adjustable Truss Hanger
The THA series extra long straps allow full code nailing and can be field-formed to give top flange hanger convenience. For the THA29, nails used for joist attachment must be driven at an angle so that they penetrate through the corner of the joist and into the header. For all other top flange installations, straighten the double shear nailing tabs and install the nails straight into the joist. For face mount installation, install all face nails according to the table. Not all nail holes will be filled on all models. On models where there are more nails holes than required, the lowest 4 face holes must be filled. Nails used for the joist attachment must be driven at an angle so that they penetrate through the corner of the joist into the header. 18-gauge. Galvanized. Minimum carried member 2 x 4. Dimensions: 1-5/8" W. x 9-11/16" H. x 5-1/8" C. Minimum header depth, 9-11/16". Face mount installation, 16-10d on the face, 4-10d on the slant. |
|
|
|
|
|
