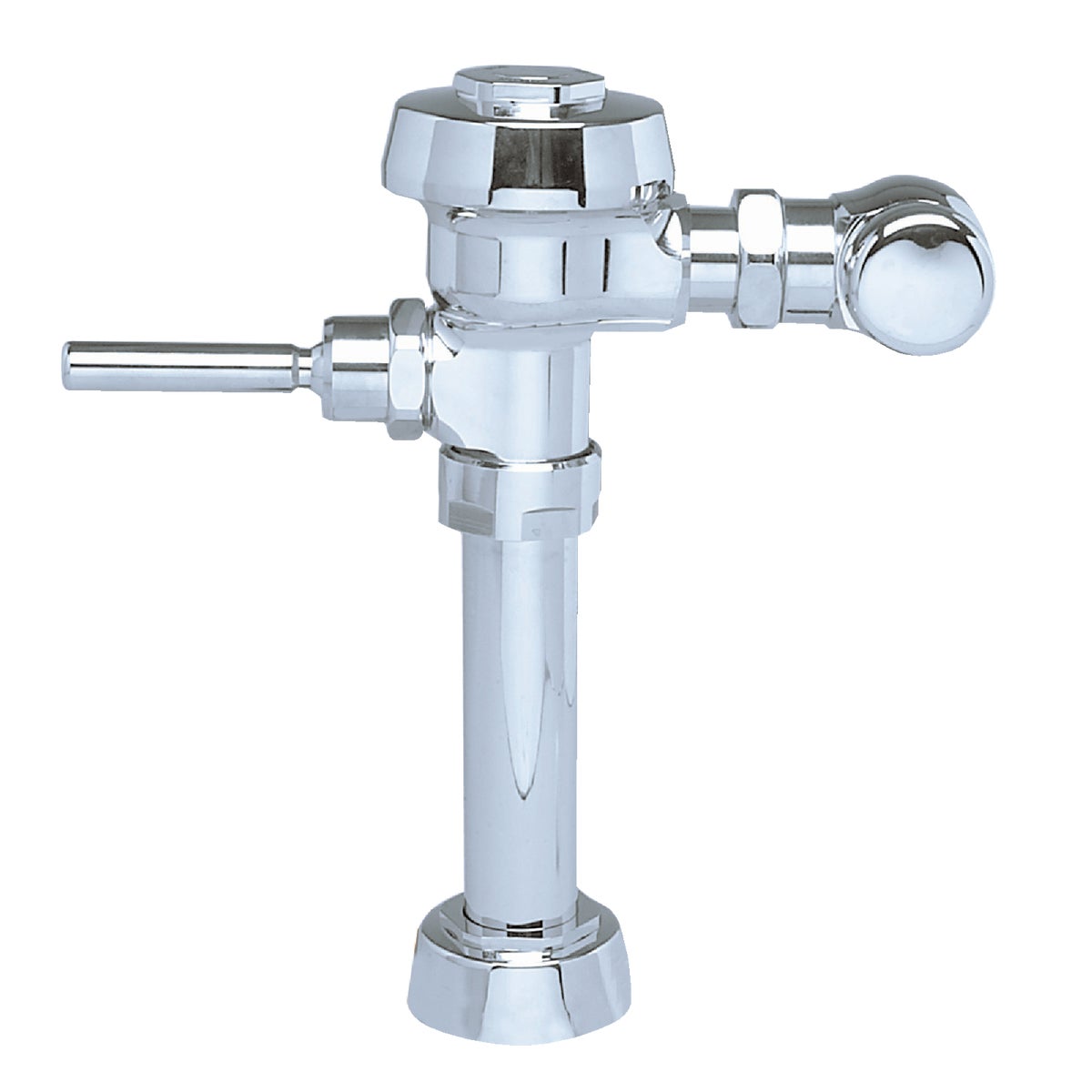

Closet Flush Valve
Exposed water closet flush-o-meter, for floor mounted or wall hung top spud bowls. Quiet, exposed, diaphragm type, chrome-plated closet flush-o-meter with the following features: Dual filtered bypass, diaphragm, handle packing, stop seat and vacuum breaker to be molded from Permex rubber compound for chloramine resistance, ADA compliant metal oscillating nonhold-open handle with a triple seal handle packing, 1" I.P.S. screwdriver Bak-Chek angle stop, free spinning vandal-resistant stop cap, adjustable tailpiece, high back pressure vacuum breaker flush connection with 1-piece bottom hex coupling nut, spud coupling, and flange for 1-1/2" top spud, sweat solder adapter with cover tube, and cast setscrew wall flange. Valve body, cover, tailpiece and control stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass, valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193. |
