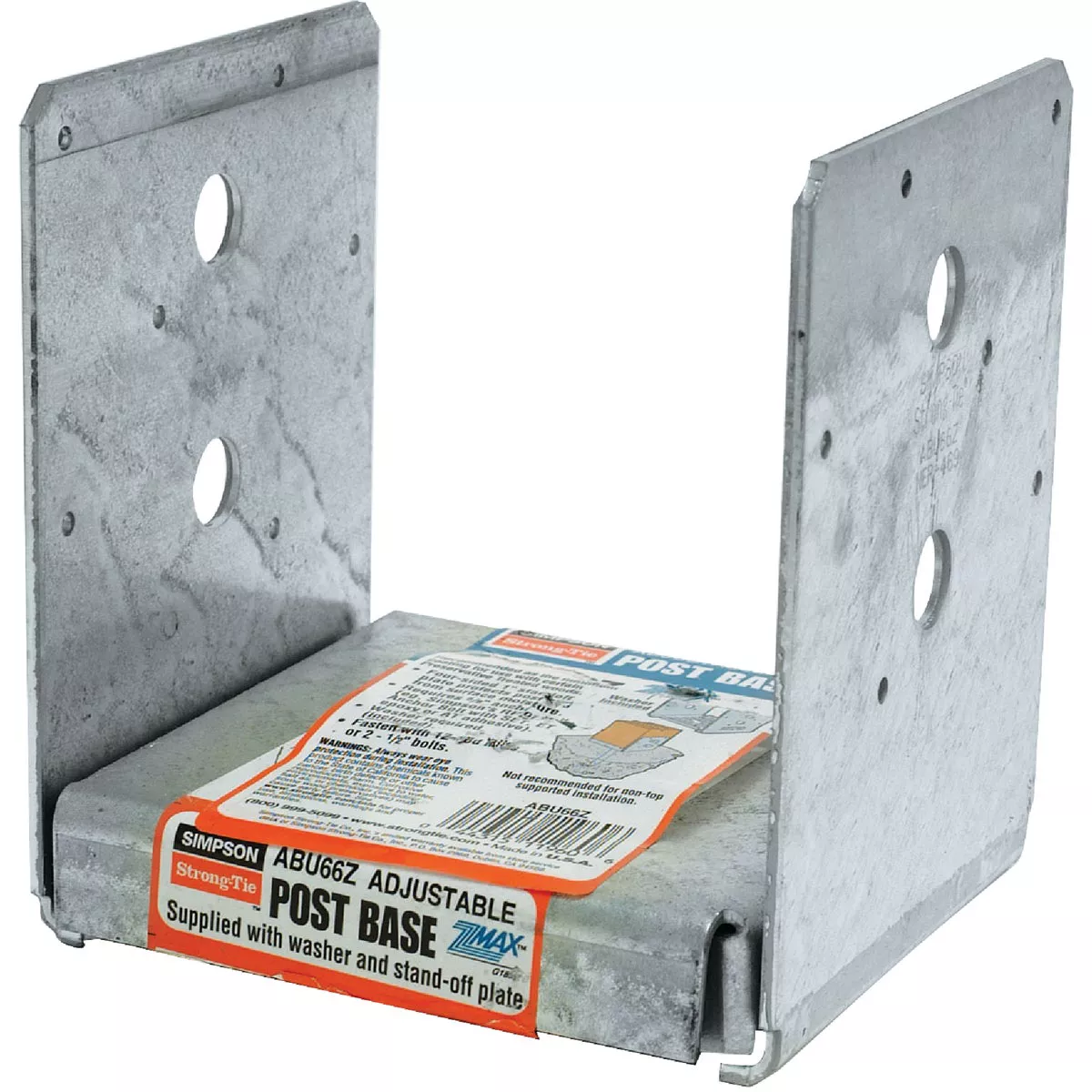

Simpson Strong-Tie 6 In. x 6 In. 12 ga Z-Max ABU Post Base
Model #ABU66ZItem #101552UPC 00044315119606
Tap to view
Product overview
The ABU is an adjustable post base which offers moisture protection and finished hardware appearance. Manufactured with ZMAX steel for enhanced corrosion resistance. These post bases feature a 1" stand-off height above concrete floors, code-required when supporting permanent structures that are exposed to the weather, or water splash, or in basements. They reduce the potential for decay at post and column ends. Post bases do not provide adequate resistance to prevent members from rotating about the base and are not recommended for non top-supported installations (such as fences or unbraced carports). Place the standoff base and then the post in the ABU and fasten using nails or Strong-Drive SD Connector screws or bolts.
- Slotted for adjustablility
- Install with nails or Strong-Drive SD Connector Screws
- ZMAX coating
- 6 In. x 6 In.
- 12ga base, 10ga strap
Specifications
| Material | Steel |
| Type | Standoff |
| Finish | Z-Max |
| Size | 6 In. x 6 In. |
| Gauge | 12ga base, 10ga strap |
| Install With | 12-16d fastner&(2) 1/2 In. dia mach bolt |
| Dimensions | 5-1/2 In. W x 5 In. L x 6-1/16 In. H |
| Uplift | 2300 Lb. |
| Download | 12,000 Lb. |
| Brand | Simpson Strong-Tie |
| UPC | 00044315119606 |
| Product type | Post Base |
