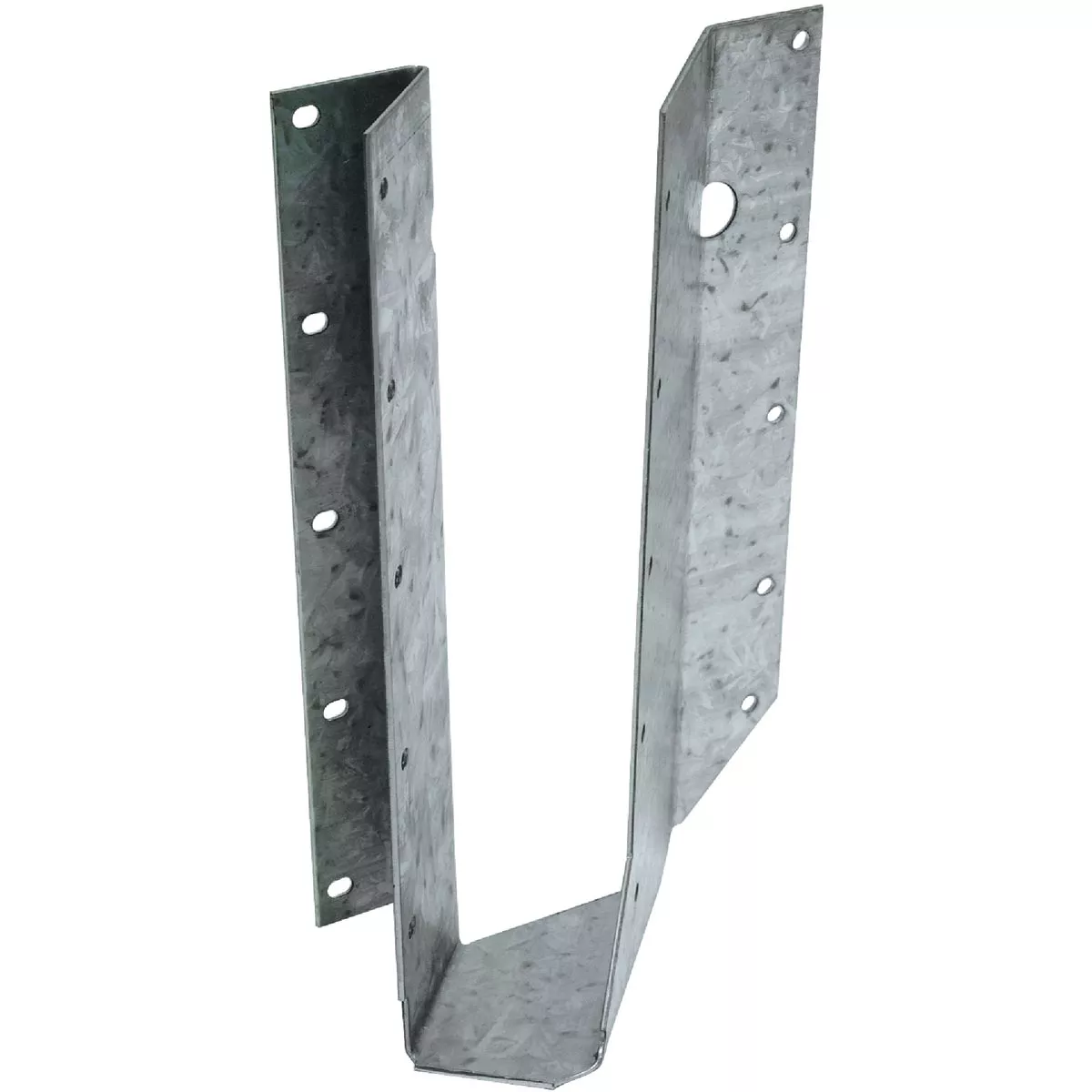

Simpson Strong-Tie ZMAX 2X10 Left Skewed Joist Hanger
Model #SUL210ZItem #101696 UPC 00707392523406
Tap to view
Product overview
This series of hangers are skewed 45 deg. left. Angled nail slots direct nails for proper installation. The joist end may be square or bevel cut.
- Skewed 45 degrees left
- Encapsulates top flange of the I-joist
- 2 In. x 10 In. or 2 In. x 12 In.
- ZMAX
Specifications
| Material | Steel |
| Type | Left Skewed 45 Deg |
| Gauge | 16 |
| Joist Size | 2 In. x 10 In. or 2 In. x 12 In. |
| Width (In.) | 1.5625 |
| Height (In.) | 8.125 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392523406 |
| Product type | Joist Hanger |
