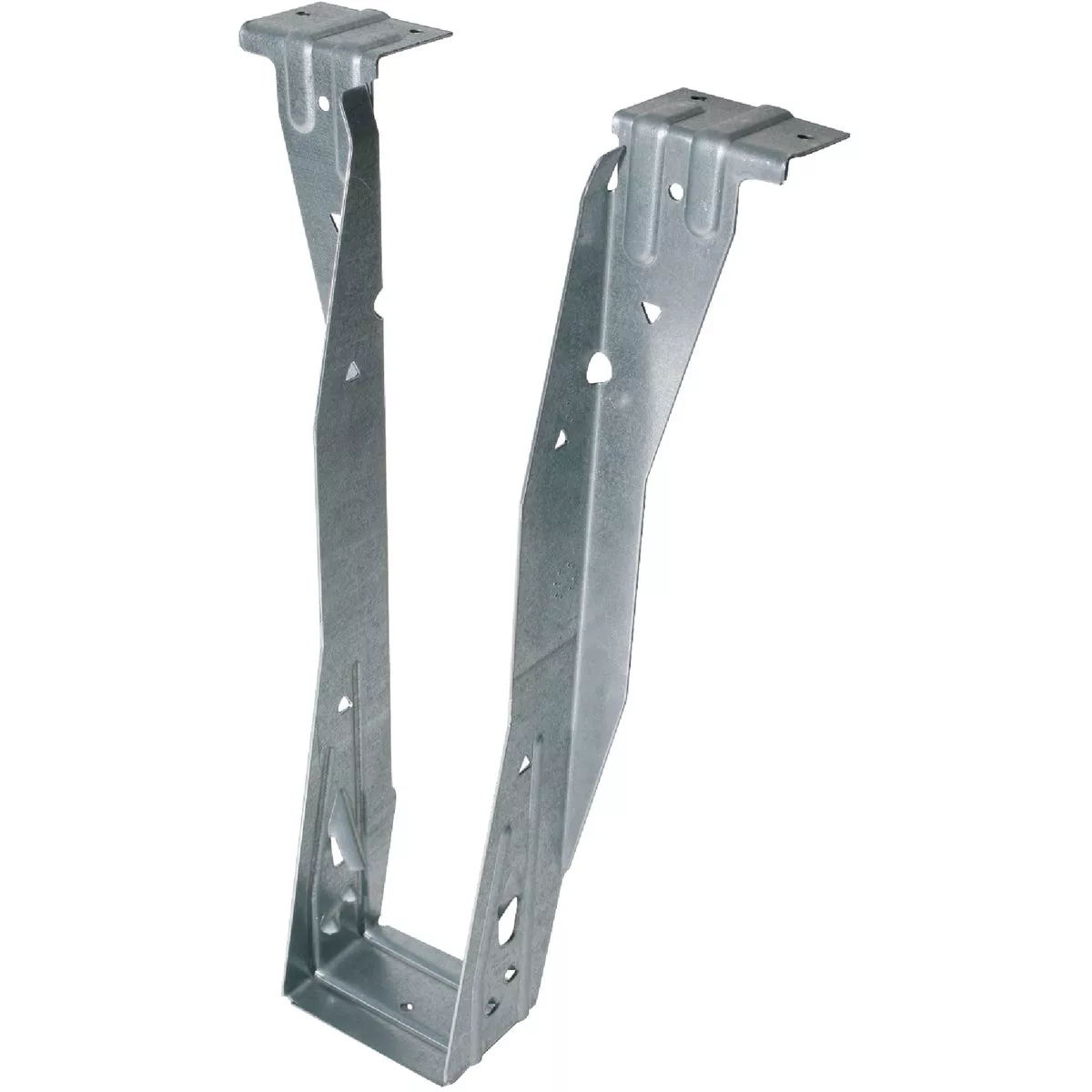

Simpson Strong-Tie 2-5/8 In. x 11-13/16 In. Galvanized Top Flange I-Joist Hanger
Model #ITS2.56/11.88Item #106194 UPC 00707392107309
Tap to view
Product overview
The innovative ITS sets a new standard for engineered wood top flange hangers. The ITS installs faster and uses fewer nails than any other EWP top flange hanger. The new Strong-Grip seat and Funnel Flange features allow standard joist installation without requiring joist nails, resulting in the lowest installed cost. The Strong-Grip seat firmly secures I-joists with flange thicknesses from 1-1/8" to 1-1/2". The ITS design maintains superior allowable download capacities equal to or greater than the ITT for Douglas Fir and all SCL headers. 18-gauge galvanized steel.
- Top flange hanger
- 2-1/2"x11-7/8" W x 2.55"x11-7/8" H
- Galvanized
Specifications
| Material | Steel |
| Type | Top Flange |
| Gauge | 18 |
| Joist Size | 2-1/2x11-7/8 W x 2.55x11-7/8 H |
| Width (In.) | 2.625 |
| Height (In.) | 11.8125 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392107309 |
| Product type | Joist Hanger |
