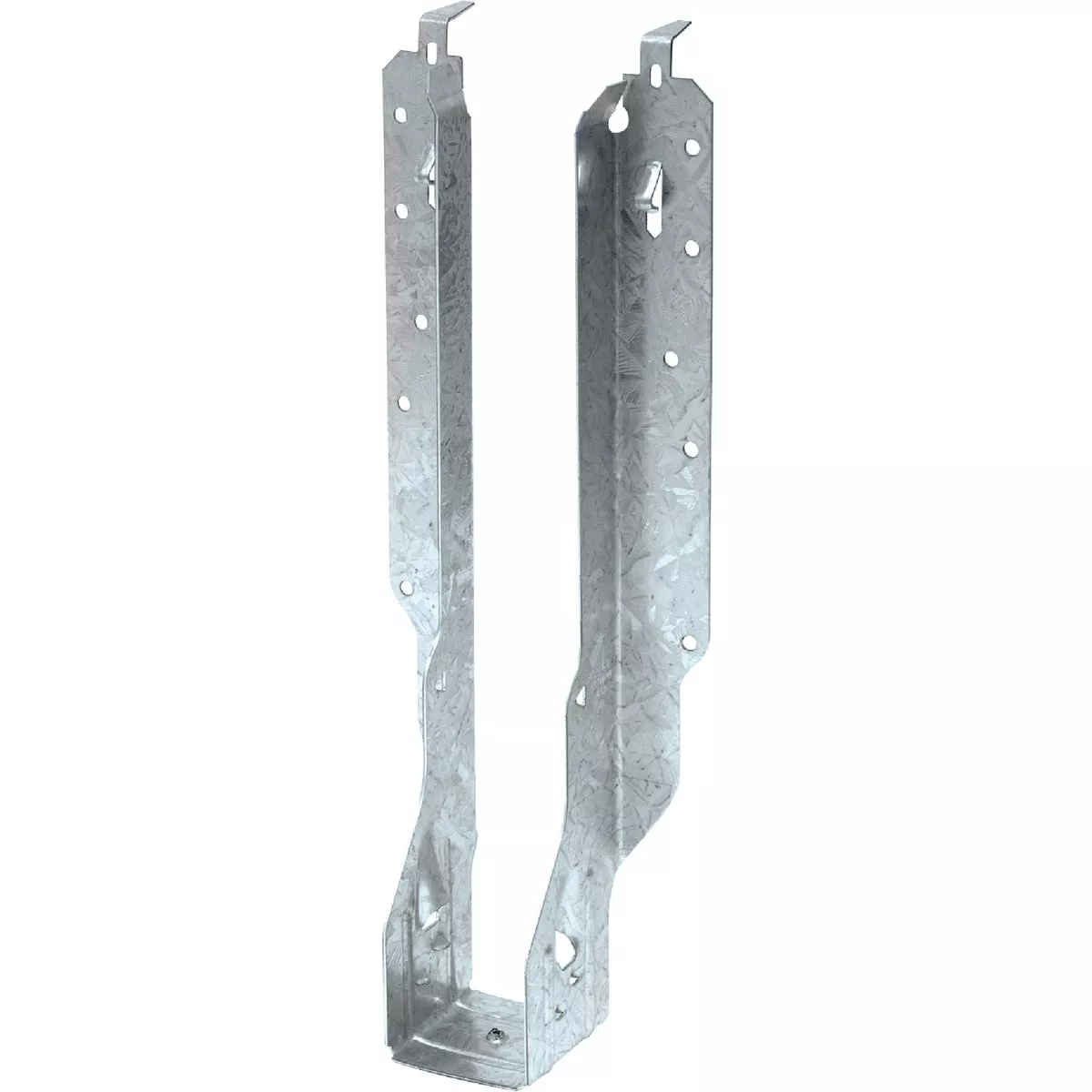

Simpson Strong-Tie Galvanized 2-1/8 In. x 11-7/8 In. Face Mount I-Joist Hanger
Model #IUS2.06/11.88Item #106236UPC 00707392742807
Tap to view
Product overview
The IUS is a hybrid hanger that incorporates the advantages of the face mount and top mount hanger. Installation is fast with the Strong-Grip seat, easy-to-reach face nail locations, and self-jigging locator tabs. The improved IUS is now fully compatible with shallow flange I-joists. Locator tabs are not structural. They may be bent back to adjust for hanger placement. I-joists with web stiffeners or rectangular sections can be used with the installation of 2-10d x 1-1/2" joist nails into the optional triangle holes. 18-gauge galvanized steel.
- Hybrid face mount/top mount hanger
- Strong-Grip seat
- Bendable locator tabs
- 2"x11-7/8" W x 2-1/16"x11-7/8" H
- Galvanized
Specifications
| Material | Steel |
| Type | I-Joist |
| Finish | Galvanized |
| Size | 2-1/8\ W x 11-7/8\ H x 2\ Base |
| Gauge | 18 |
| Install With | 10-10d Face |
| Joist Size | 2\x11-7/8\ W x 2-1/16\x11-7/8\ H |
| Width (In.) | 2.125 |
| Height (In.) | 11.875 |
| Base (In.) | 2 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392742807 |
| Product type | Joist Hanger |
