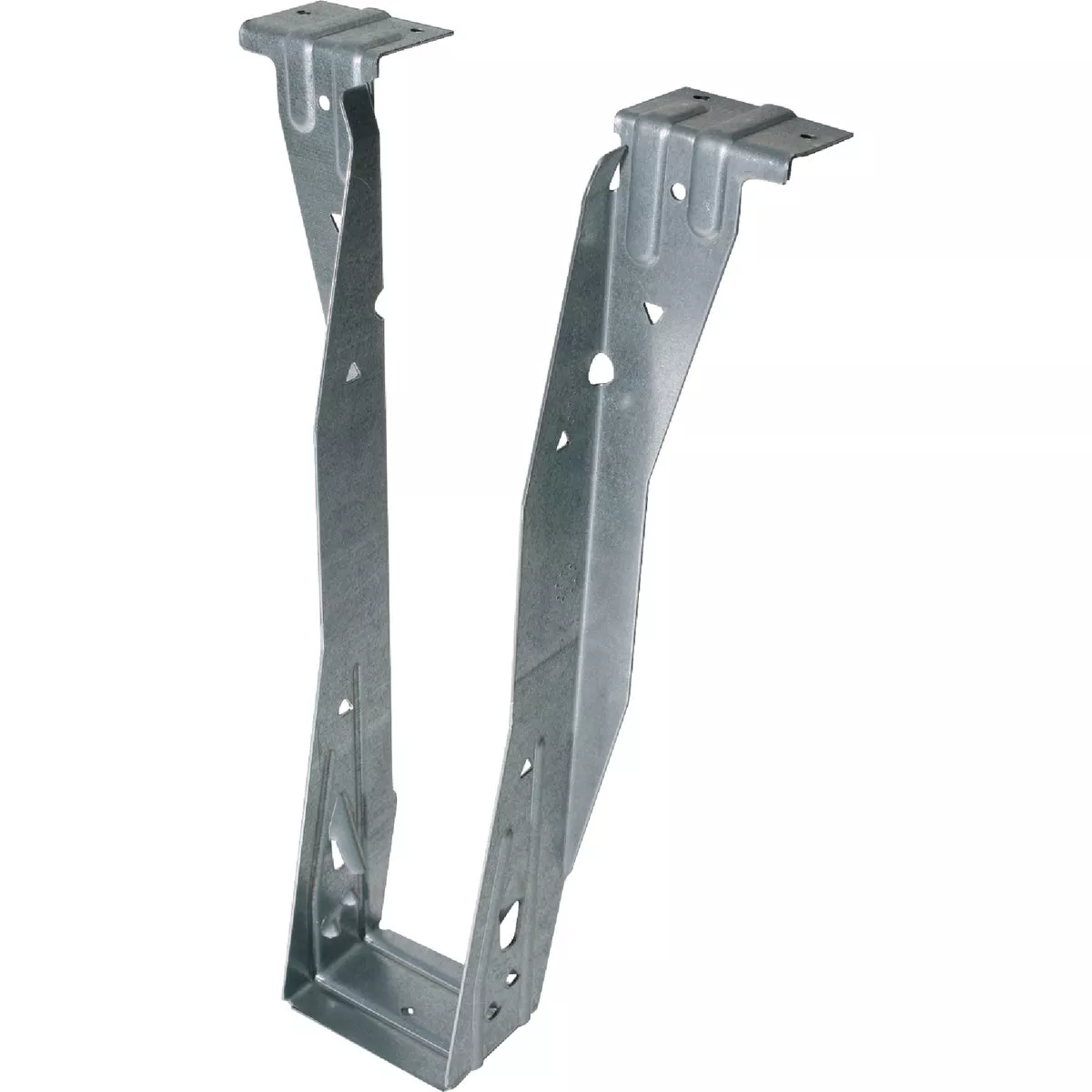

Simpson Strong-Tie Galvanized 2-1/8 In. x 11-13/16 In. Top Flange I-Joist Hanger
Model #ITS2.06/9.5Item #107164UPC 00707392897101
Tap to view
Product overview
The innovative ITS sets a new standard for engineered wood top flange hangers. The ITS installs faster and uses fewer nails than any other EWP top flange hanger. The new Strong-Grip seat and Funnel Flange features allow standard joist installation without requiring joist nails, resulting in the lowest installed cost. The Strong-Grip seat firmly secures I-joists with flange thicknesses from 1-1/8" to 1-1/2". The ITS design maintains superior allowable download capacities equal to or greater than the ITT for Douglas Fir and all SCL headers. 18-gauge galvanized steel.
- Top flange hanger
- 2"x9-1/2" W x 2-1/16"x9-1/2"H
- Galvanized
Product manuals and information
Specifications
| Material | Steel |
| Type | Top Flange |
| Finish | Galvanized |
| Size | 2-1/8\ W x 11-13/16\ H x 2\ Base |
| Gauge | 18 |
| Install With | 4-10d top, 2-10d face, 4-10d joist |
| Joist Size | 2\x9-1/2\ W x 2-1/16\x9-1/2\H |
| Width (In.) | 2.125 |
| Height (In.) | 11.8125 |
| Base (In.) | 2 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392897101 |
| Product type | Joist Hanger |
