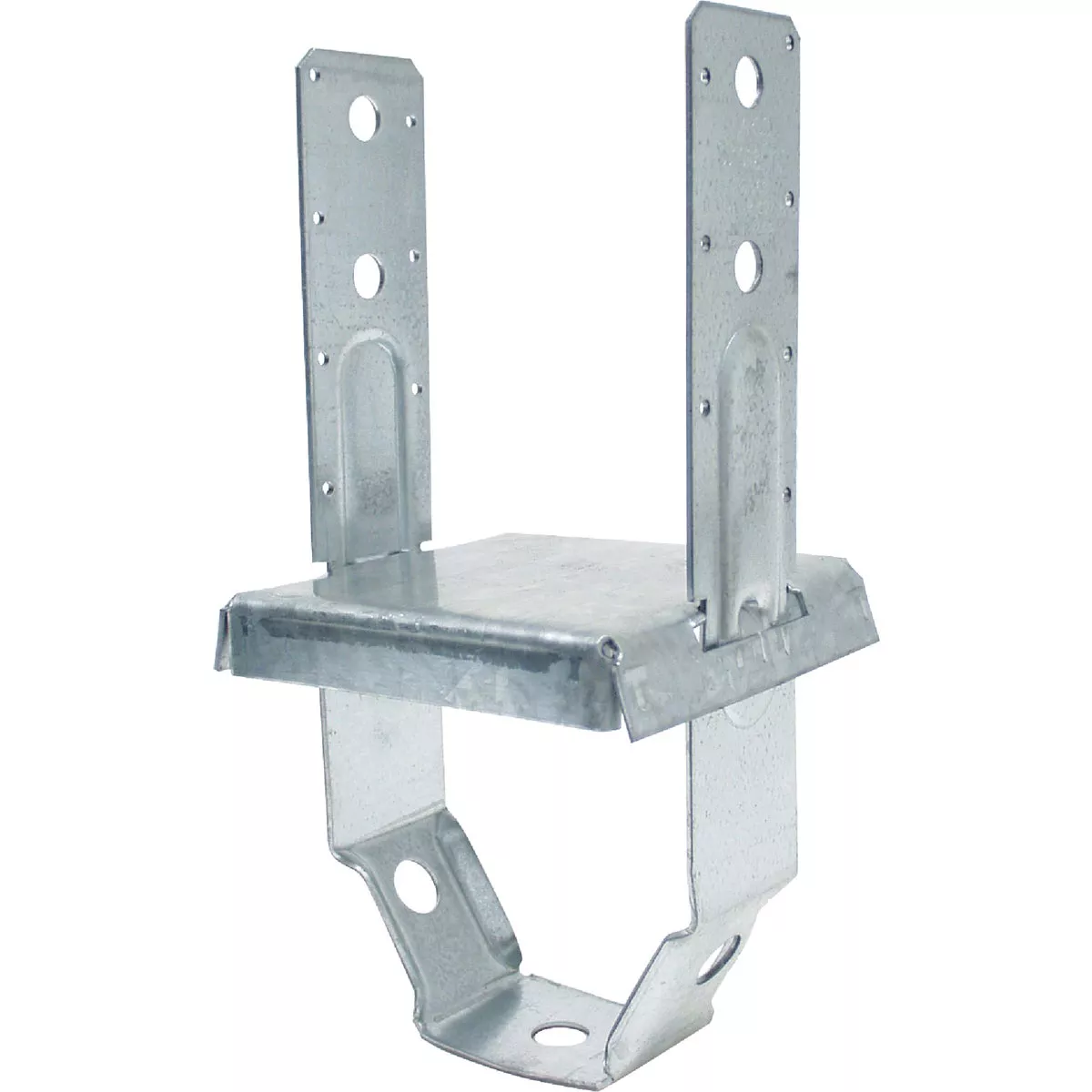

Simpson Strong-Tie 6 In. x 6 In. 12 ga base Z-Max Post Base
Model #PBS66Item #107397UPC 00044315329401
Tap to view
Product overview
Embed into wet concrete up to the bottom of the 1" standoff base plate. A 2" minimum side cover is required to obtain the full load. Holes in the bottom of the straps allow for free concrete flow. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or carports). Galvanized steel. 12-gauge base. Some sizes available with ZMAX coating. Install with 14-16d commons and (2) 1/2" diameter machine bolts.
- Holes in bottom for free concrete flow
- 6 In. x 6 In.
- Z-Max
Product manuals and information
Specifications
| Material | Steel |
| Type | Standoff |
| Finish | Z-Max |
| Size | 6 In. x 6 In. |
| Gauge | 12ga base, 14ga strap |
| Install With | 14-16d common & (2) 1/2\ dia mach bolt |
| Dimensions | 5-1/2 In. W x 5-3/8 In. L x 6-1/2 In. H |
| Uplift | 2165 Lb. Non-Cracked, 2165 Lb. Cracked |
| Download | 14420 Lb. |
| Brand | Simpson Strong-Tie |
| UPC | 00044315329401 |
| Product type | Post Base |
