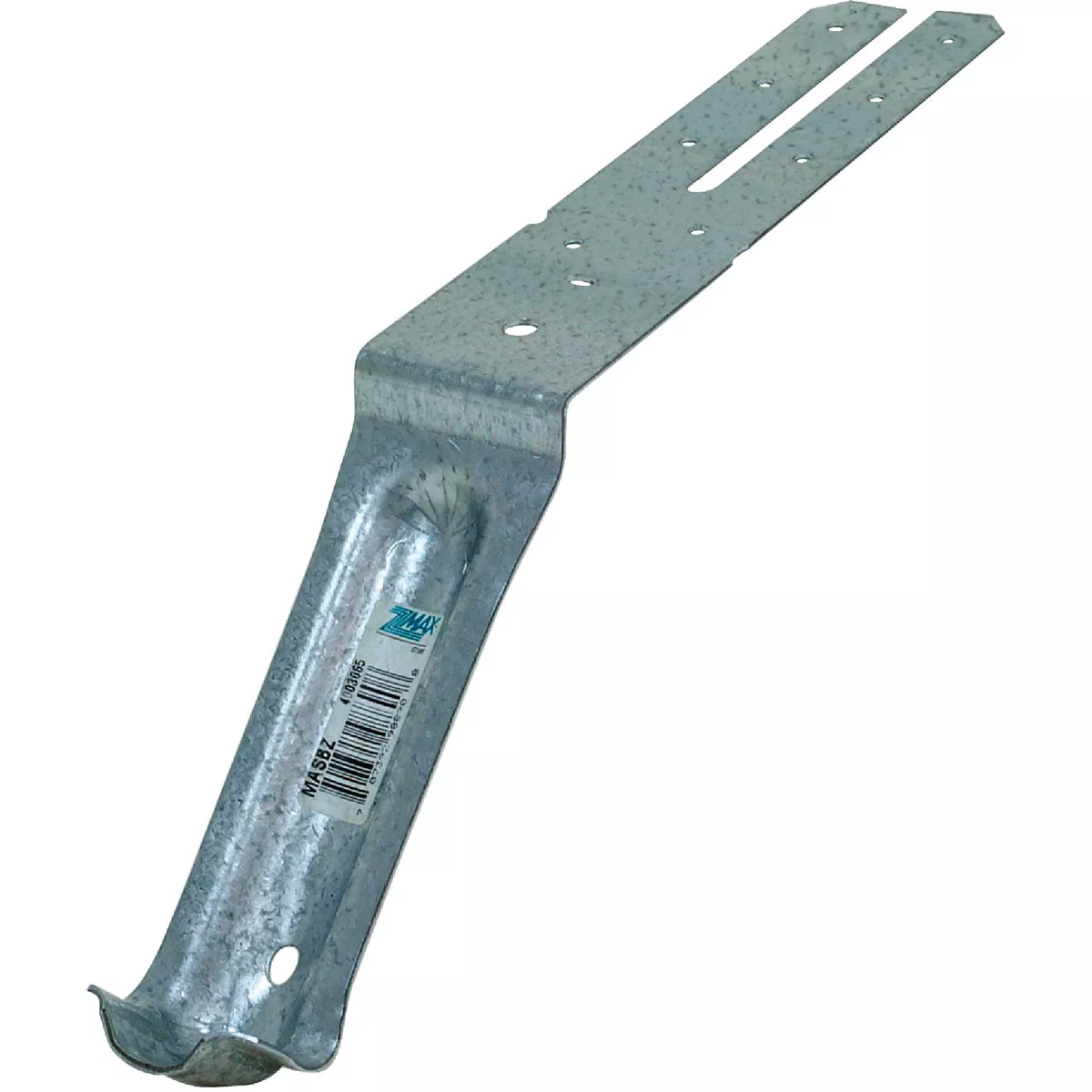

Simpson Strong-Tie ZMAX 2 In. x 4 In. 16 ga Mudsill Foundation Anchor
Model #MASBZItem #108500 UPC 00707392988908
Tap to view
Product overview
The different models of mudsill anchors are designed for specific applications: MASB is used in concrete masonry units. MASB: Fill CMU cell with concrete grout first, then place MASB into the grouted cell and adjust into position. Attach mudsill to anchor only after the concrete grout cures. CMU shall have a minimum 1500 P.S.I. The MASB mudsill anchors were tested in standard 8" CMU. 2x4 or 6x8; install with (8) 10d x 1-1/2" fasteners. 16-gauge. ZMAX coating.
- Alternative to anchor bolt
- Provides installation flexibility
- Anchors mudsill to concrete block, poured walls, or slab foundations
- ZMAX coating
Specifications
| Material | Steel |
| Size | 2 In. x 4 In. or 6 In. x 8 In. |
| Gauge | 16 ga |
| Brand | Simpson Strong-Tie |
| UPC | 00707392988908 |
| Product type | Foundation Anchor |
