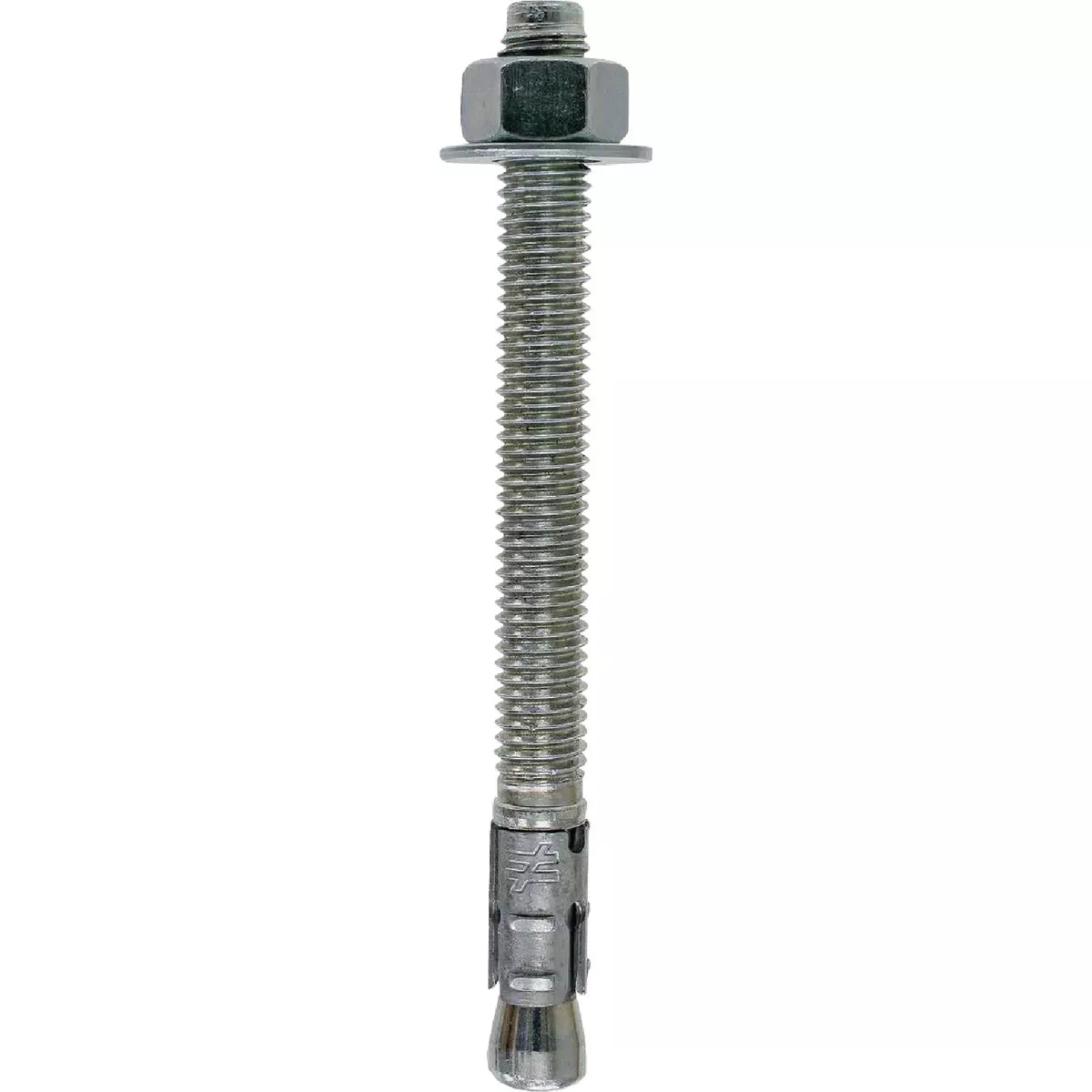

Simpson Strong-Tie Strong-Bolt 2 3/8 In. x 3 -3/4 In. Mechanically Galvanized Wedge Anchor (15-Count)
Model #STB2-37334C15Item #203604UPC 00707392013181
Tap to view
Product overview
Code listed for cracked and uncracked concrete, and masonry applications, the Simpson Strong-Tie Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in zinc-plated carbon steel, mechanically galvanized carbon steel, and Type 304 and Type 316 stainless steel.
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Tested per ACI355.2 and AC193
- Made from carbon steel
Specifications
| Length | 3-3/4 |
| Color | Silver |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 3/8 |
| Head Type | Chamfered |
| Brand | Simpson Strong-Tie |
| UPC | 00707392013181 |
| Product type | Concrete & Masonry Anchors |
