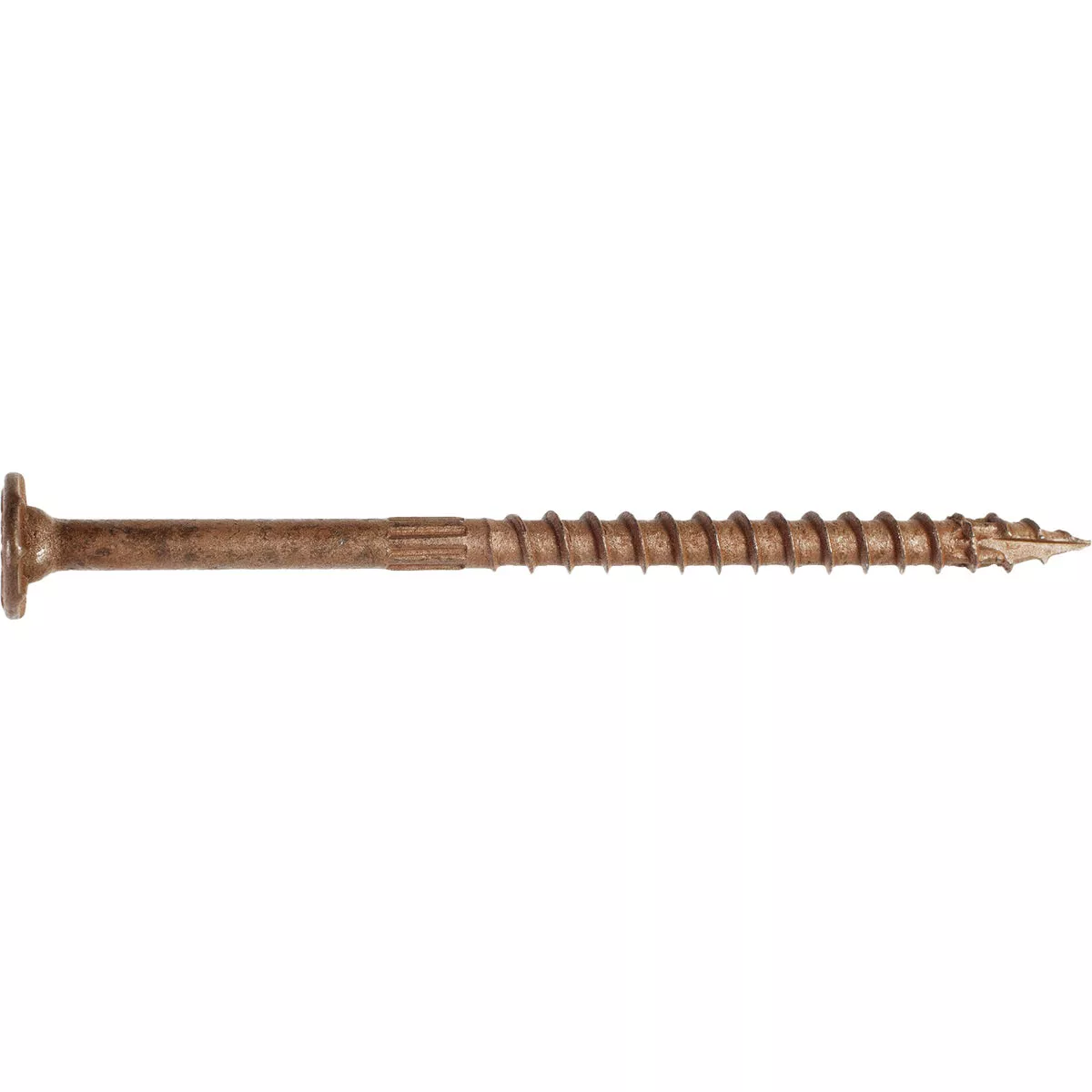

Simpson Strong-Tie Strong-Drive SDWS Quik Guard 0.160 In. x 3-1/2 In. T25 Framing Screw, Tan (750 Ct.)
Model #SDWS16312QItem #220096UPC 00707392015284
Tap to view
Product overview
The SDWS Framing screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is superior to nails in holding power and pull-out resistance. It is code listed in IAPMO UES ER-192 and meets 2018 and 2021 IRC and IBC code requirements for most common wood framing applications. The screw has a SawTooth point that makes for fast installations with reduced torque without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the 6-lobe recess tightly for more secure drive control. Available in 2 1/2", 3", 3 1/2" and 4" lengths for a variety of uses.

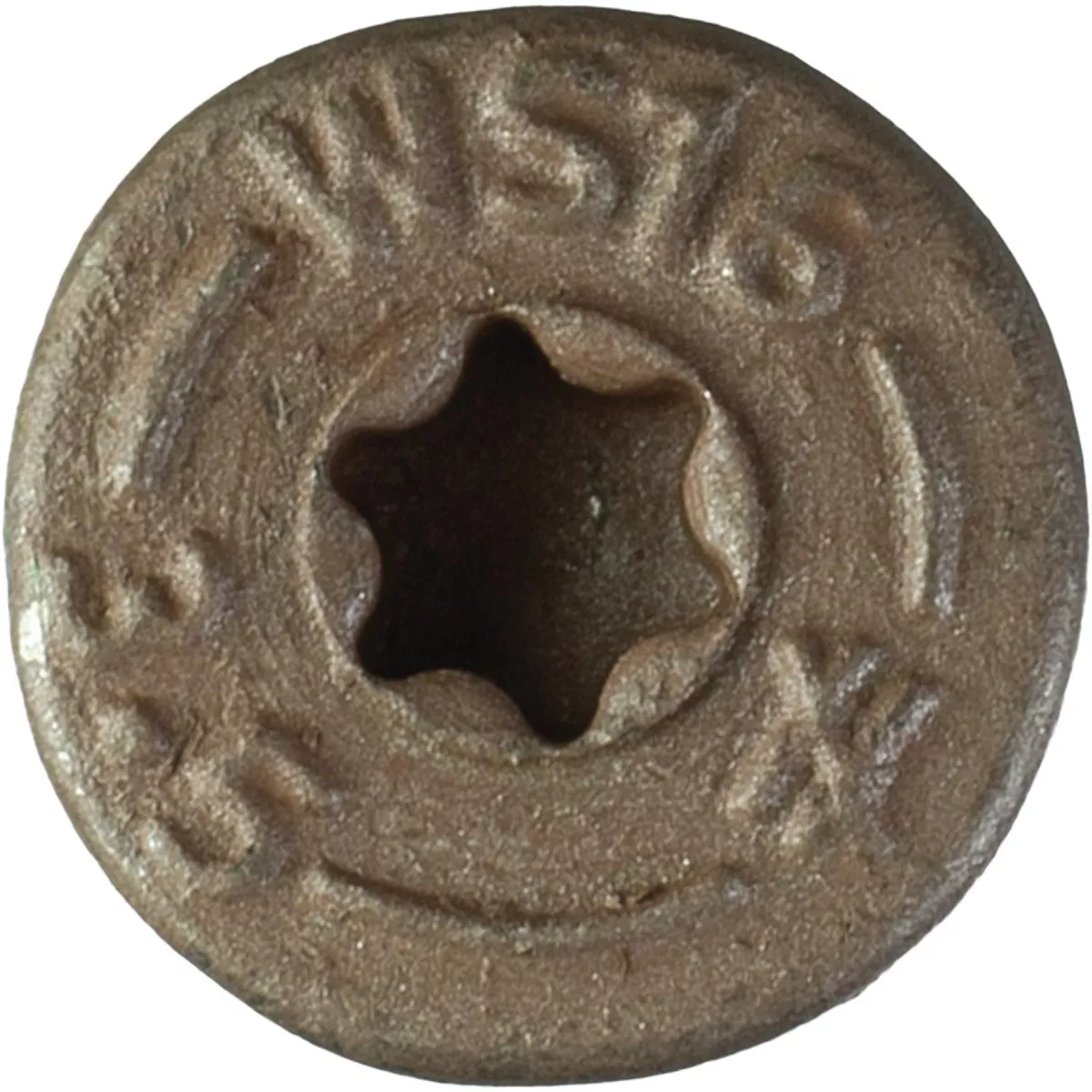

- Washer head with underhead box nibs provides increased bearing in structural applications and provides clean and easy countersinking
- SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
- The 6-lobe drive provides positive bit engagement resulting in easier installations and longer bit life
- Quik Guard coating provides protection in indoor and outdoor applications
- Multipurpose wood-to-wood and engineered-wood applications, including framing, indoor/outdoor projects
Specifications
| Length | 3-1/2 In. |
| Color | Tan |
| Drive Type | T25 |
| Head Type | Low Profile |
| Thread Diameter | 0.160 In. |
| Brand | Simpson Strong-Tie |
| UPC | 00707392015284 |
| Product type | Framing Screws |
