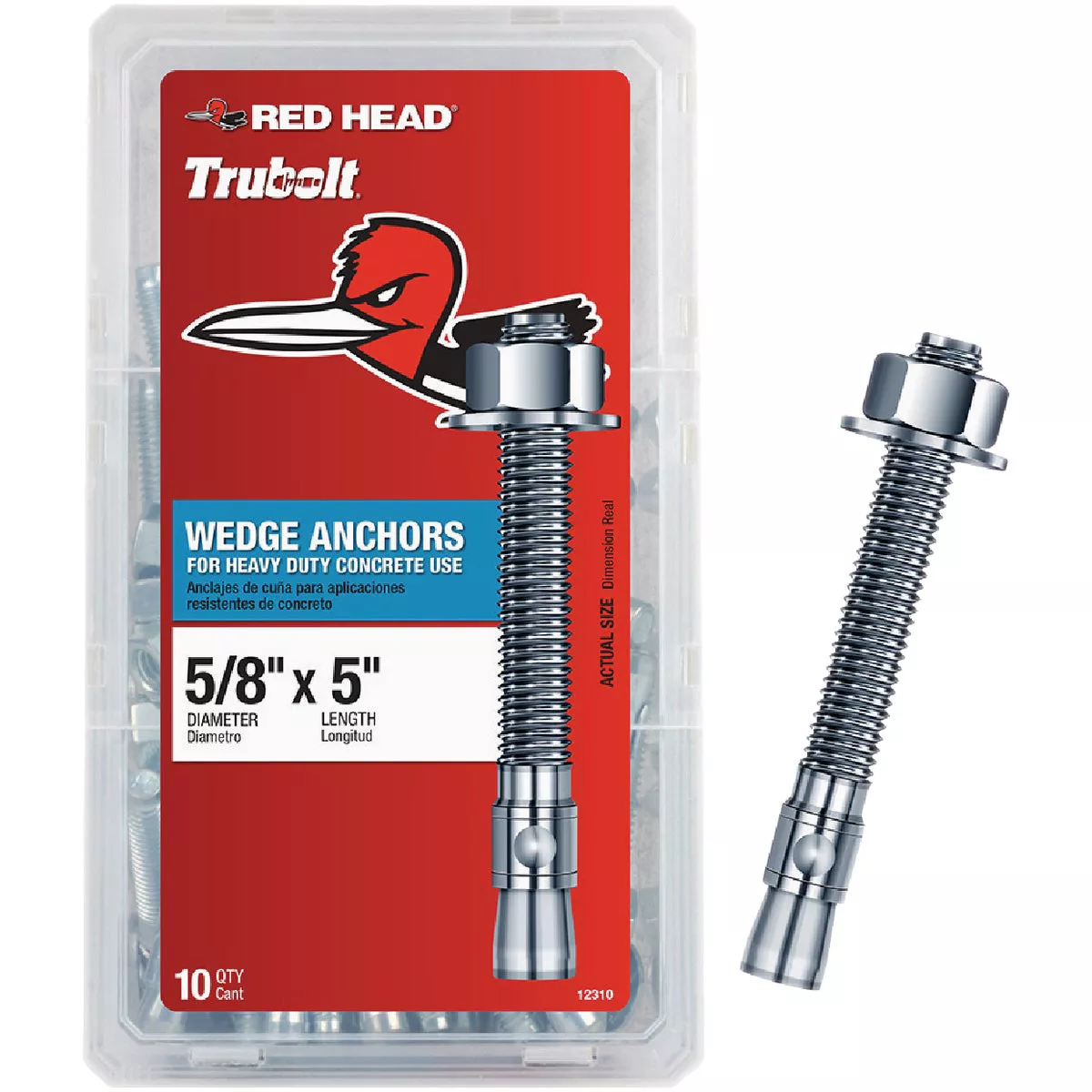

Red Head 5/8 In. x 5 In. Wedge Anchor (10 Ct.)
Model #12310Item #232641UPC 00092097123106
Tap to view
Product overview

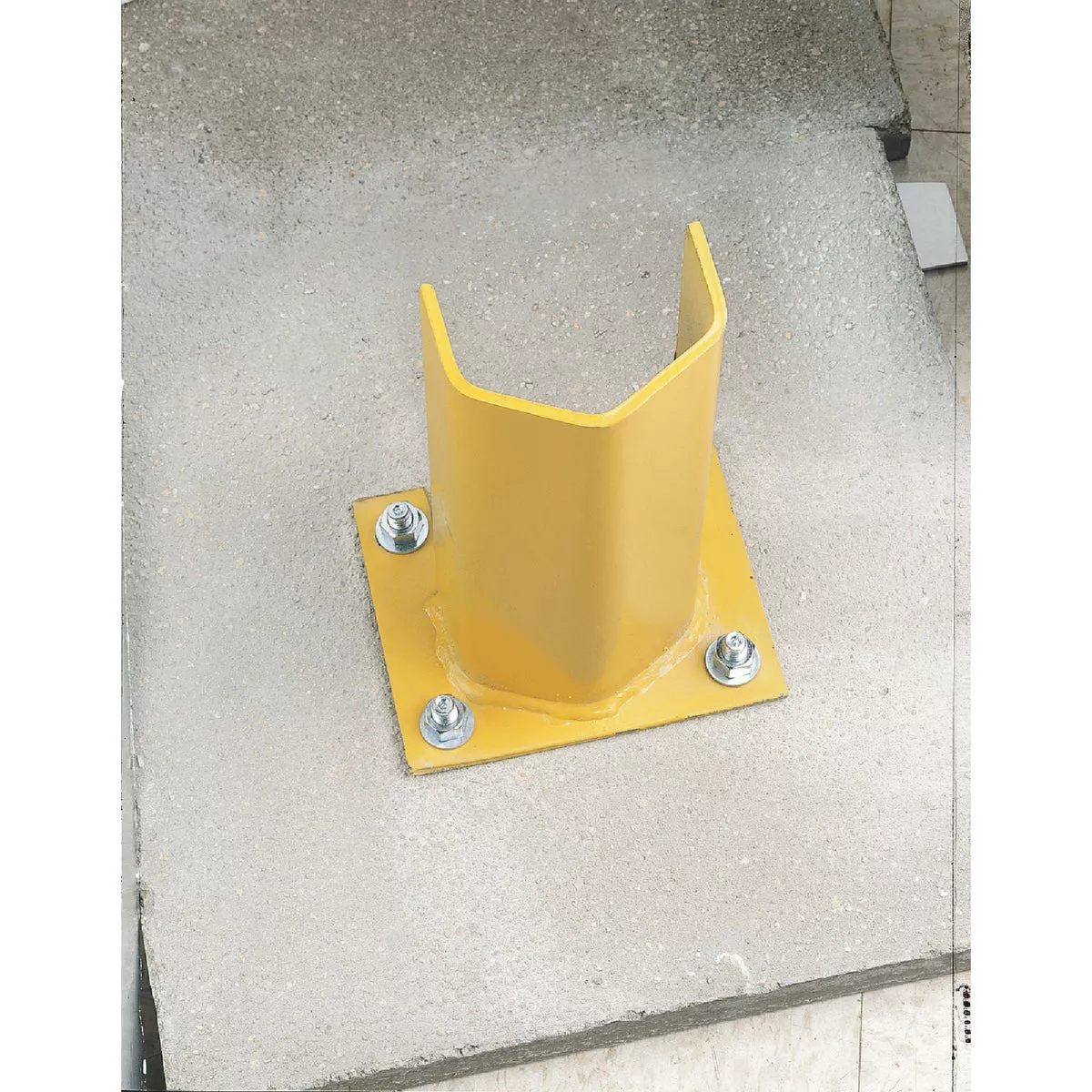

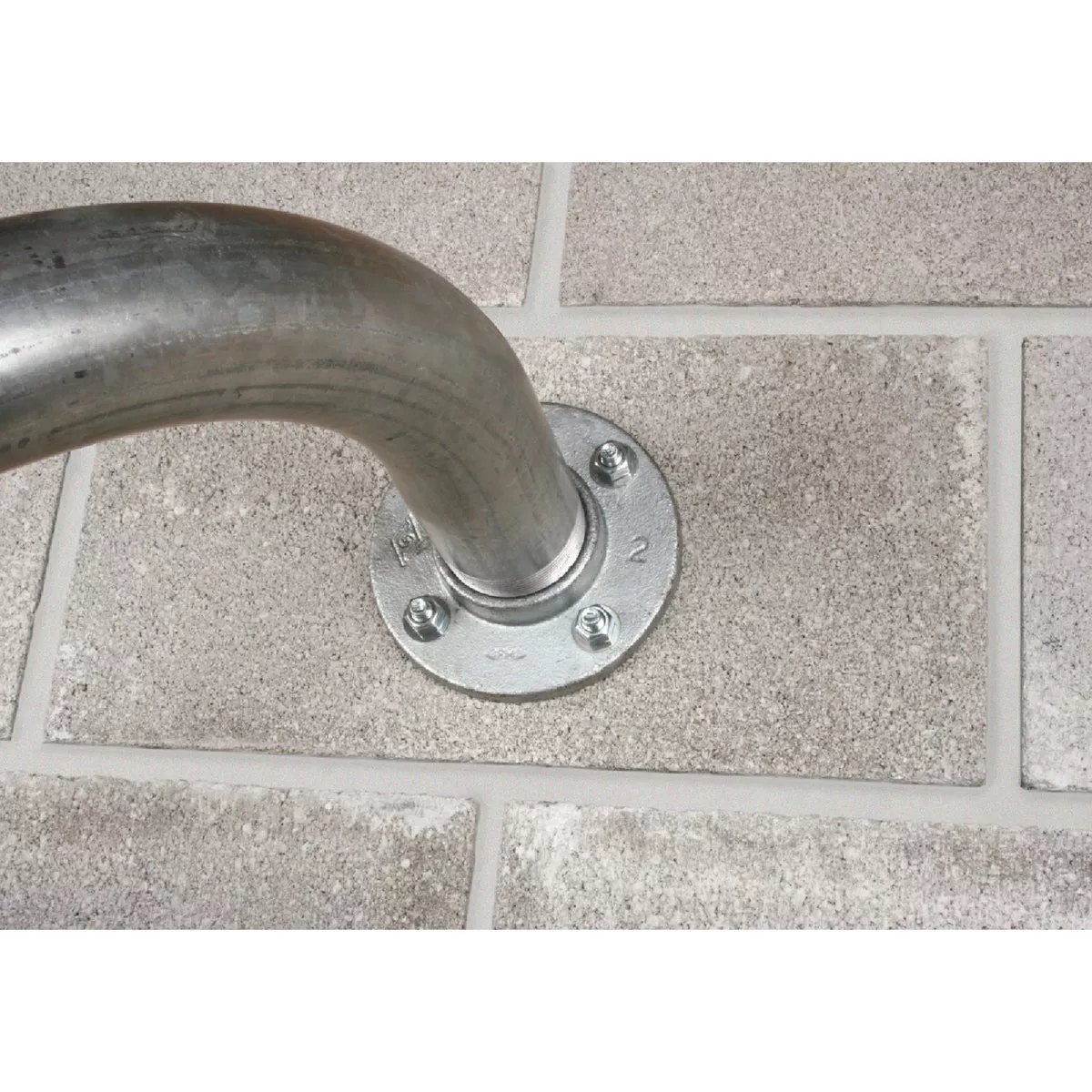

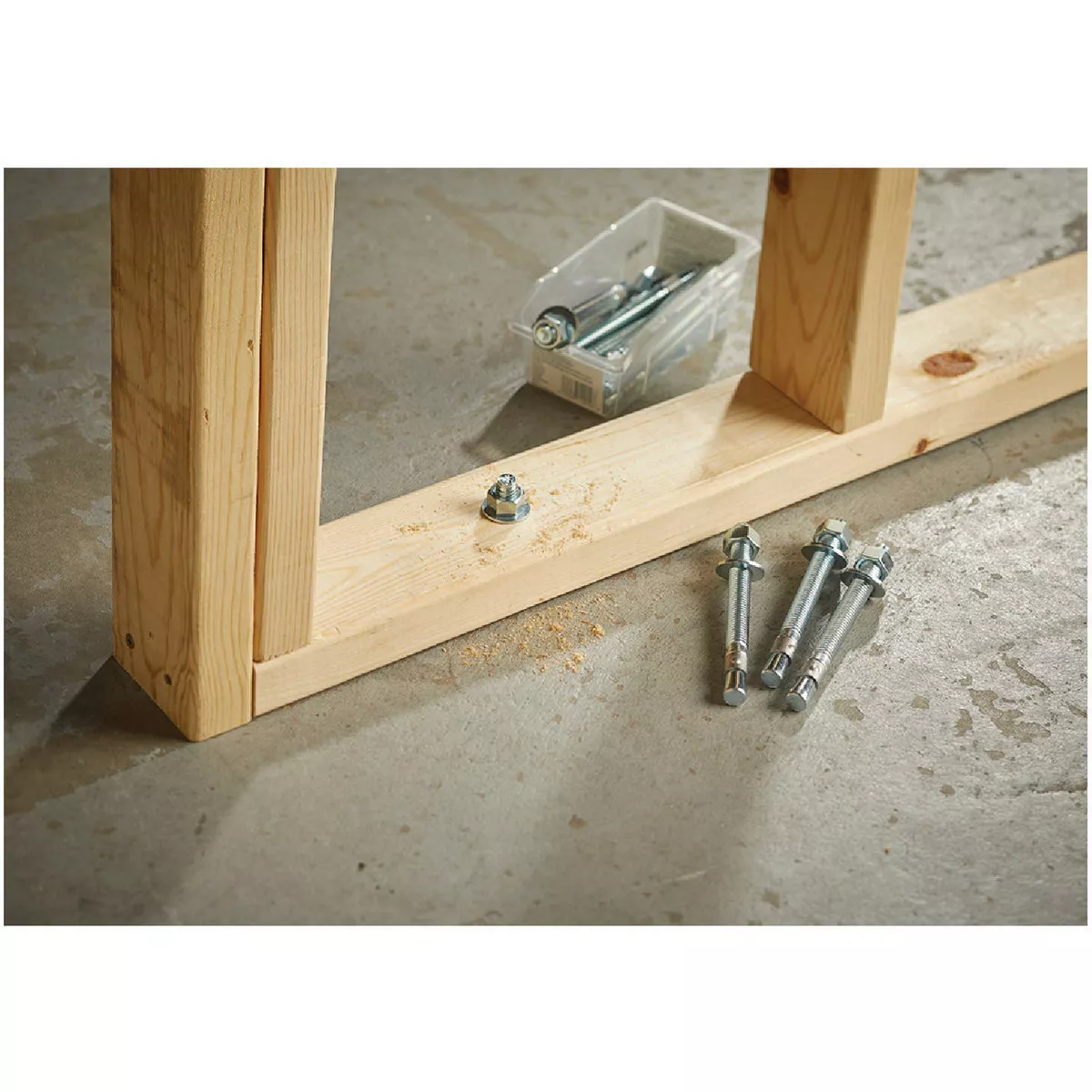

Red Head Wedge anchors are heavy-duty anchors designed for fastening into solid concrete. Ideal for attaching 2x4s, sill plates and electrical equipment. Also good for attaching structural supports to concrete, tilt-up construction, highway rails and posts, electrical, HVAC and plumbing systems, metal doors and window frames.
- Trubolt Wedge anchors feature a stainless steel expansion clip, threaded stud body, nut and washer
- Versatile fully threaded design is standard on sizes up to 3/4" diameter and 10" length
- 360 degree contact with concrete assures full expansion for reliable working loads
- Can be installed through the work fixture, eliminating hole spotting
- Inspectable torque values, indicating proper installation
- Use carbide tipped hammer drill bits made in accordance with ANSI B212.15-1994 to install anchors
- Anchors are tested to ACI 355.2 and ICC-ES AC193
- Non bottom-bearing, may be used in hole depth exceeding anchor length
- Standard carbon and stainless steel anchors
Product manuals and information
Specifications
| Length | 5 In. |
| Material | Steel |
| Finish | Zinc |
| Diameter | 5/8 In. |
| Head Type | Hex |
| Brand | Red Head |
| UPC | 00092097123106 |
| Product type | Concrete & Masonry Anchors |
