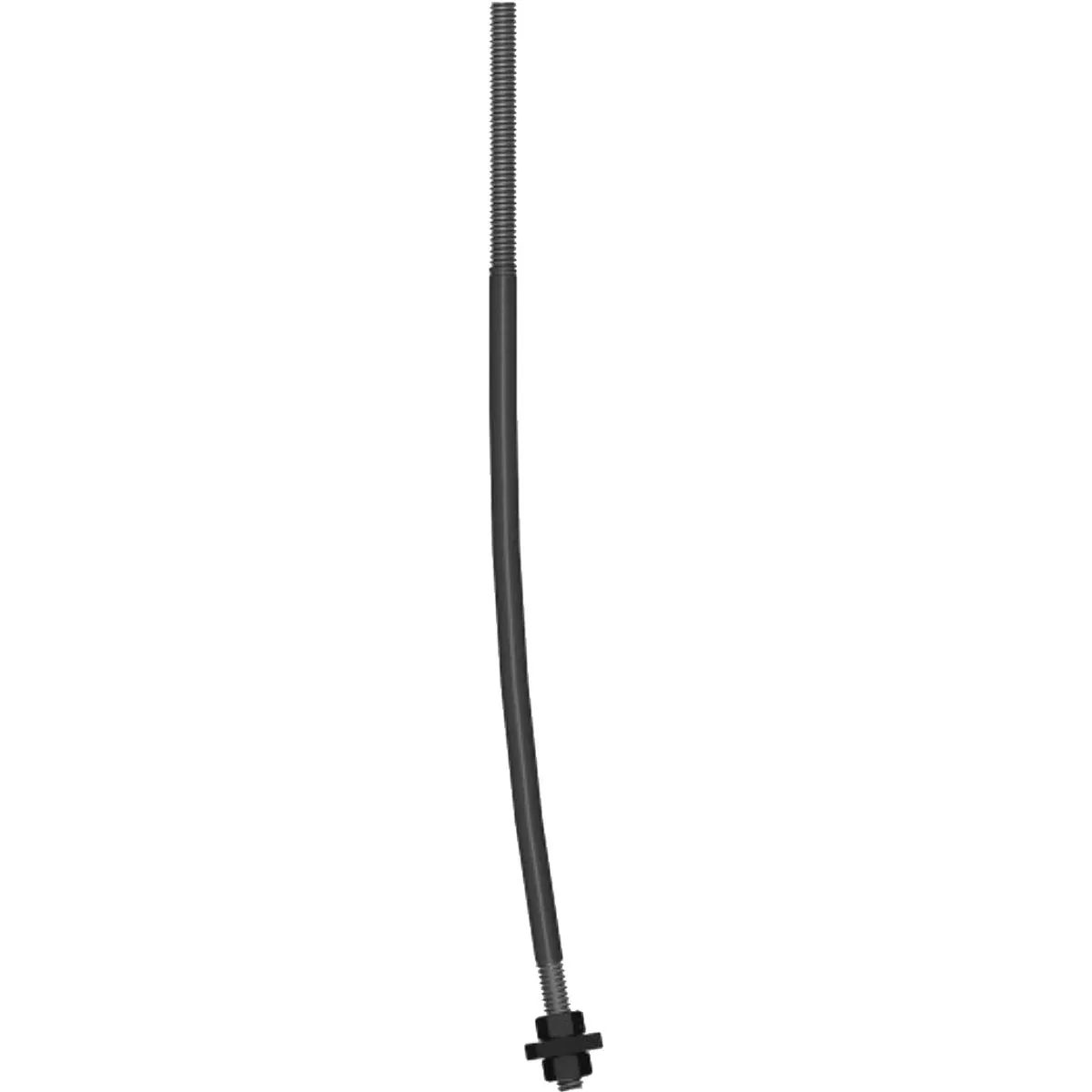

Simpson Strong-Tie SB 5/8 In. Dia. x 24 In. Anchor Bolt
Model #SB5/8X24Item #241409UPC 00707392738701
Tap to view
Product overview
The SB anchor bolt is a high-capacity solution for holdowns that require larger diameter anchors. The smooth transition angle positions the head of the anchor in the optimum location in the concrete stem wall to maximize performance. The SB 5/8 x 24 anchor bolt offers a load-tested anchorage solution that exceeds the capacity of all of our holdowns that call for a 5/8 In. Dia. anchor.
- Identification on the bolt head showing embedment angle and model
- Sweep geometry to optimize position in form
- Rolled thread for higher tensile capacity
- Hex nuts and plate washer fixed in position
- Material: ASTM F-1554, Grade 36 (uncoated steel)
Specifications
| Length | 24 In. |
| Material | Steel |
| Diameter | 5/8 In. |
| Brand | Simpson Strong-Tie |
| UPC | 00707392738701 |
| Product type | Anchor Bolt |
