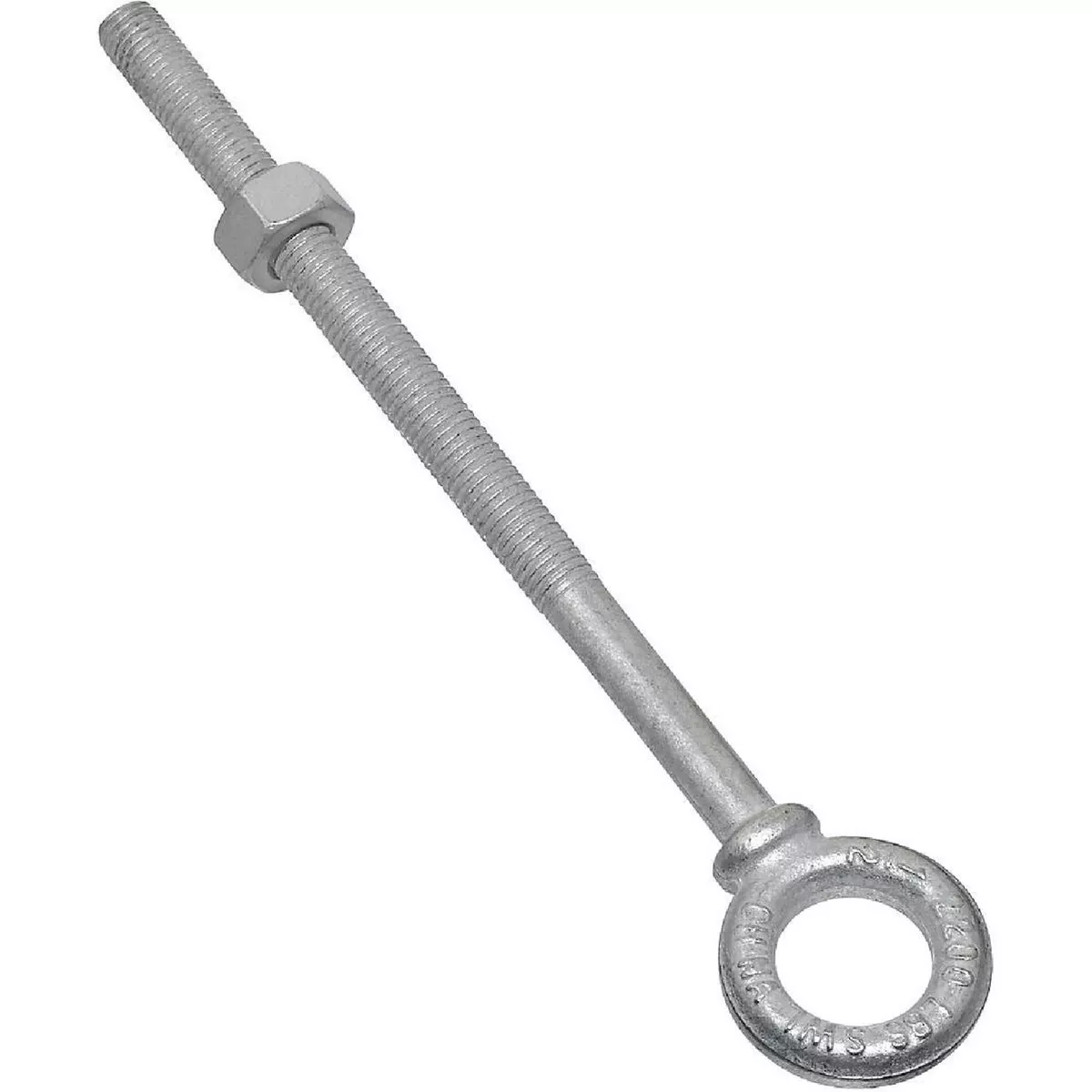

National 1/2 In. x 8 In. Galvanized Eye Bolt
Model #N245175Item #246387UPC 00038613245174
Tap to view
Product overview
Catalog model No. 3260BC series eye bolts. Forged galvanized. Designed with shoulder so that it can be tightened in place. Bar code label is color coded to identify wire size. Pintle punched for 5/16 In. (1/2 In. size) or 3/8 In. (5/8 In. size) bolts. Superior strength (SWL) is clearly defined on label. Manufactured from forged steel. Machine screw threads with hex nut assembled.
- Bar code label is color coded to identify wire size
- Pintle punched for 5/16 In. (1/2 In. size) or 3/8 In. (5/8 In. size) bolts
- Superior strength (SWL) is clearly defined on label
Product manuals and information
Specifications
| Length | 8 In. |
| Material | Steel |
| Finish | Galvanized |
| Thread Length | 3 In. |
| Thread Diameter | 1/2 In. |
| Load Capacity | 2200 Lb. |
| Inside Eye Diameter | 1 In. |
| Thread Size | 13 |
| Hex Nut Included | Yes |
| Hex Nuts Included | Yes |
| Brand | National |
| UPC | 00038613245174 |
| Product type | Eye Bolt |
