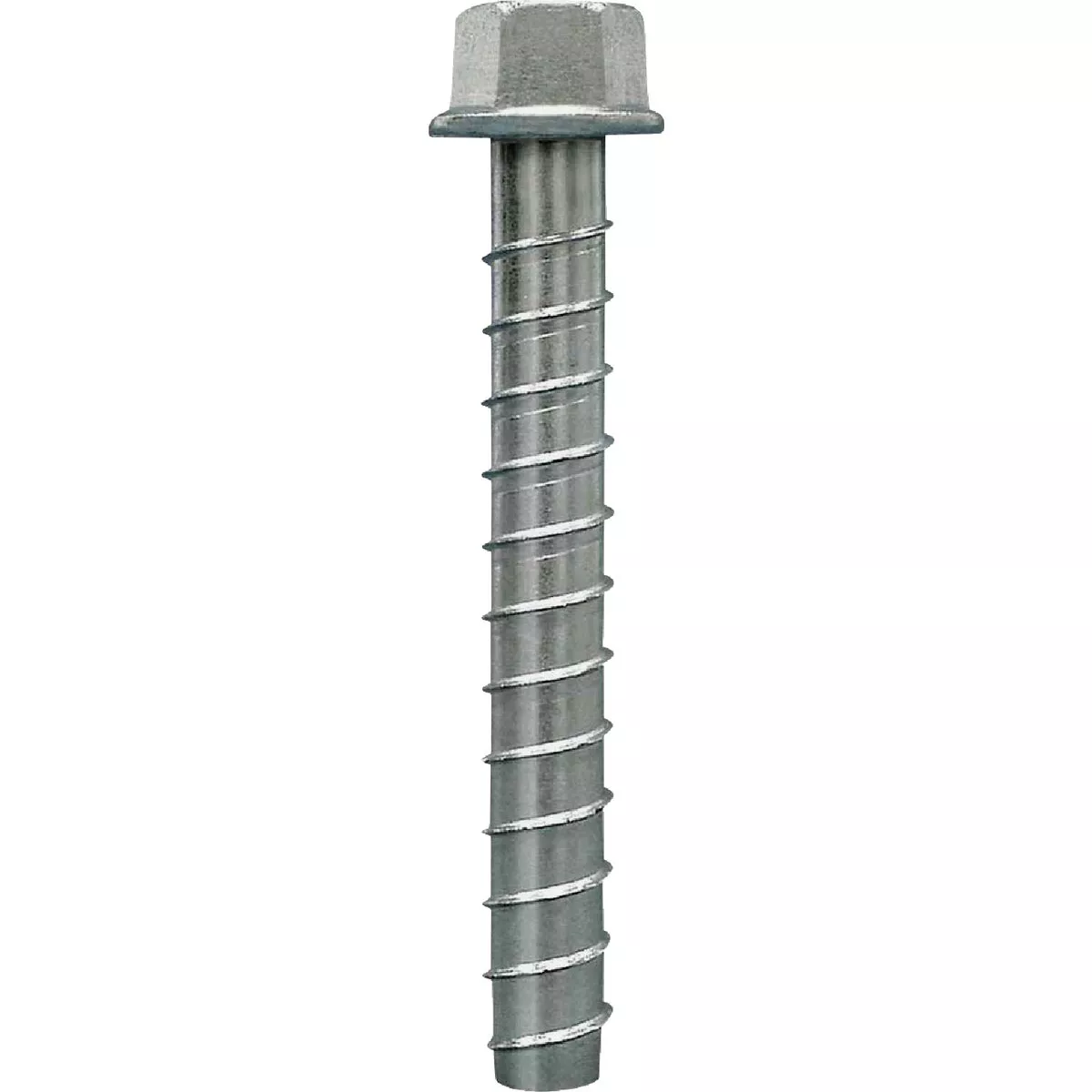

Simpson Strong-Tie Titen HD 1/2 In. x 6 In. Mechanically Galvanized Screw Anchor
Model #THD50600HMGF1Item #251415UPC 00707392519089
Tap to view
Product overview
The Simpson Strong-Tie Titen HD heavy-duty screw anchor is a mechanically galvanized high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. Its proprietary heat treatment and ASTM B695 Class 65 mechanically galvanized coating make it ideal for both interior and exterior anchoring applications. The Titen HD screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post bases, seating, and other holdown applications. The screw anchor is easy to remove for use in temporary applications such as bracing and formwork, or when a fixture needs to be relocated.
- Head-stamped for easy identificaton
- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Code listed for exterior applications
- Caution: Use a Titen HD screw anchor one time only installing the anchor multiple times may result in excessive thread wear and reduce load capacity
Specifications
Length | 6 |
Material | Carbon Steel |
Finish | Mechanically Galvanized |
Head Type | Hex Washer |
Thread Diameter | 1/2 |
Brand | Simpson Strong-Tie |
UPC | 00707392519089 |
Product type | Concrete Screws |
