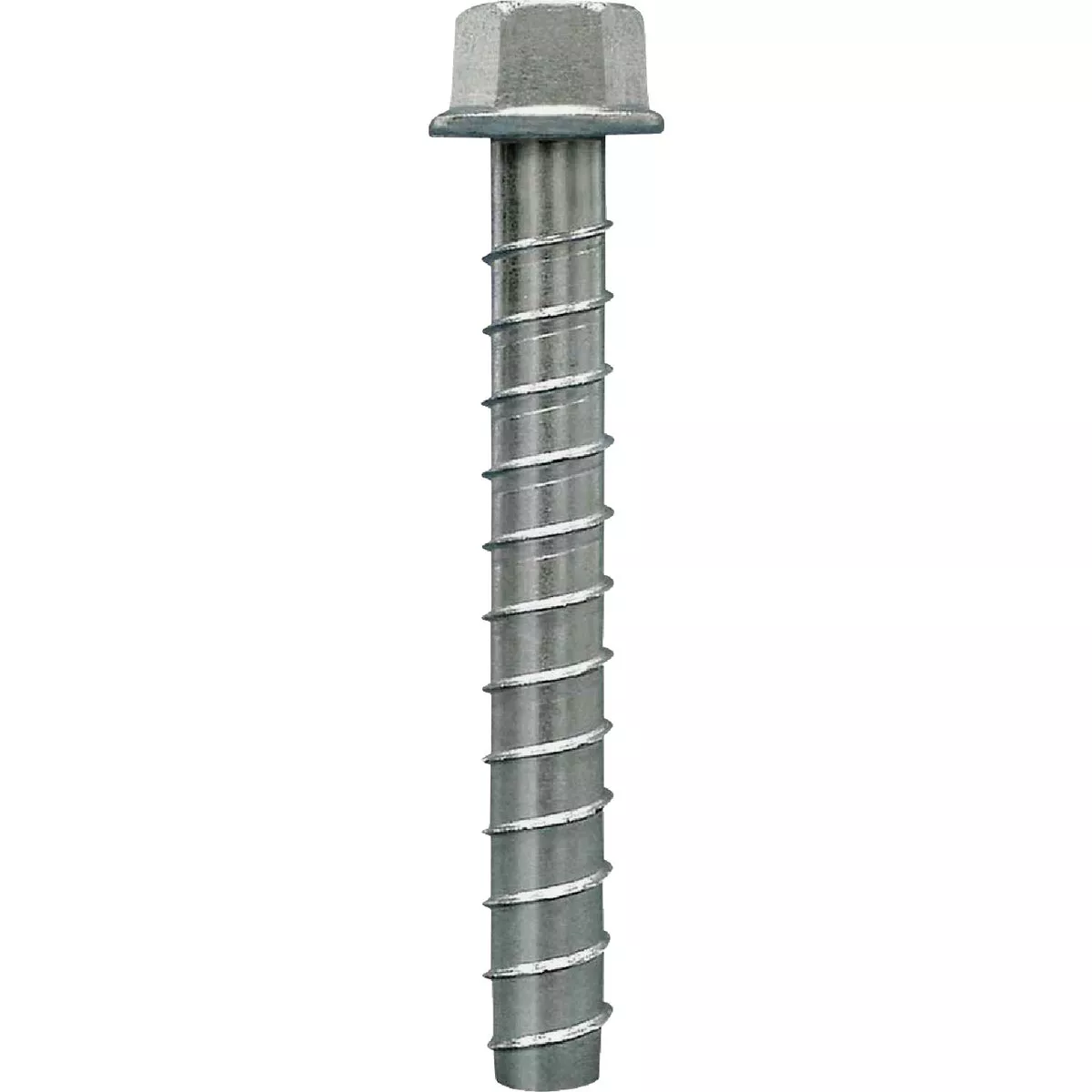

Simpson Strong-Tie Titen HD 1/4 In. x 1-7/8 In. Screw Anchor (20-Count)
Model #THDB25178HC20Item #252274UPC 00707392013341
Tap to view
Product overview
The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer and provides a clean installed appearance
- Specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Zinc-plated carbon steel anchor can be used for temporary exterior applications
- Caution: Use a Titen HD screw anchor one time only installing the anchor multiple times may result in excessive thread wear and reduce load capacity
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
WARNING:WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
- Request Safety Data Sheet (SDS)
Specifications
| Length | 1-7/8 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Type | Hex Washer |
| Thread Diameter | 1/4 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392013341 |
| Product type | Concrete Screws |
