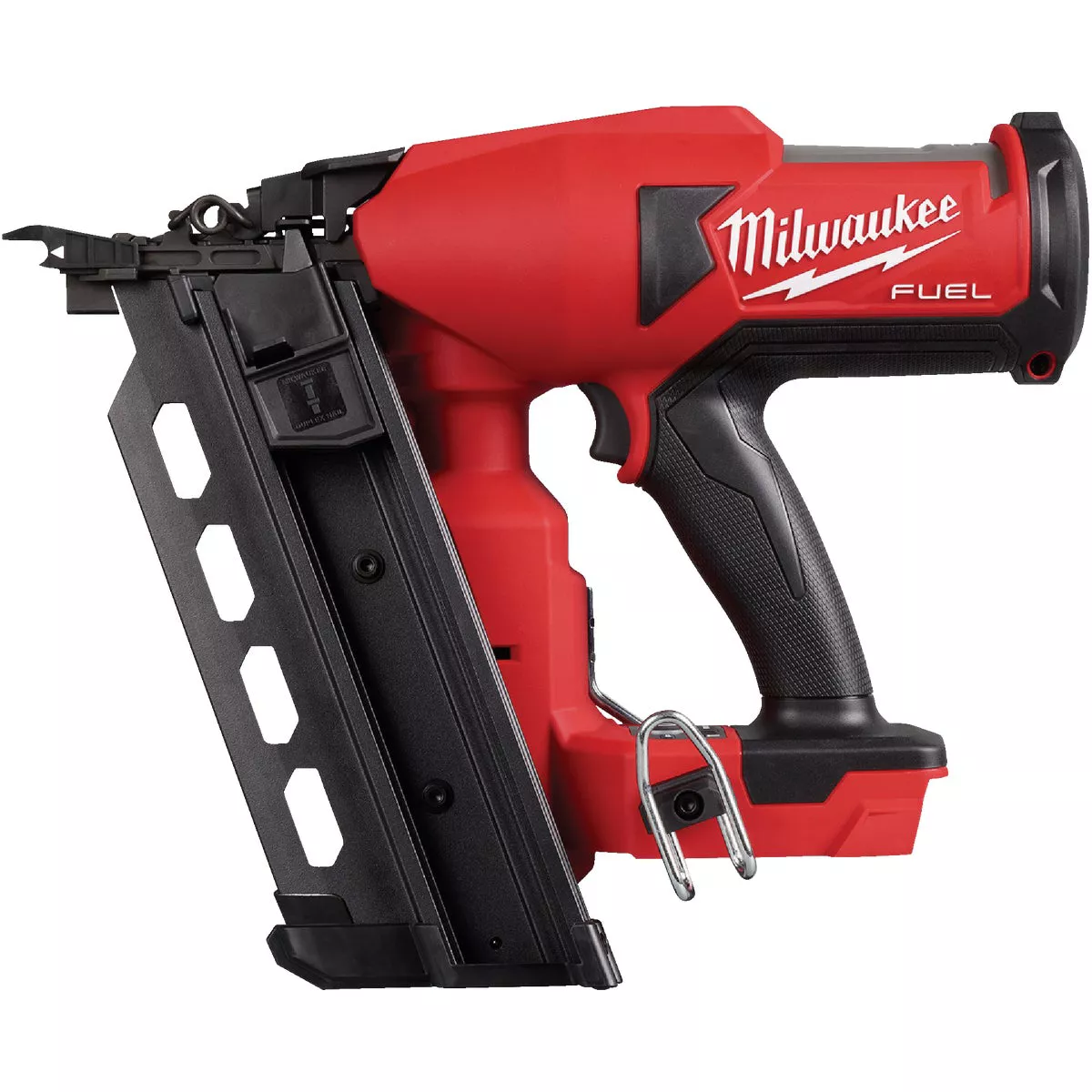

Milwaukee M18 FUEL Brushless 21 Degree Cordless Duplex Framing Nailer (Tool Only)

Model #2844-20Item #305336UPC 00045242775712
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

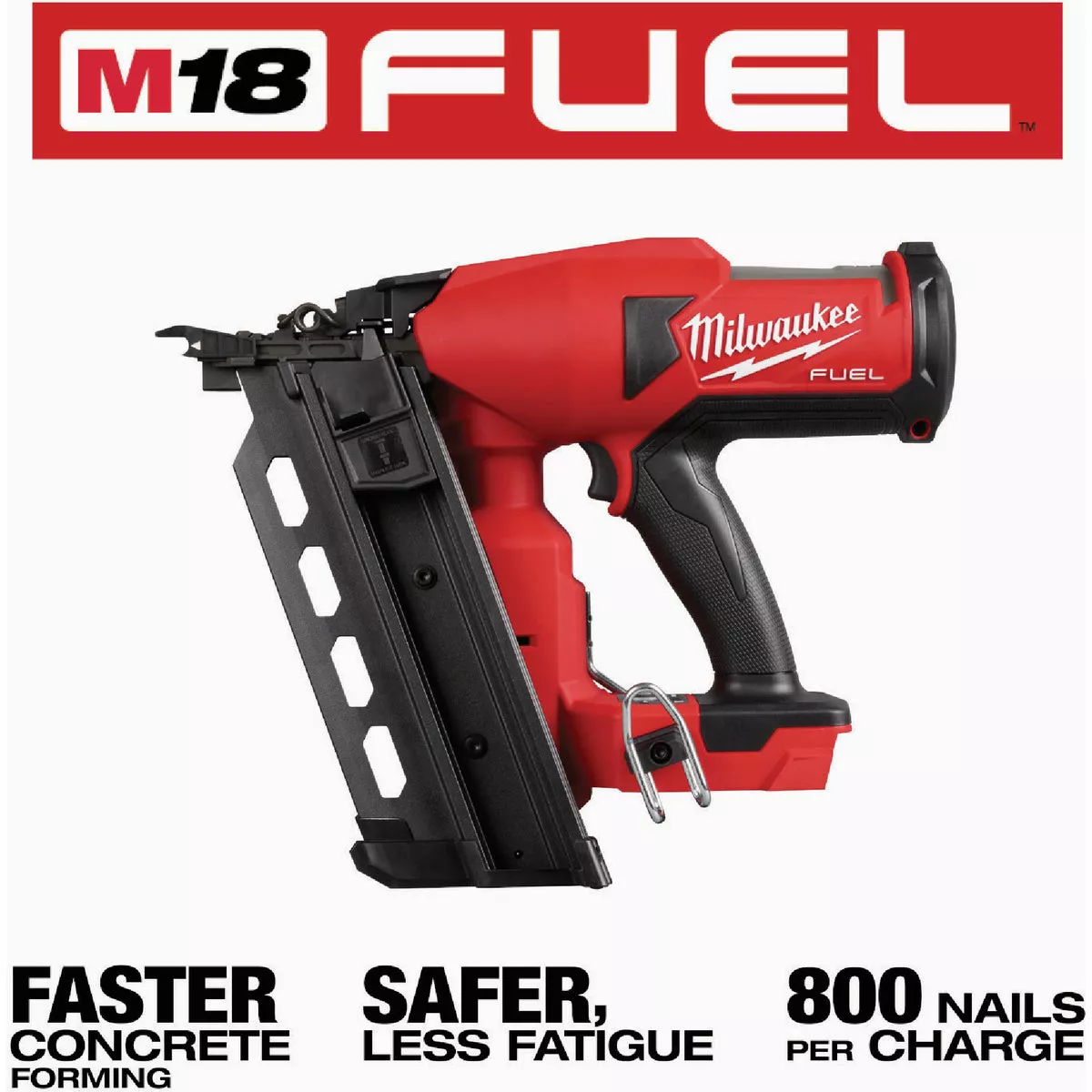

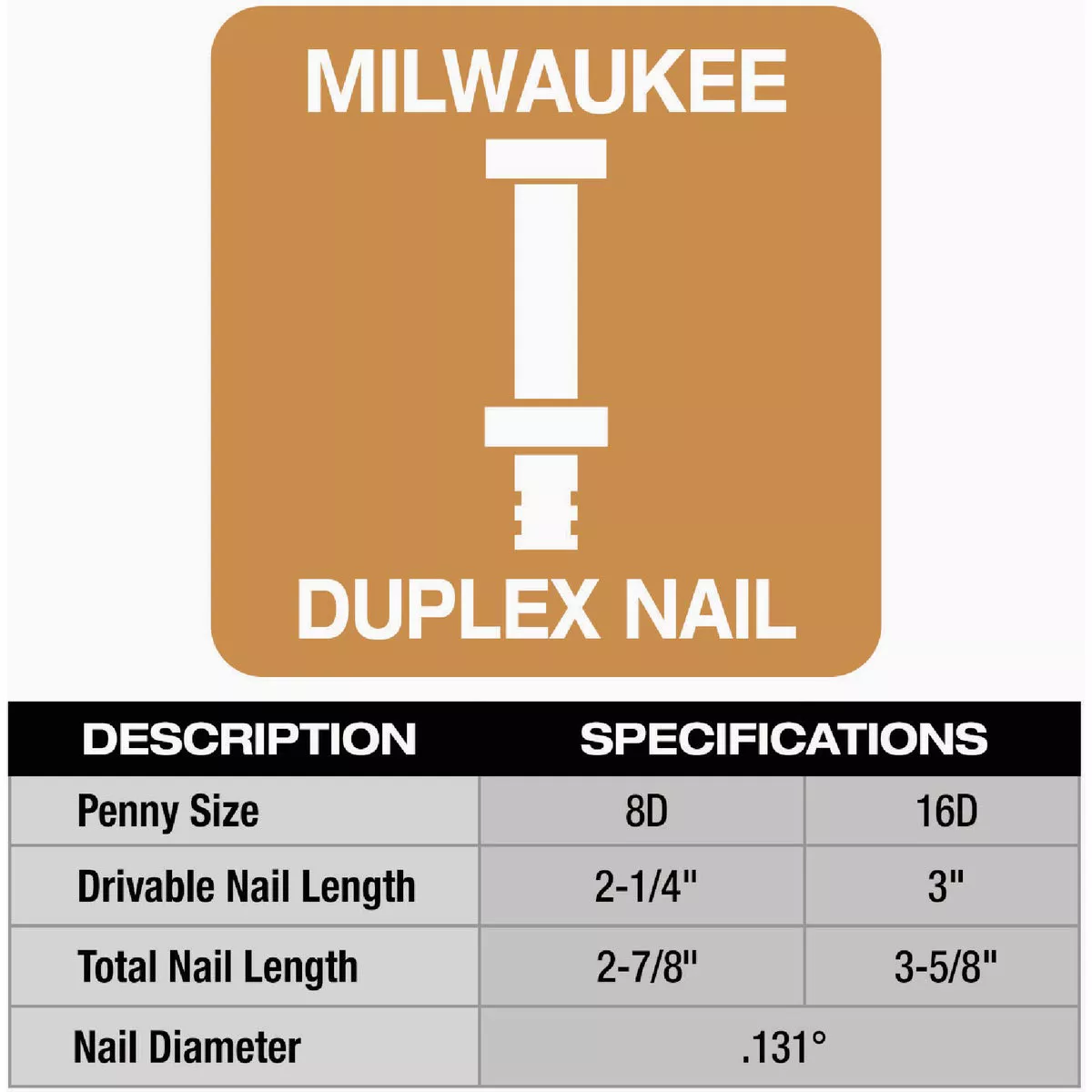

    The MILWAUKEE M18 FUEL Duplex Nailer revolutionizes the assembly of concrete formwork by increasing productivity and optimizing ergonomics. By leveraging our nitrogen air spring technology, POWERSTATE Brushless motor, and REDLINK Intelligence, this nailer delivers the performance to seat nails into all wooden formwork materials at firing rates of up to 4 nails per second. The M18 FUEL Duplex Nailer provides our users with a 7X Increase in productivity and a drastic reduction in muscle effort compared to driving nails with a hammer. This nailer is equipped with user-driven features including tool-free jam clearance and depth of drive adjustment to minimize downtime on the job. The cordless nailer is designed for compatibility with Milwaukee Collated Duplex Nails (sold separately) available in two sizes: 8D (2 drivable length) & 16D (3 drivable length). When paired with the M18 REDLITHIUM 5.0AH Battery pack, this nailer gives users the ability to sink up to 800 nails per charge. The M18 FUEL Duplex Nailer joins the M18 System of over 200 solutions and is compatible with all M18 REDLITHIUM batteries. Tool only - battery & charger not included.

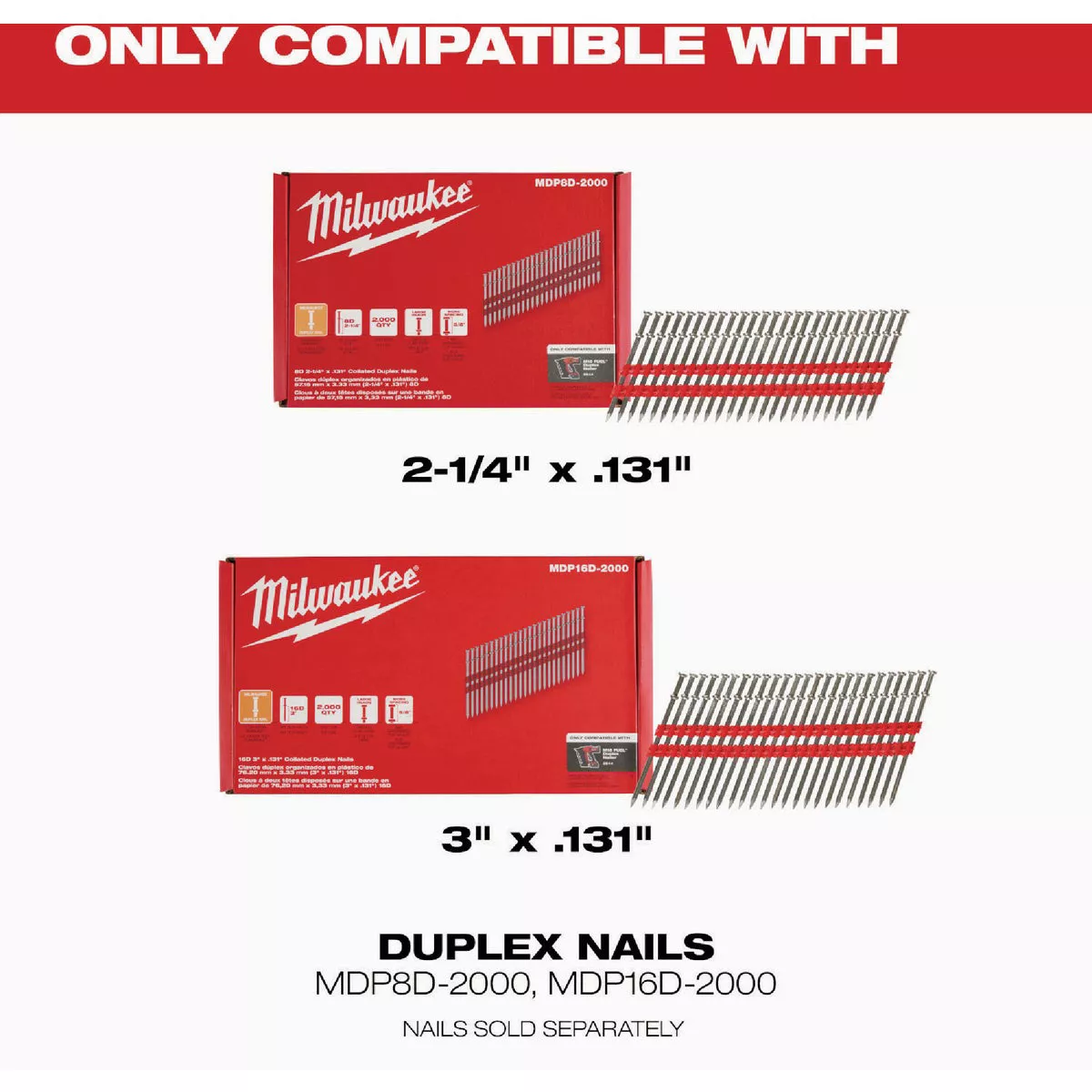

    • Only compatible with Milwaukee Collated Duplex Nails (MDP8D-2000, MDP16D-2000)

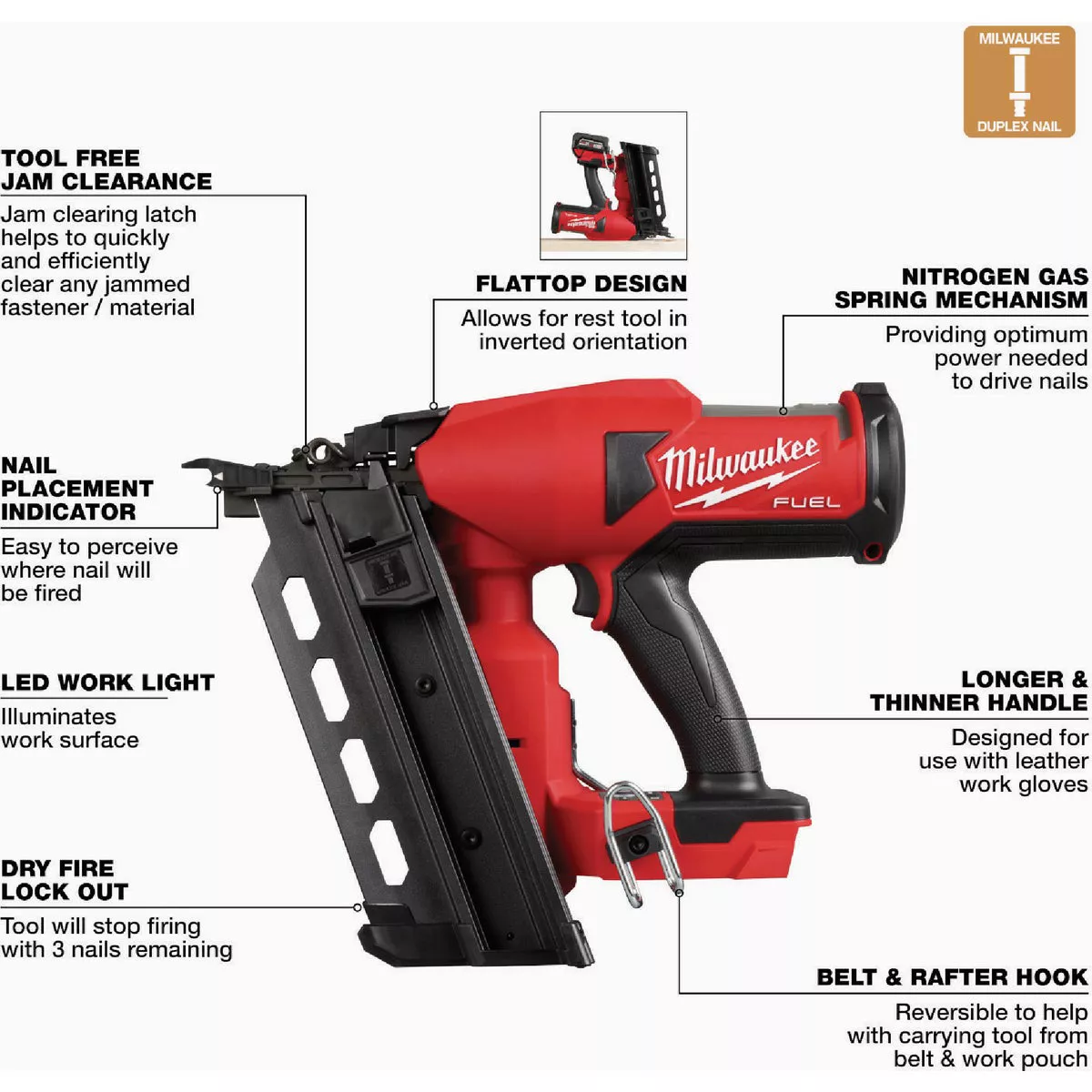

    • Tool Free Jam Clearing Latch
    • Tool Free Depth Adjustment
    • Fires 4 Nails Per Second
    Voltage18
    Corded/CordlessCordless
    Motor TypeBrushless
    CollationStrip
    Magazine Angle21 Degree
    Fastener TypeStrip
    Shank Diameter0.131 In.
    Battery PlatformRechargeable
    Width (In.)5.3
    Height (In.)12.5
    Length (In.)15.1
    Minimum Fastener Size2.875 In.
    Maximum Fastener Size3.625 In.
    Weight (Lb.)9.3
    Power TypeBattery
    BrandMilwaukee
    UPC00045242775712
    Product typeCordless Framing Nailer
