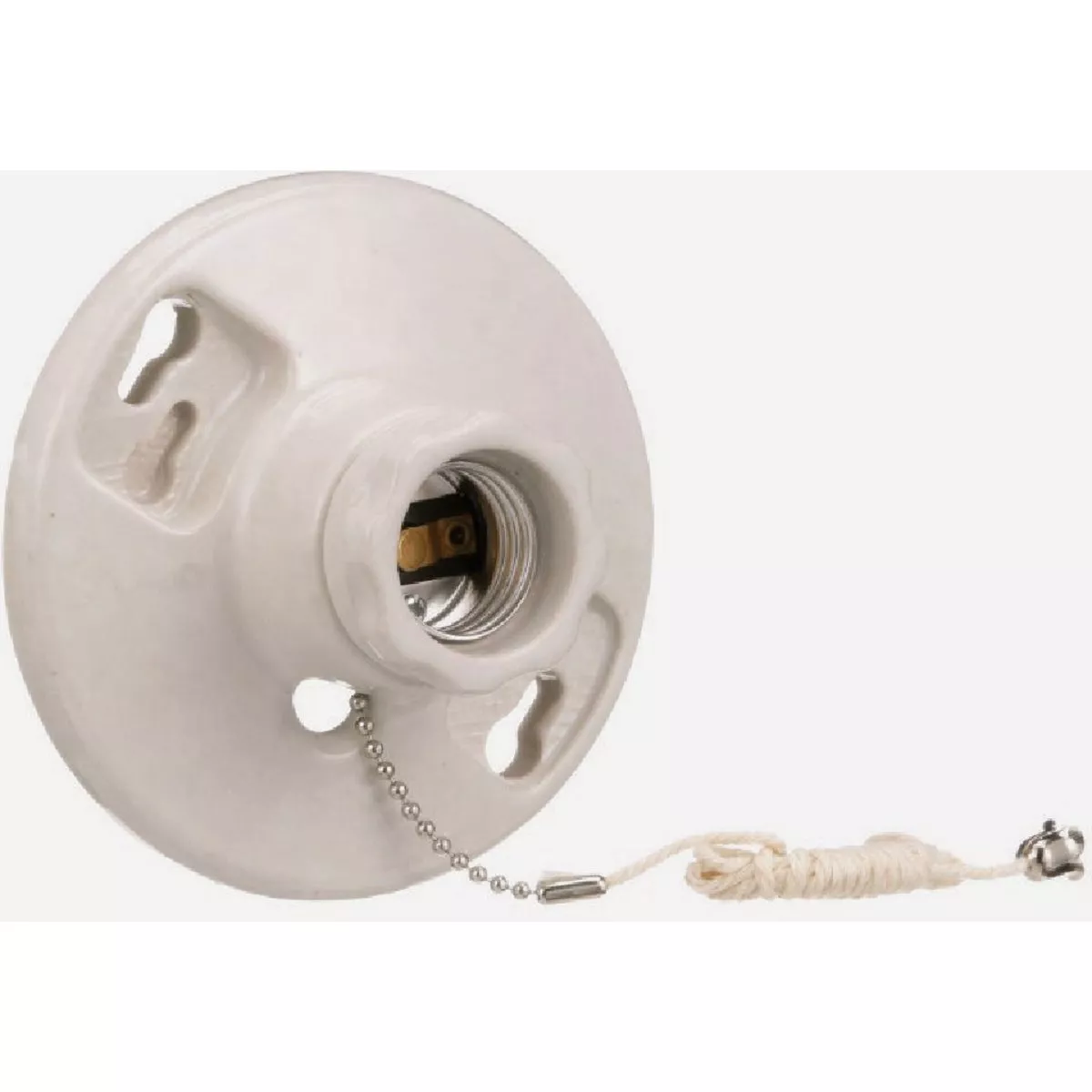

Eaton White Porcelain Incandescent Pull Chain Lampholder
Model #659-SPItem #34HHZNUPC 00032664750632
Tap to view
Product overview
White plastic lampholder with pull chain switch and medium base. Removable interior design. Can be used with LED, incandescent, halogen, and CFL light bulbs up to 660W. Mounts on 4 In. (101.6mm) outlet boxes with breakout for 3.25 In. (82.5mm) box mounting. Leads are 6 In. (152.4mm), 221F (105C), insulated, stranded #16 AWG, stripped 0.75 In. (19.0mm). Top wire versions have terminal screws backed out, ready for wiring without removing interior. Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring. Made of high-strength insulator porcelain.
- Can be used with LED, incandescent, halogen, CFL bulbs up to 660W
- Mounts on 4 In. (101.6mm) outlet boxes with breakout for 3.25 In. (82.5mm) box mounting
- Leads are 6 In. (152.4mm) 221F (105C) insulated stranded #16 AWG, stripped 0.75 In. (19.0mm)
- Top wire versions have terminal screws backed out, ready for wiring without removing interior
- Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring
- Made of high-strength insulator porcelain
- Removable interior
Specifications
| Color | WHITE |
| Material | Porcelain |
| Voltage | 250 AC |
| Certification | cULus Listed |
| Base Type | Medium |
| Wattage | 660 |
| Bulb Type | Incandescent |
| Number of Terminal Screws | 4 |
| Outlet Box Size | 4 |
| Outlet Box Size (In.) | 4 |
| Brand | Eaton |
| UPC | 00032664750632 |
| Product type | Lampholder |
