Eaton White Plastic Pull Chain Incandescent Lampholder
Model #S759W-CD-SPItem #3D8HG1 UPC 00032664750595
Tap to view
Product overview

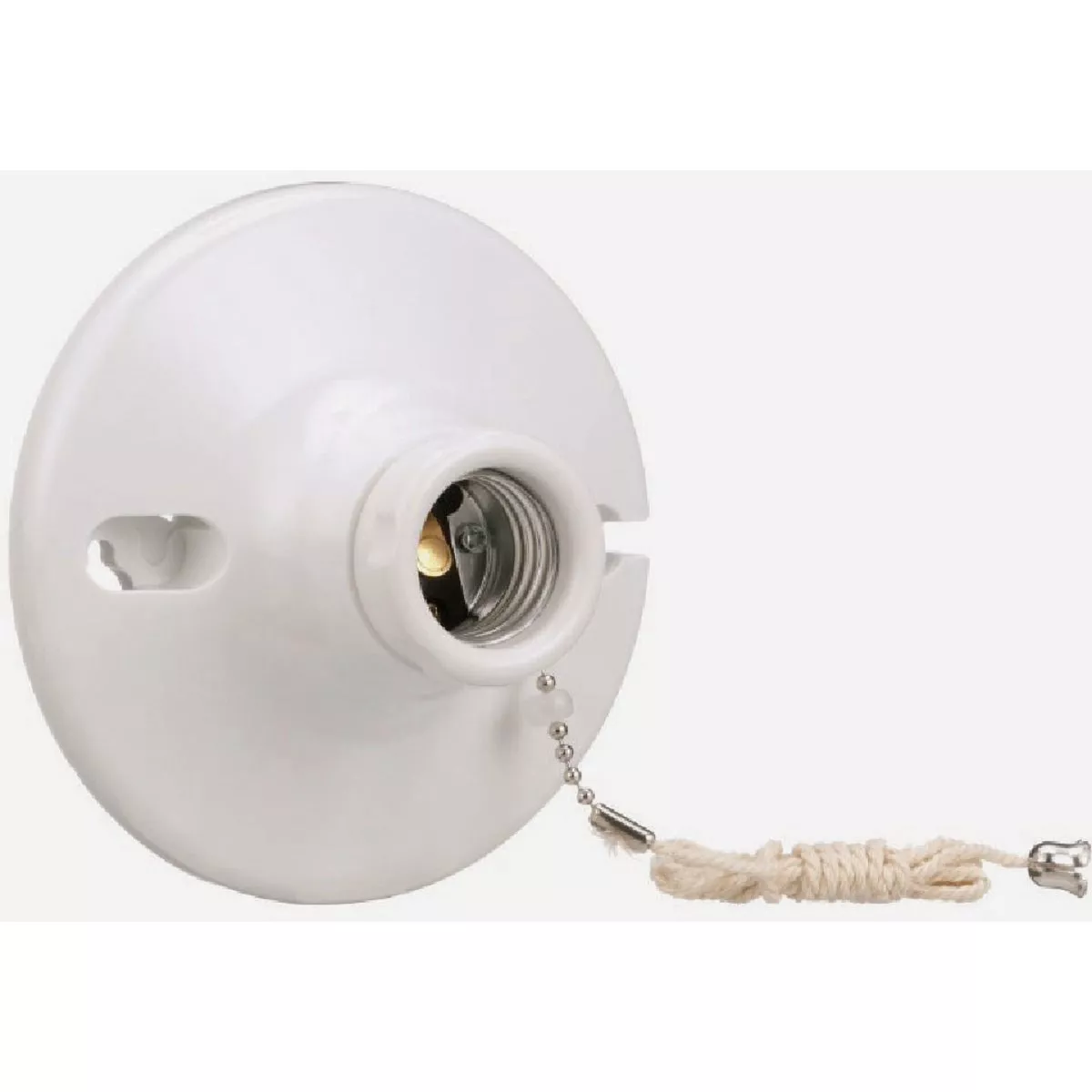

White plastic lampholder. Includes Pull chain, #14-10 AWG (American Wire Gauge), medium base, two-piece design. 250V, 660W, Top and Push wiring. Can be used with LED, incandescent, halogen, and CFL light bulbs up to 600W. Mounts on 4 In. (101.6mm) outlet boxes with breakout for 3.25 In. (82.5mm) box mounting. Leads are 6 In. (152.4mm), 221F (105C), insulated, stranded #16 AWG, stripped 0.75 In. (19.0mm). Top wire versions have terminal screws backed out, ready for wiring without removing interior. Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring. Made with high-temperature thermoset plastic to reduce breakage. Includes ball chain, 3 Ft. (0.9m) of cord, connector, and end bell.
- Can be used with LED, incandescent, halogen, CFL bulbs up to 600W
- Mounts on 4 In. (101.6mm) outlet boxes with breakout for 3.25 In. (82.5mm) box mounting
- Leads are 6 In. (152.4mm) 221F (105C) insulated stranded #16 AWG, stripped 0.75 In. (19.0mm)
- Top wire versions have terminal screws backed out, ready for wiring without removing interior
- Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring
- Includes ball chain, 3 Ft. (0.9m) of cord, connector, and end bell
- Made with high-temperature thermoset plastic to reduce breakage
Specifications
| Material | Plastic |
| Voltage | 250 AC |
| Base Type | Medium |
| Wattage | 600 |
| Bulb Type | Incandescent |
| Brand | Eaton |
| UPC | 00032664750595 |
| Product type | Lampholder |
