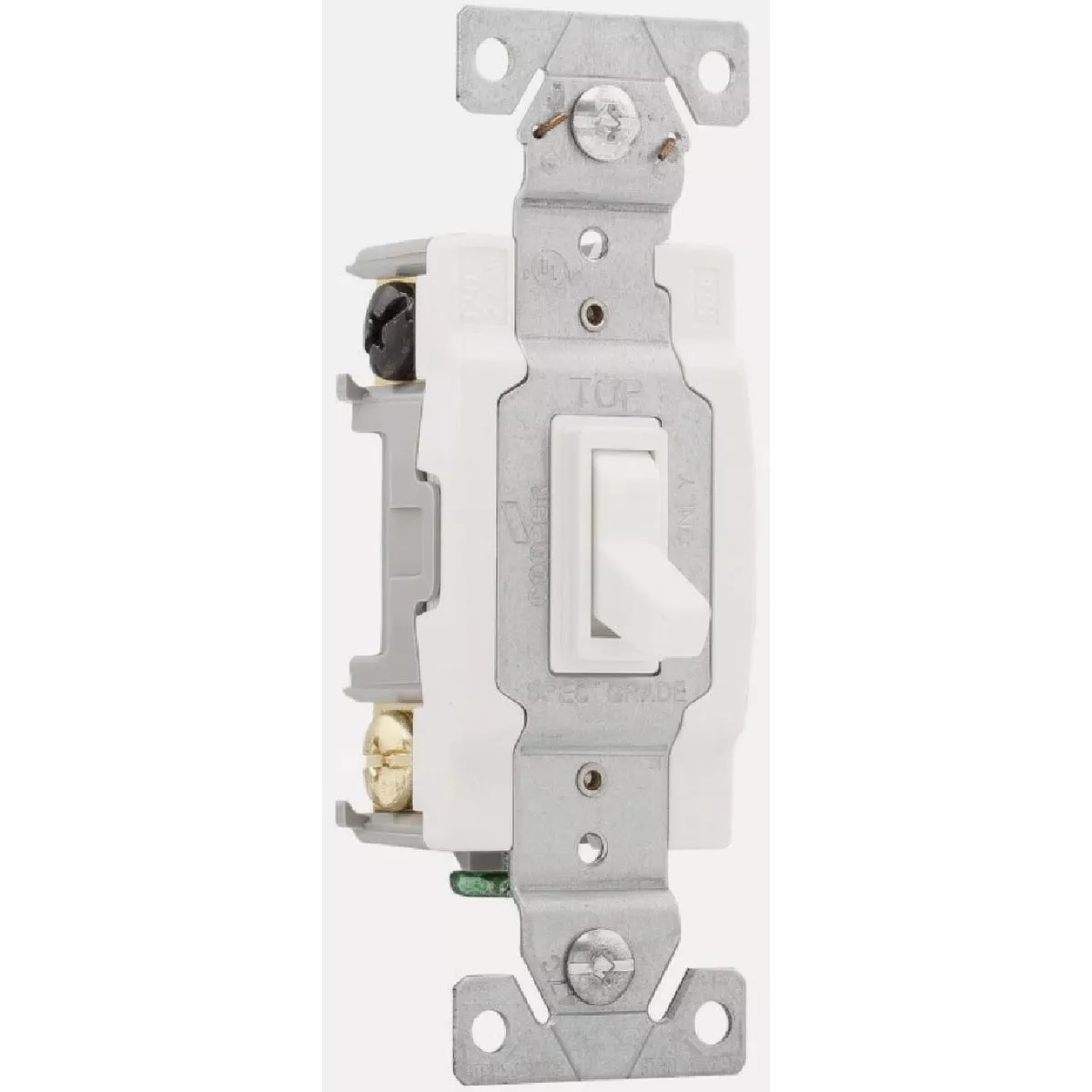

Eaton Residential Grade 15A White Illuminated 4-Way Toggle Switch
Model #WD1242-7W-BOXItem #3JB8Z7UPC 00032664750168
Tap to view
Product overview
Residential 4-way toggle switch. Accepts #14-10 AWG (American Wire Gauge). 15A/120V, side and push wire, grounding. Durable polycarbonate construction. Controls light from three or more locations. Push-in terminals accept #14 AWG solid wire only; side wire terminals accept up to #10 AWG solid wire. Long, broad mounting strap virtually eliminates floating installations. Built-in wire stripper for #12 and #14 AWG wire to speed up installation. Tri-combo screws accept Slotted, Phillips, and Robertson-head tools for installation flexibility. Wire looper speeds termination of both #14 and #12 AWG wire. Lighted toggle glows in OFF position.
- Controls light from three or more locations
- Push-in terminals accept #14 AWG solid wire only; side wire terminals accept up to #10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Built-in wire stripper for #12 and #14 AWG wire to speed up installation
- Tri-combo screws accept Slotted, Phillips, and Robertson-head tools for installation flexibility
- Wire looper speeds termination of both #14 and #12 AWG wire
- Lighted toggle glows in OFF position
Specifications
| Color | Ivory |
| Material | Plastic |
| Amperage | 15 |
| Voltage | 120 |
| Grade | Residential |
| Certification | cULus Listed |
| Switch Type | Toggle |
| Termination | Side/Push Wire |
| Brand | Eaton |
| UPC | 00032664750168 |
| Product type | 4-Way Switch |
