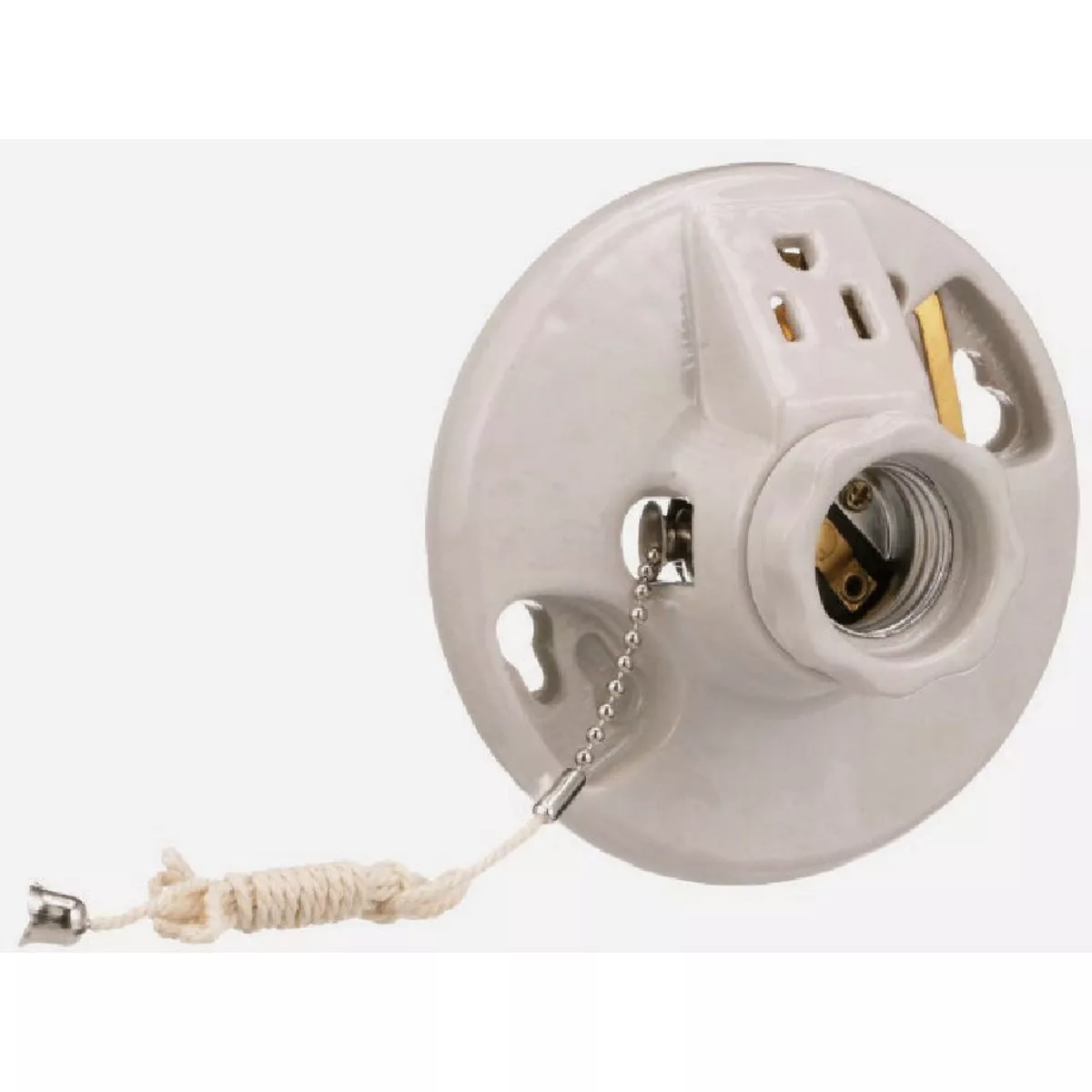

Eaton White Porcelain Incandescent Pull Chain Lampholder with 3-Wire Outlet
Model #667-SPItem #3KJ9V3UPC 00032664259708
Tap to view
Product overview
White Porcelain lampholder with pull chain switch and 3-wire outlet. Includes a medium base, removable interior, 2-pole design. Can be used with LED, incandescent, halogen, and CFL light bulbs up to 660W. Mounts on 4 In. (101.6mm) outlet boxes with breakout for 3.25 In. (82.5mm) box mounting. Leads are 6 In. (152.4mm), 221F (105C), insulated stranded, #16 AWG, stripped 0.75 In. (19.0mm). Top wire versions have terminal screws backed out, ready for wiring without removing interior. Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring. Made of high-strength insulator porcelain.
- Can be used with LED, incandescent, halogen, CFL bulbs up to 660W
- Mounts on 4 In. (101.6mm) outlet boxes with breakout for 3.25 In. (82.5mm) box mounting
- Leads are 6 In. (152.4mm) 221F (105C) insulated stranded #16 AWG, stripped 0.75 In. (19.0mm)
- Top wire versions have terminal screws backed out, ready for wiring without removing interior
- Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring
- Made of high-strength insulator porcelain
- Removable interior
Specifications
| Color | WHITE |
| Material | Porcelain |
| Voltage | 125 AC |
| Certification | cULus Listed |
| Base Type | Medium |
| Wattage | 660 |
| Bulb Type | Incandescent |
| Number of Terminal Screws | 2 |
| Outlet Box Size | 4 |
| Outlet Box Size (In.) | 4 |
| Brand | Eaton |
| UPC | 00032664259708 |
| Product type | Lampholder |
