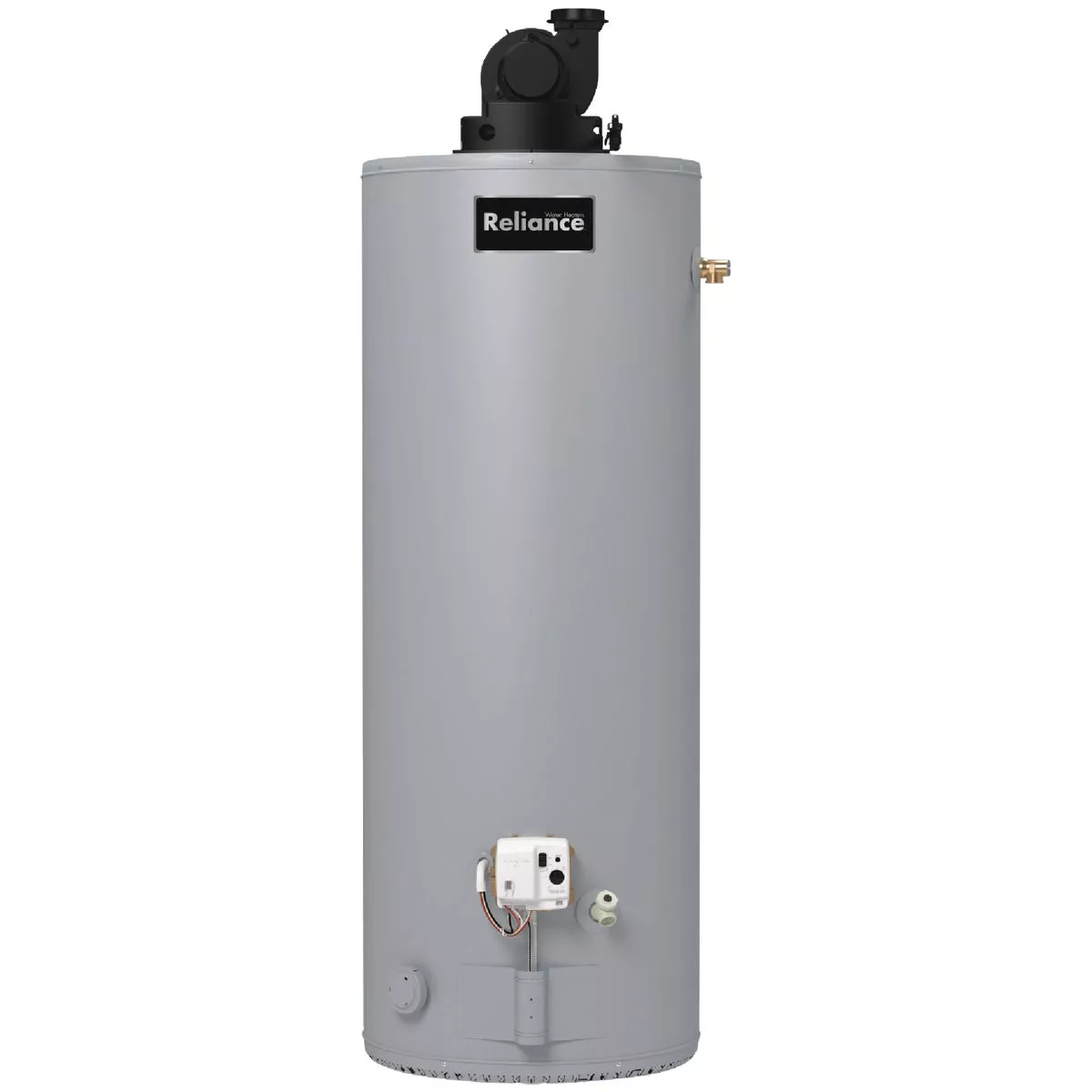

Reliance 40 Gal. Short 6 Year 40,000 BTU Natural Gas Water Heater with Power Vent
Tap to view
Product overview
Natural gas water heater with power-vent 3-position (9, 12 and 3 o'clock) rotatable blower. Hot surface ignition, ABS, PVC, and PP vent material. Vent lengths up to 125 Ft. with 3 In. diameter venting (180 equivalent feet with 4 In. diameter venting); subtract 5 Ft. from vent length with each installed vent-elbow. Important notice: Allow an additional 4 In. to 10 In. to height dimension when installing a 90 Deg. vent-elbow on blower in 12 o'clock position. 120V (volt) required. 2 In. insulation. Factory installed T & P temperature & pressure) valve. 6 year tank and parts limited warranty. Energy Star Qualified.
- Electronic gas control valve that provides precise tempeature control and operational status
- More powerful modular blower with 110/120 volt electrical system, factory-installed 7 Ft. power cord
- Advanced Intelli-Vent gas control valve - no standing pilot saves energy
- Glass-lined tank with heavy anode rod protects against corrosion
- Environmentally-friendly non-CFC foam insulation
- Eco-friendly green choice gas burner - reduces NOx emissions by 33%
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve
- 6-year limited tank & parts waranty, 1-year labor warranty
- Energy Star Qualified
Product manuals and information
- Buying Guides
- Related Product Articles
-
California Prop-65 Warning WARNING:
Cancer and Reproductive Harm - www.p65warnings.ca.gov
WARNING:Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Request Safety Data Sheet (SDS)
Specifications
| Width | 22 In. |
| Voltage | 120 |
| Type | Residential |
| Warranty | 6 Yr. |
| Capacity | 40 Gal. |
| Height | 49-5/8 In. |
| Depth | 22 In. |
| Fuel Type | Natural Gas |
| BTU Rating | 40,000 |
| Uniform Energy Factor | 0.67 |
| Vent Size | 4 In. |
| For Mobile Home Use | No |
| Style | Short |
| Recovery Rate | 45 gph |
| Family Size | 5 |
| Tank Capacity | 40 Gal. |
| Application Type | Residential |
| Width (In.) | 22 |
| Height (In.) | 59 |
| Depth (In.) | 22 |
| Nominal Tank Capacity (gallons) | 40 |
| Vent Diameter (In.) | 2, 3, or 4 |
| Recovery Rate at 90F Rise (gallons/hour) | 45 |
| Tank Warranty | 6 Year |
| Water Heater Profile | Short |
| Nominal Tank Capacity (Gal.) | 40 |
| Recovery Rate at 90F Rise (Gal./Hr.) | 45 |
| Water Connection Size (In.) | 3/4 In. |
| Gas Connection Size (In.) | 1/2 |
| Brand | Reliance |
| UPC | 00091193008294 |
