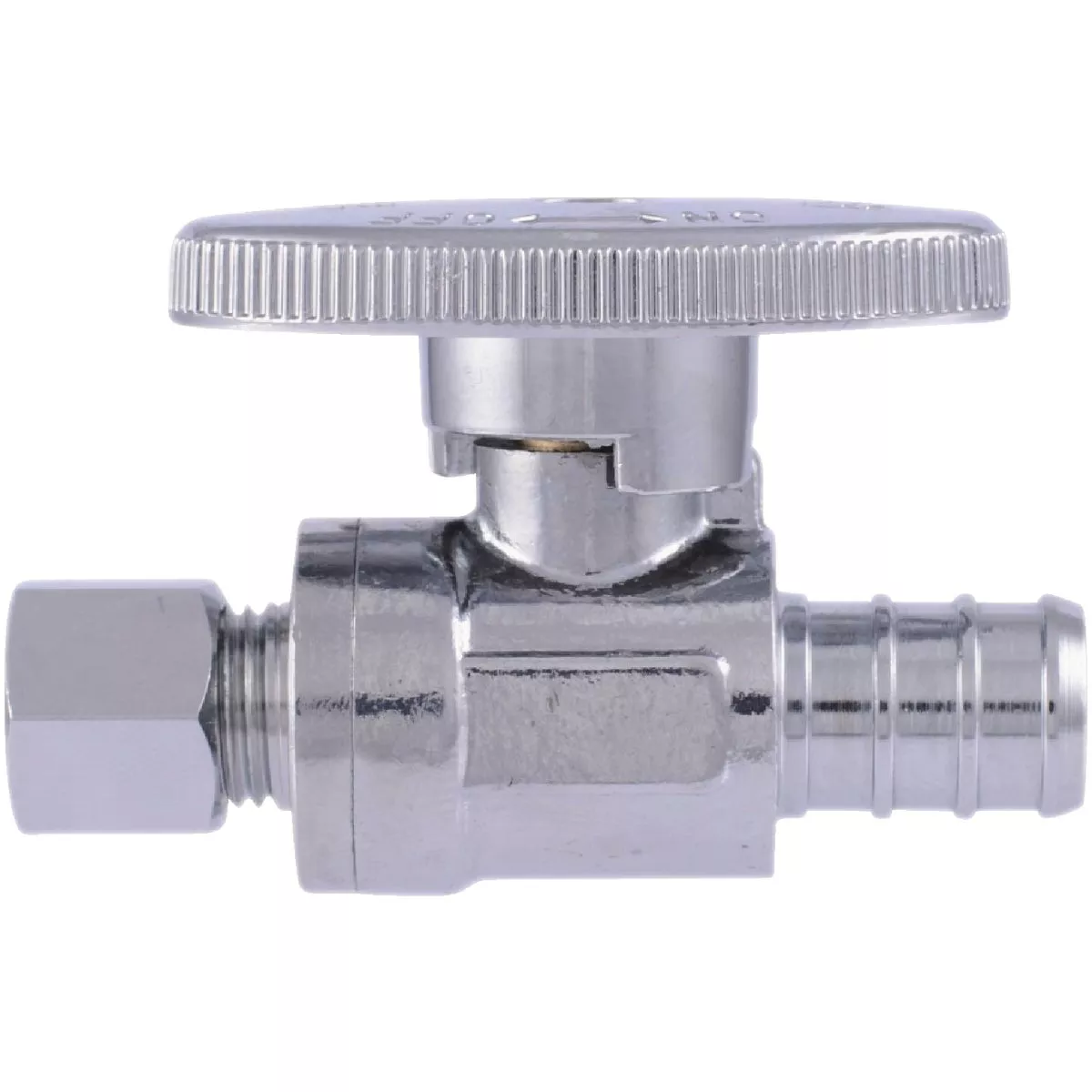

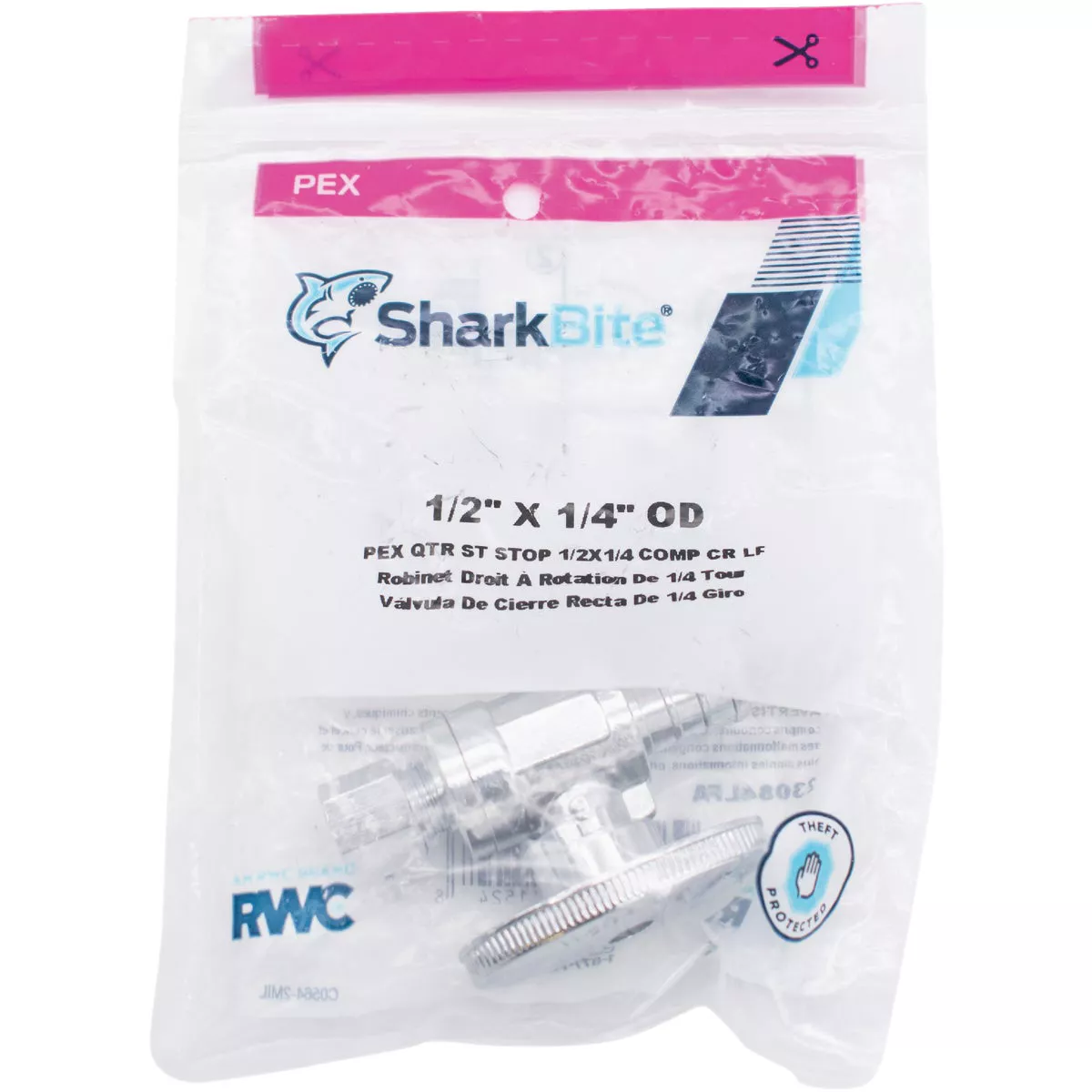

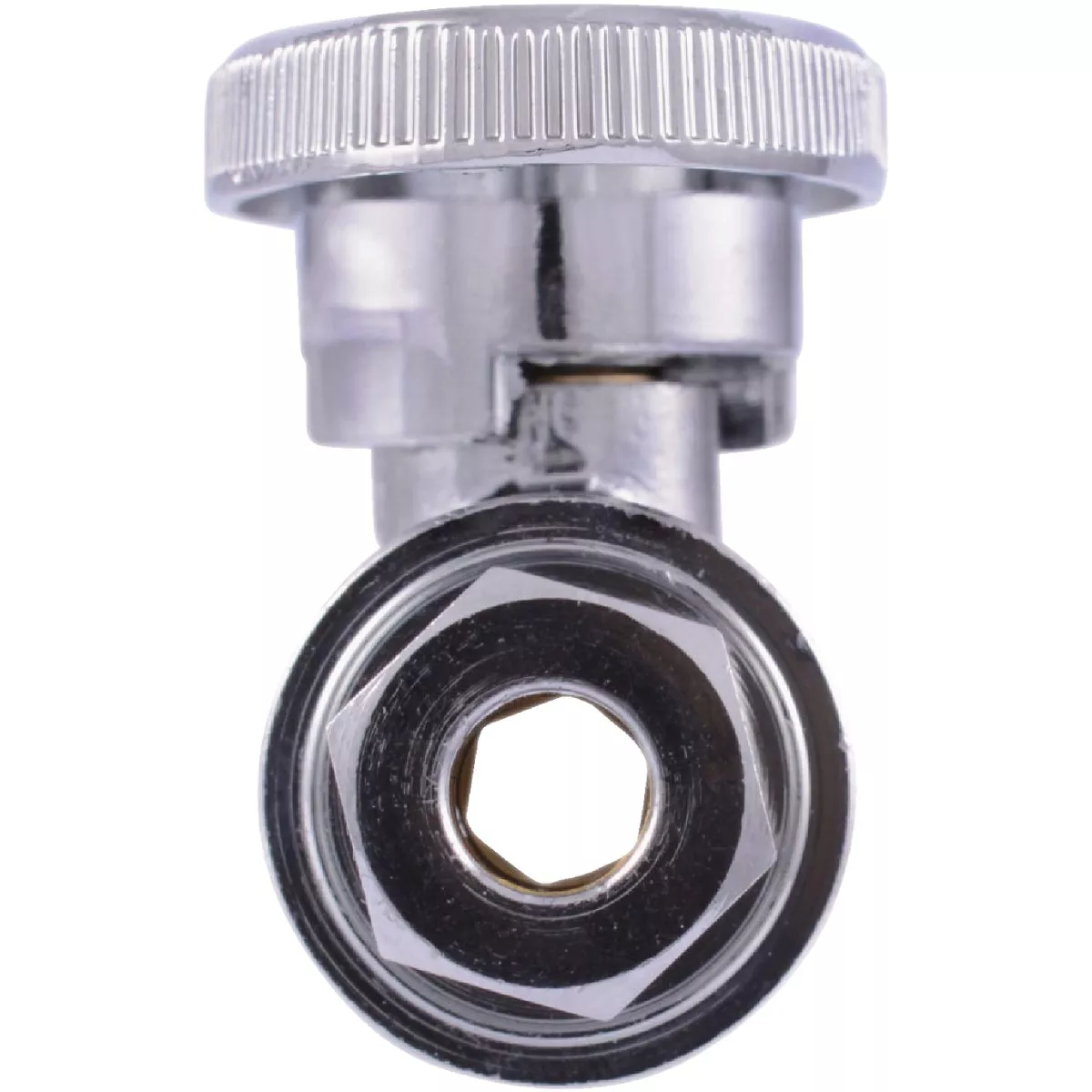

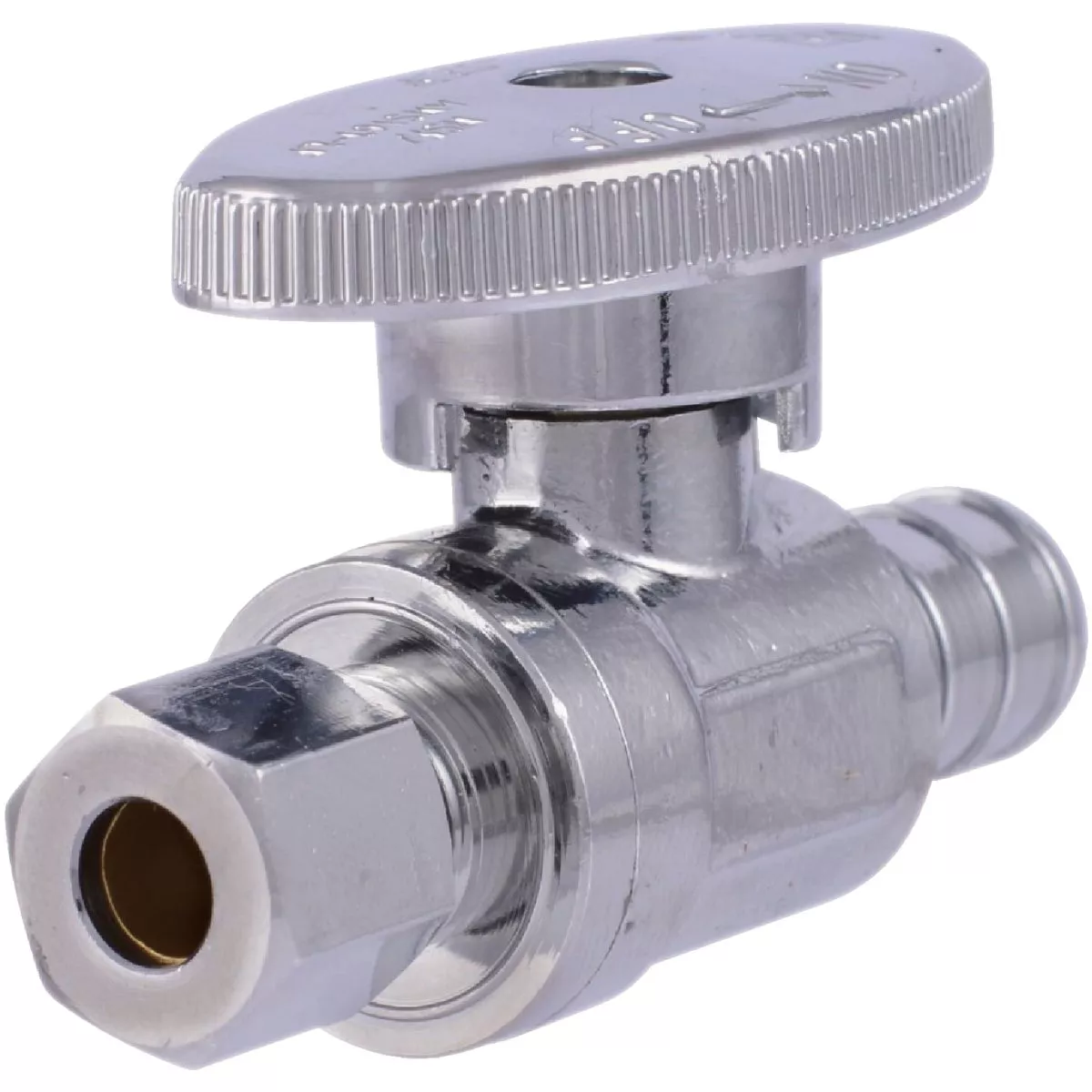

SharkBite 1/2 In. Barb x 1/4 In. Compression PEX-B Quarter Turn Stop Straight Valve
Model #23084LFZItem #480467UPC 00697285086111
Tap to view
Product overview
The straight stop valve is used where the water pipe enters the room to allow for easy shut-off of water flow to the end fixture allowing for maintenance and repair without having to turn water off to the entire home. Can be connected to PEX pipe using copper crimp rings or stainless steel clamps. The 1/4 In. compression outlet with the supplied ferrule and compression nut, can be used with 1/4 In. OD pipe or 1/4 In. supply line.
- Compatible with PEX and PE-RT pipe
- Lead free chrome-plated DZR brass construction for durability and reliability
- Quarter-turn handle for easy on/off flow control
- Minimum working temperature 33 Deg F at 160 psi
- Maximum working temperature 200 Deg F at 80 psi
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
This product can expose you to chemicals including Lead (Pb), which is are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
WARNING:This product can expose you to chemicals including Lead (Pb), which is are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
- Request Safety Data Sheet (SDS)
Specifications
| Material | Brass |
| Pressure Rating (psi) | 125 |
| Maximum Working Temperature (F) | 200 |
| Connectivity | Barb |
| Outlet Size | 1/4 In. |
| Inlet Size | 1/2 In. |
| Inlet Fitting Type | Barb |
| Outlet Fitting Type | Compression |
| PEX Type | B |
| Brand | SHARKBITE |
| UPC | 00697285086111 |
| Product type | PEX Stop Valve |
