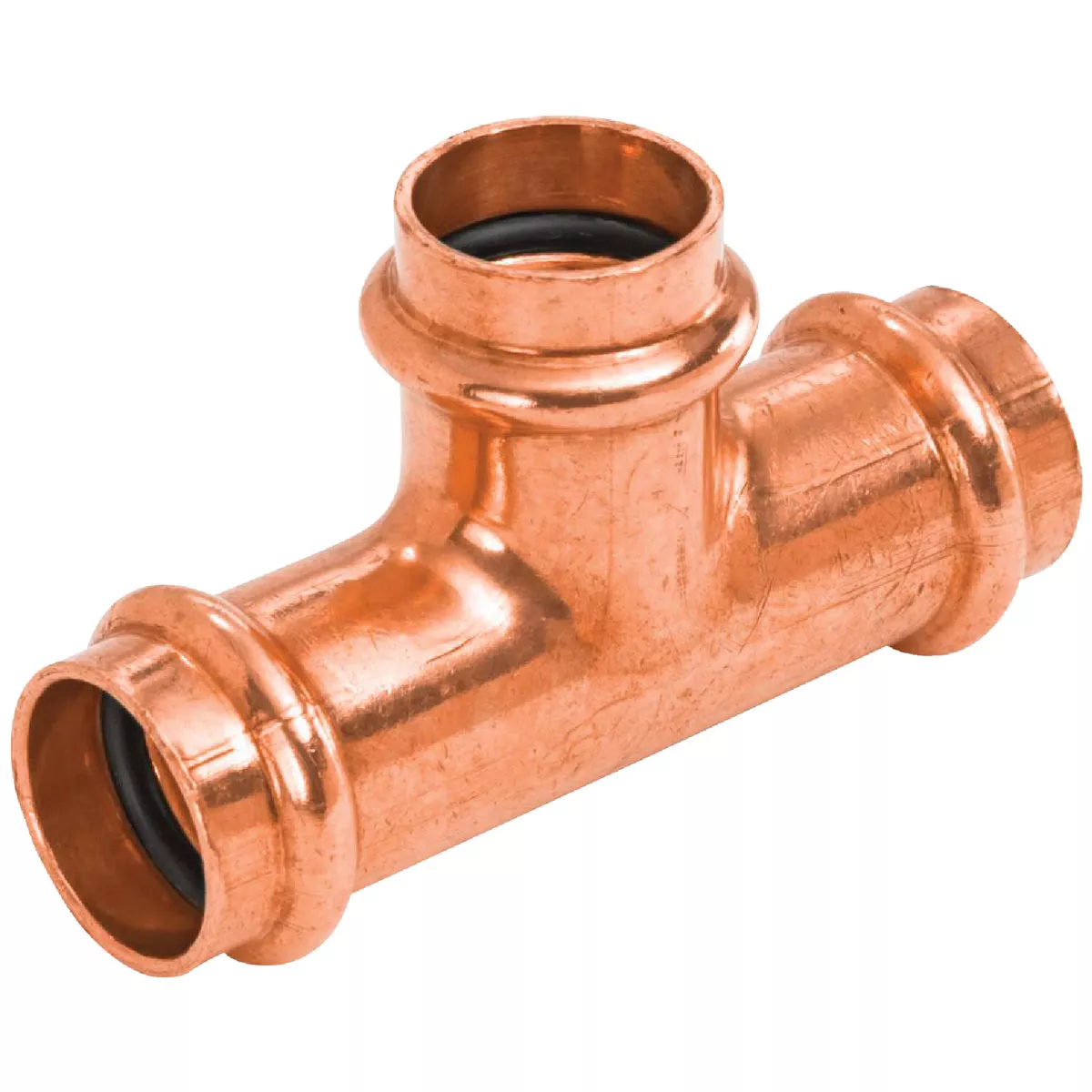

NIBCO 3/4 In. x 1/2 In. x 1/2 In. PxPxP Press Copper Tee
Model #9098905PCUItem #493069 UPC 00039923385888
Tap to view
Product overview
The NIBCO Press System wrot copper tee features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder, or flux. The tee has press connections and allows for a connection to be made in a continuous pipeline and branch out to a different direction.
- Operating pressure: 200 PSI CWP max
- Operating temperature range: -20 Deg F 250 Deg F
- Approved for installations in above and below ground applications as allowed by local code
- Applications include: Potable water, Hydronic heating, chilled water, compressed air, non-medical gases, low pressure steam, and vacuum
- Lead-Free
- Dezincification resistant
- Third-party certified to the performance requirements of CSA MSE 13 and PS-117
Specifications
| Material | Copper |
| Type | Reducing |
| Fitting Size 1 | 3/4 In. |
| Fitting Type | Tee |
| Brand | NIBCO |
| UPC | 00039923385888 |
| Product type | Copper Tee |
