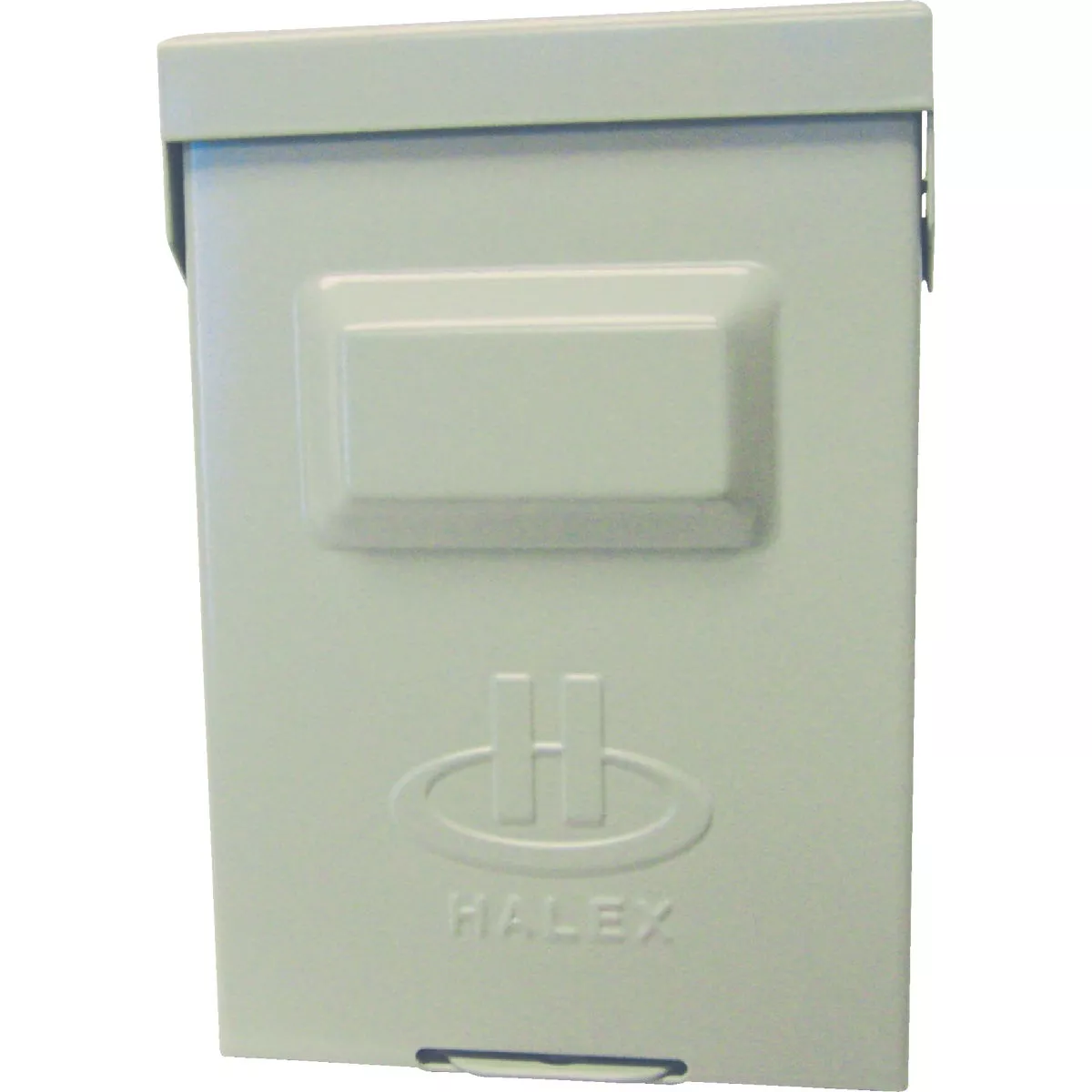

Halex 60A 240V Non-Fused Air Conditioner Disconnect
Model #HNF60R UPC 00051411600013
225244
Tap to view
Product overview
60-amp/240-volt non-fuse metallic A/C disconnect. Designed to stop the power going to an air conditioning unit to allow for safe working conditions. The disconnect is a non-fuse, puller type and is UL listed with an enclosed pull-out switch. Compatible with copper or aluminum lug wire range 14-3.
- For outdoor use
- Compatible with copper or aluminum lug wire range 14-3
- ANSI certified
- UL listed
Specifications
| Amperage | 60 |
| Voltage | 240 |
| NEMA Configuration | 3R |
| Wire Size | 14-3 Cu/AL Lug Wire Range |
| Certification | UL Listed |
| Depth (In.) | 2.77 |
| Brand | Halex |
| UPC | 00051411600013 |
| Product type | Air Conditioner Disconnect |
