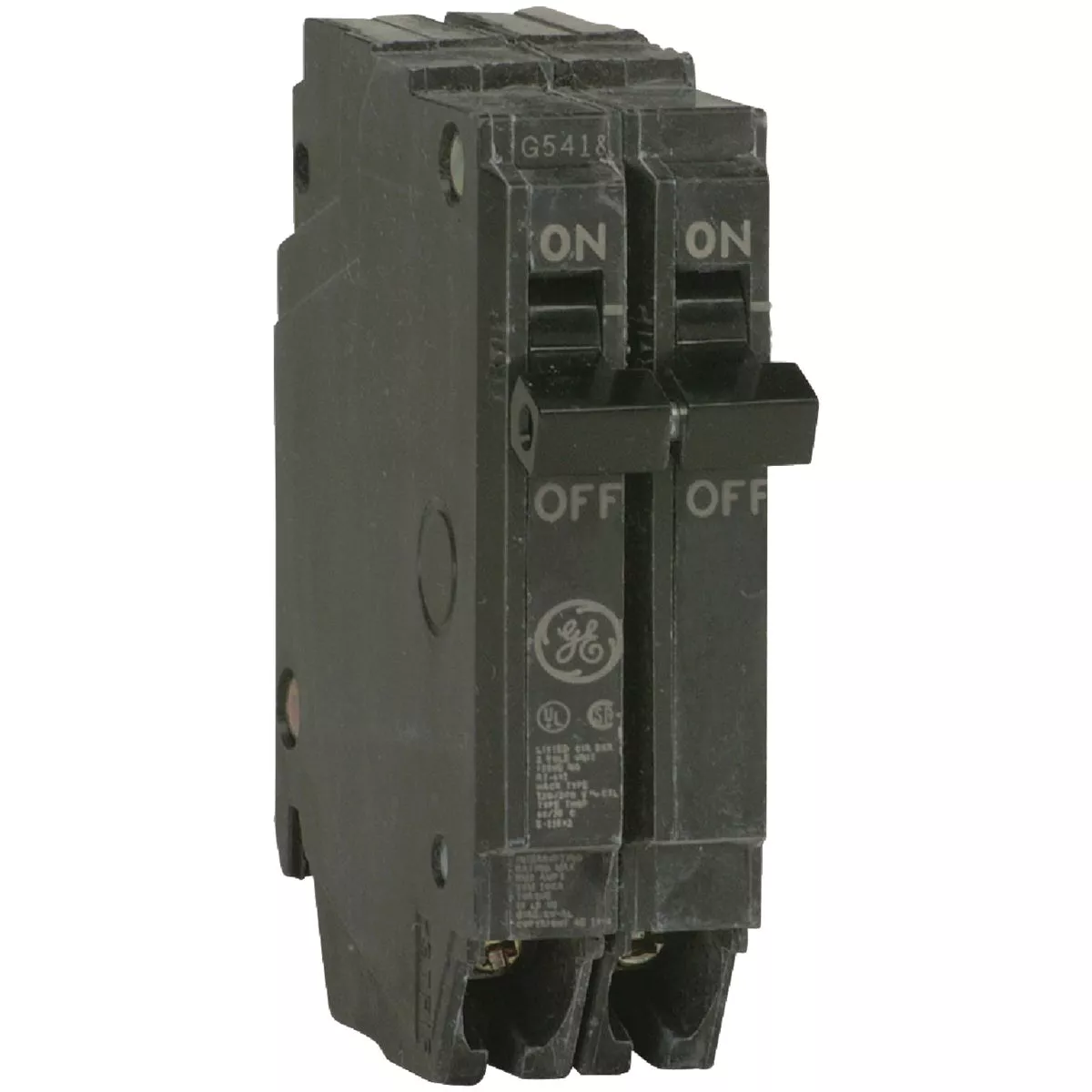

GE THQP 40A Double-Pole Standard Trip Circuit Breaker
Model #THQP240Item #533550UPC 00783164085754
Tap to view
Product overview
Q-Line circuit breaker. Features a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. Tin-plated copper stab creates a reliable, permanent, and corrosion resistant connection. Case is made of heat resistant thermoset for stability and structural integrity. Box type terminals, trips to center position. Meets NEMA (National Electrical Manufacturer's Association) standards. ANSI (American National Standards Institute) and CSA (Canadian Standards Association) certified.
- Dedicated calibration screw which is cemented to prevent shifting
- Tin-plated copper stab creates a reliable, permanent, and corrosion resistant connection
- Case is made of heat resistant thermoset for stability and structural integrity
- Box type terminals, trips to center position
- Meets NEMA standards
- ANSI/CSA/UL Listed
Specifications
| Amperage | 40 |
| Voltage | 120/240 |
| Number Of Poles | 2 |
| Mount Type | Plug-In |
| Wire Size | #8-4 AWG |
| Certification | ANSI/CSA/UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 1-Space |
| Width (In.) | 0.5 |
| Brand | GE |
| UPC | 00783164085754 |
| Product type | Circuit Breaker |
