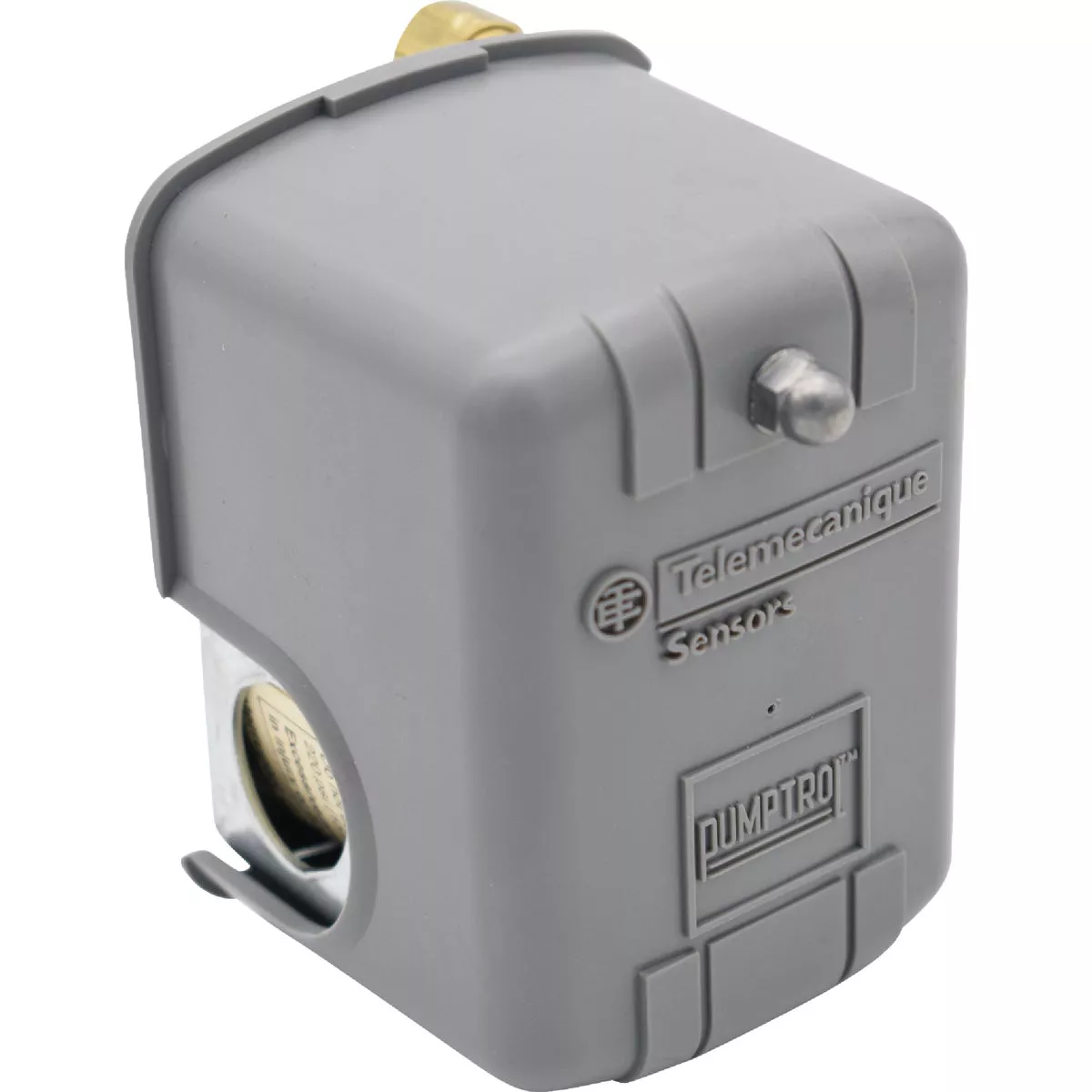

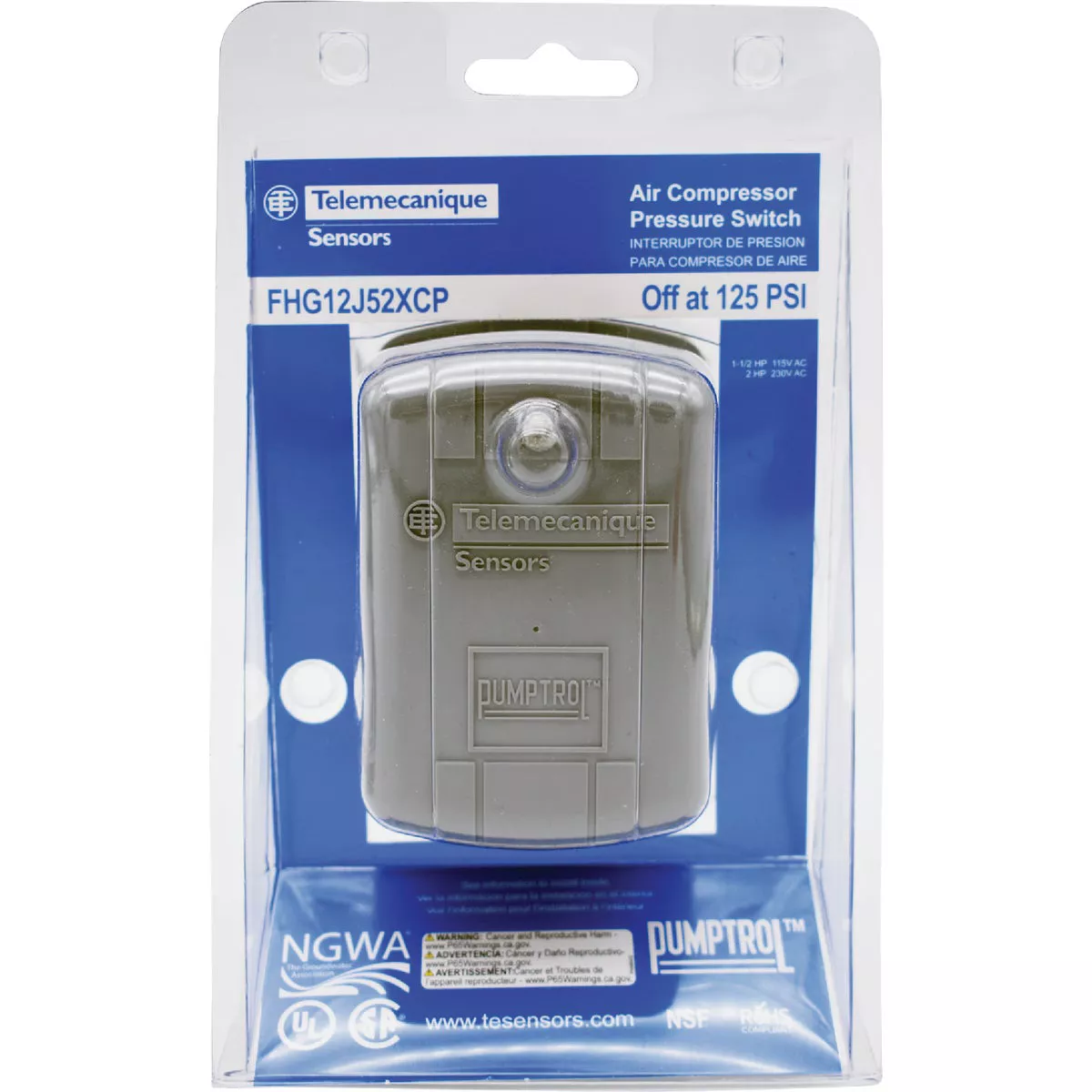

Telemechanique Sensors 2-Way Valve FHG Compressor Pressure Switch
Tap to view
Product overview

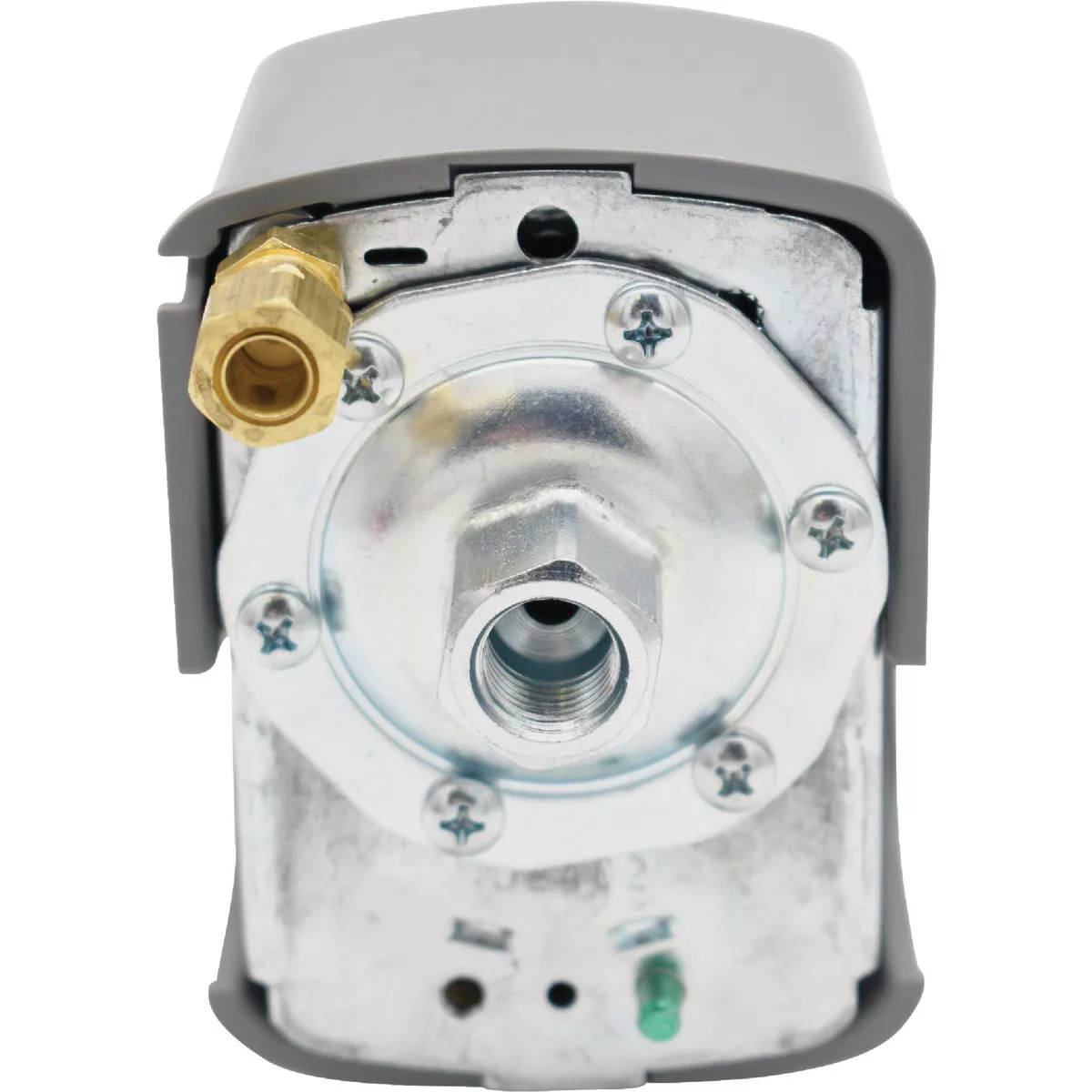

Type FHG pressure switches are designed for the control of small electrically driven air compressors. Controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 125 psi. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure. The non-adjustable differential is 30 psi and the adjustable cut-out range is 70 psi to 150 psi. The switch has a 1/4 In. NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less.
- Switch is diaphragm actuated and has a fixed differential
- The threshold or setting point, upon rising adjusts with a screw nut
- Drift proof cut-in and cut-out settings
- Visible vertical contacts are easy to inspect
- Switch is UL listed and CSA certified
Product manuals and information
- Buying Guides
- Related Product Articles
-
California Prop-65 Warning WARNING:
This product can expose you to chemicals including Lead and lead compounds which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
WARNING:This product can expose you to chemicals including Lead and lead compounds which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- Request Safety Data Sheet (SDS)
Specifications
| Pressure Rating | 70 to 150 psi |
| Type | 2-Way Valve |
| Grade | FHG |
| Brand | Telemechanique Sensors |
| UPC | 00047569178245 |
