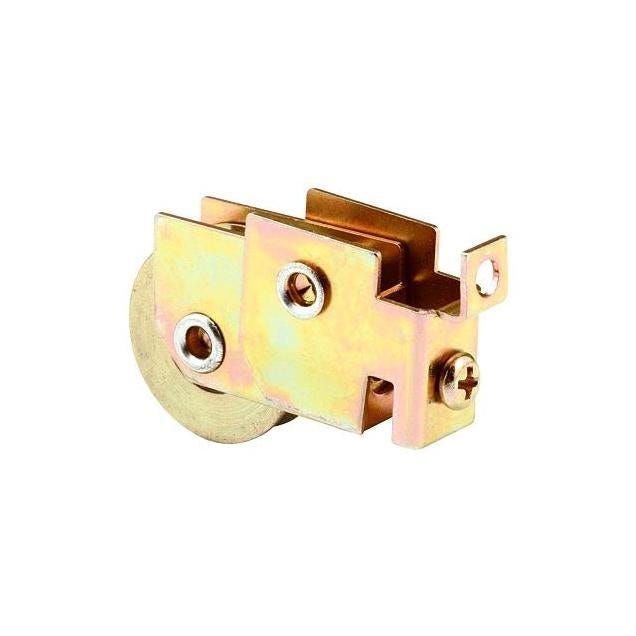

Slide-Co 1-1/4 In. Sliding Door Roller Assembly
Model #D 1686Item #SJ4GJQ UPC 00049793016867
Tap to view
Product overview
This is a F-tab patio door roller assembly with a 1-1/4 In. concave steel ball bearing roller. When the corner screw passes through the F-tab it is captured by the side stile and bottom rail as the screw draws the two sides together. The housing is 9/16 In. wide with a flare width of 11/16 In., 1-1/8 In. tall and 1-1/4 In. long (not including the inner roller housing). It has a rear adjusting screw. Used by a variety of patio door manufacturers.
- Used by a variety of metal sliding patio door manufacturers
- As the corner screw passes through the F-tab it is captured by the side stile and bottom rail as the screw draws the two sides together
- 1-1/4 In. diameter ball bearing concave roller
- Stamped steel housing and roller
- F-tab housing
- Rear adjusting screw
- A Phillips head screwdriver is required for installation
- For further dimensional information, please see the line drawing
Specifications
| Brand | SLIDE-CO |
| UPC | 00049793016867 |
| Product type | Pocket Door Roller Assembly |
