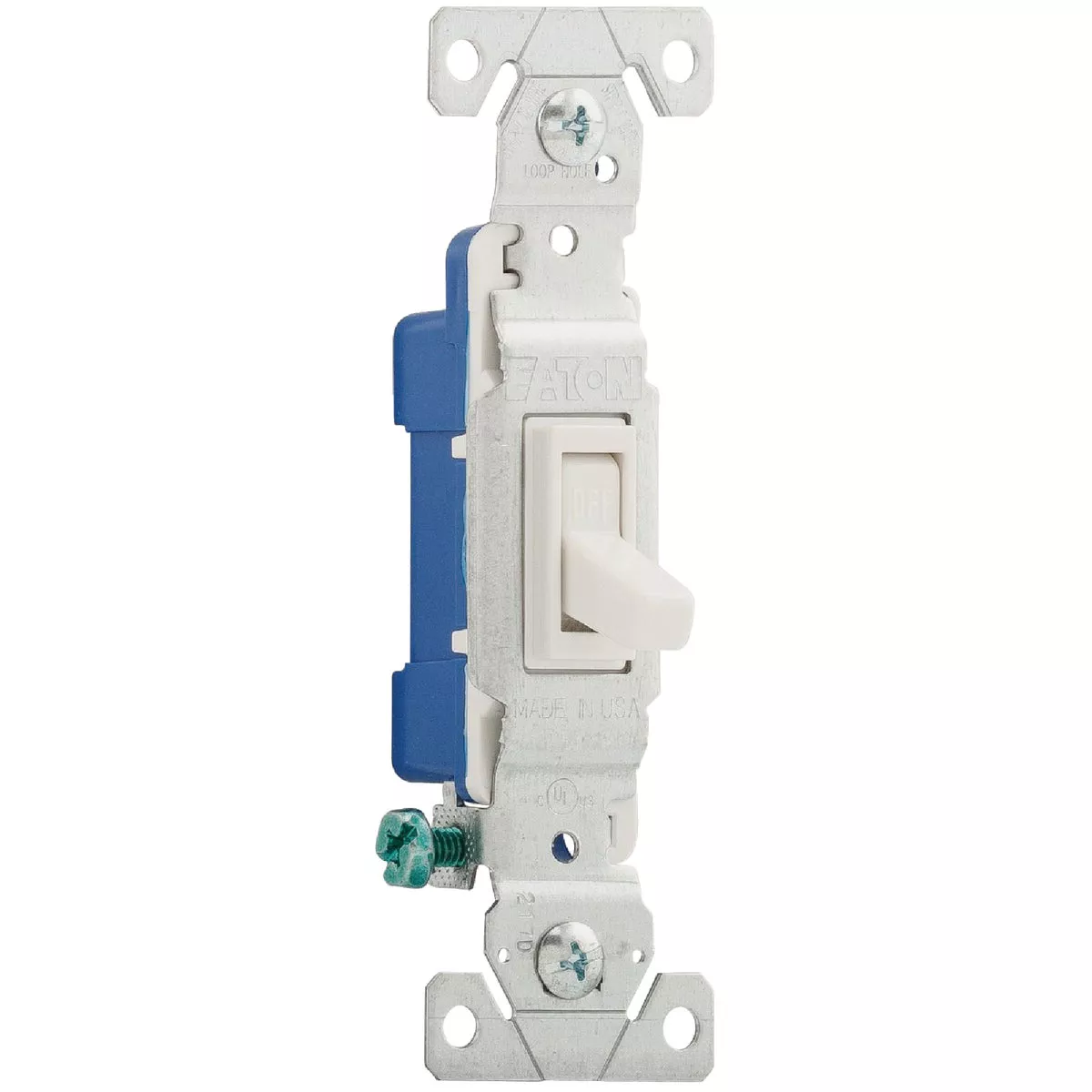

Eaton SP Residential Grade 15A Single Pole Switch, White
Model #1301-7WItem #VJJNXTUPC 00032664750878
Tap to view
Product overview
Toggle switch. Flush mount, side and push. Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, Halogen. Polycarbonate construction. #14-10 AWG, 15A.
- Controls light from one location
- Push-in terminals accept #14 AWG solid wire only; side wire terminals accept up to #10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Built-in wire stripper for #12 and #14 AWG wire to speed up installation
- Tri-combo screws accept Slotted, Phillips
Specifications
| Color | WHITE |
| Material | Thermoplastic |
| Amperage | 15 |
| Voltage | 120 |
| Grade | Residential |
| Certification | cULus Listed |
| Switch Type | Toggle |
| Horsepower | 0.5 |
| Termination | Side/Push |
| Brand | Eaton |
| UPC | 00032664750878 |
| Product type | Single Pole Switch |
