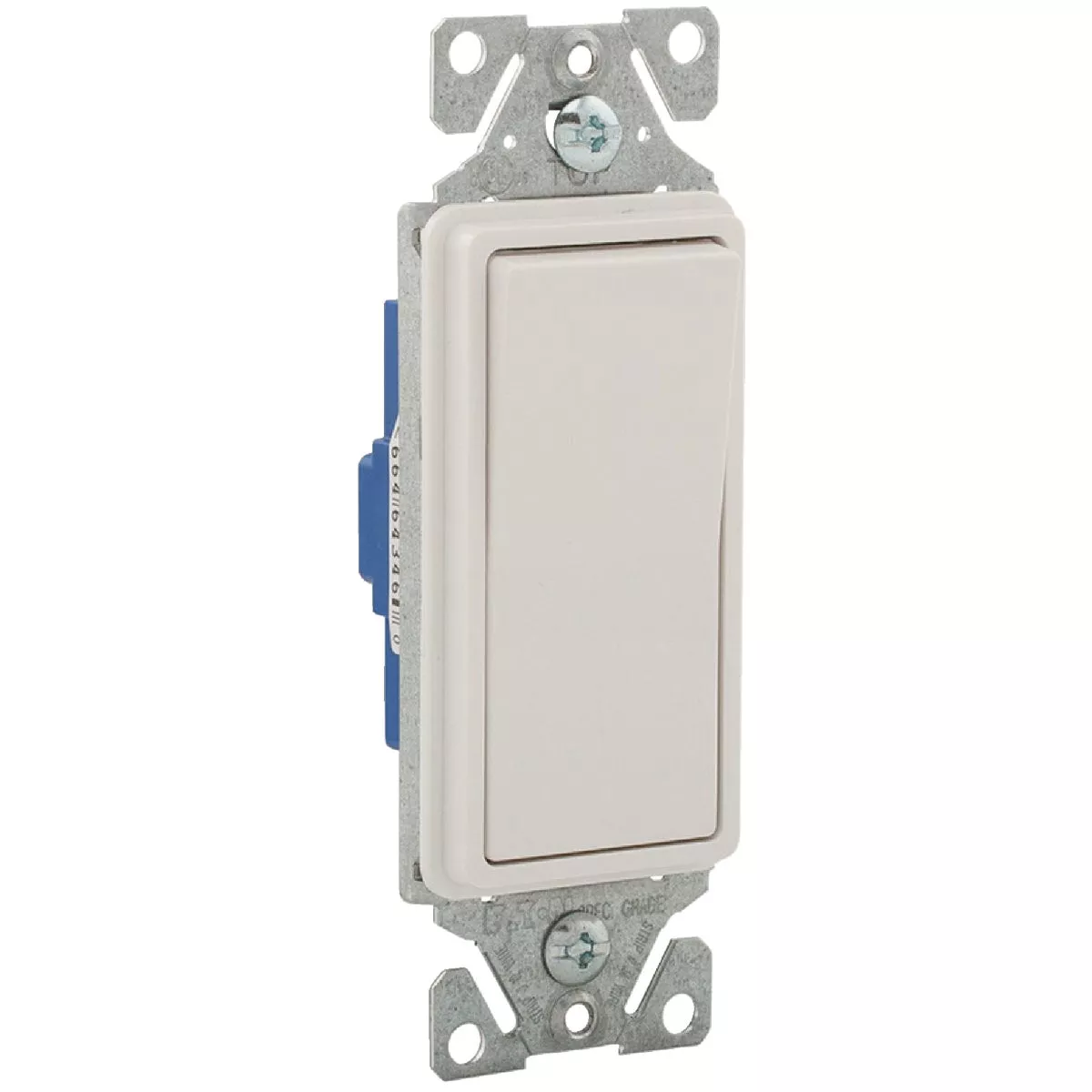

Eaton SP Residential Grade 15A Decorative Switch, White
Model #C7501W-SP-LItem #X35SXRUPC 00032664644191
Tap to view
Product overview
Standard grade decorator switch. Flush mount, back/push. Motor control, fan, LED, incandescent, ELV,MLV,CFL, fluorescent, halogen. Thermoplastic construction. #14-12 AWG, 15A, 120/277V.
- Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide superior integrity
- Back wire clamps on the side terminals provide for easy installation of #12 or #14 AWG wire
- Push-in terminals accept #14 AWG solid wire
- Strippled ground screw terminal standard
- 120/277V/AC rating ideal for fluorescent lighting fixtures and a broad variety of applications
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips, and Robertson-head tools for installation flexibility
- Lighted switches glow in OFF position
Specifications
| Color | WHITE |
| Material | Thermoplastic |
| Amperage | 15 |
| Voltage | 120/277 |
| Grade | Residential |
| Certification | cULus Listed |
| Switch Type | Rocker |
| Horsepower | 0.5 |
| Termination | Back/Push |
| Brand | Eaton |
| UPC | 00032664644191 |
| Product type | Single Pole Switch |
