>>> > SKU 405264
|
|
|
|
2GAL EXPANSION TANK |
|
Water Worker |
|
Model:
G5L |
|
Do it Best SKU:
405264 |
|
|
|
|
|
|
|
|
|
|
Free Shipping: Ship-to-Store
At participating locations
Arrives in 7-10 business days
Learn More
|
|
|
|
|
Water Worker
|

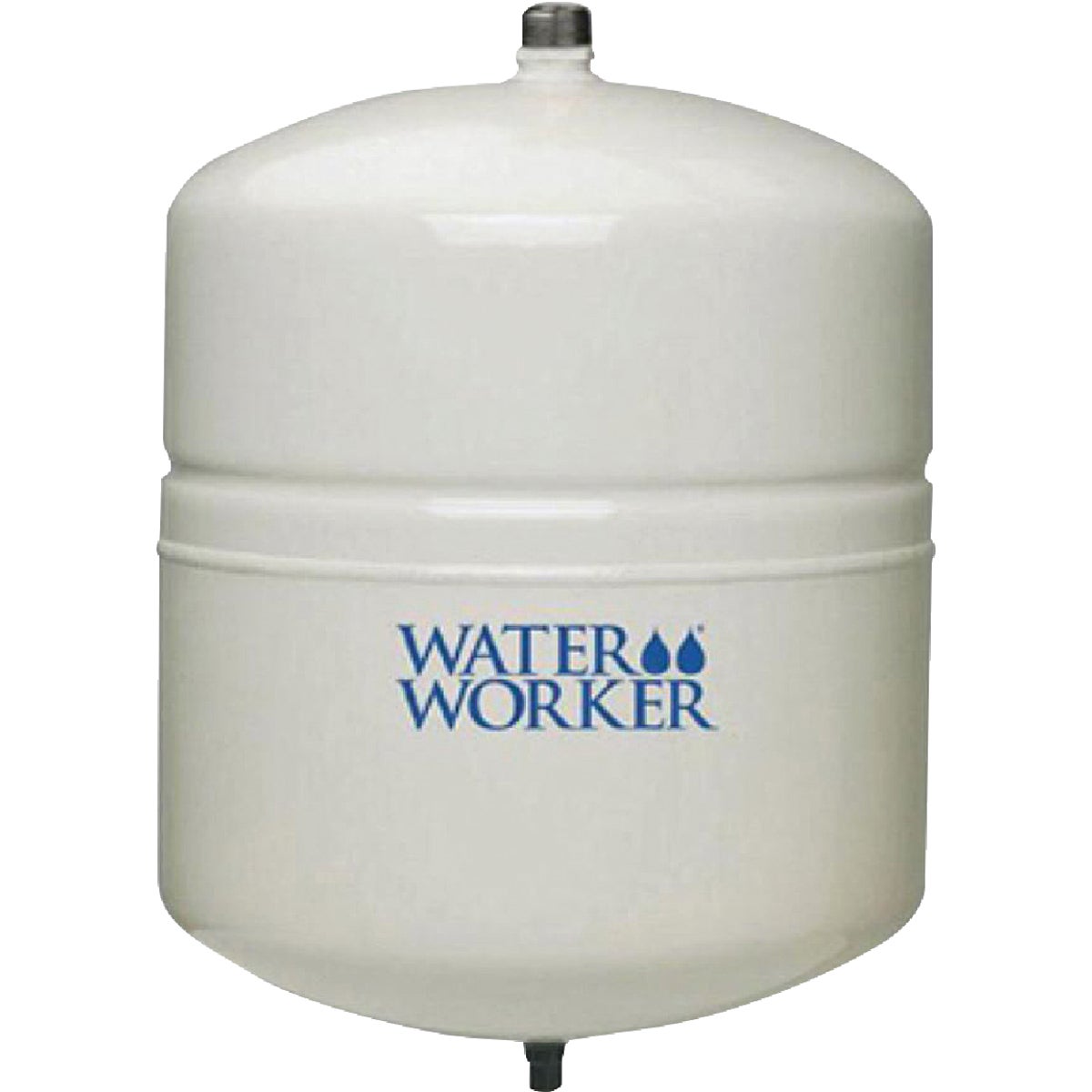

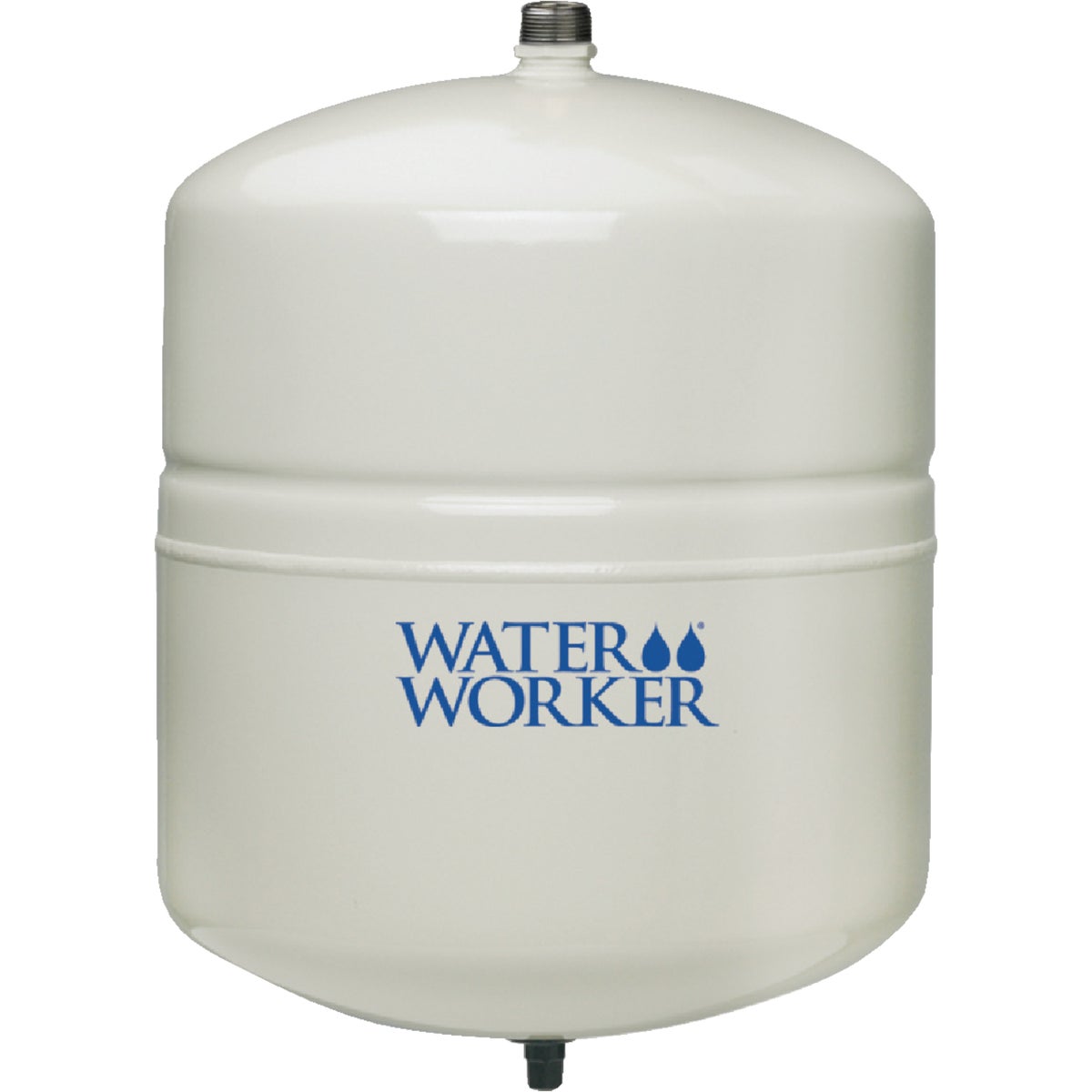

Thermal Expansion Tank With Male Pipe Thread
Diaphragm-type pre-pressurized expansion tank specifically designed for potable hot water systems. These tanks control water pressure build-up and eliminate relief valve spillage caused by thermal expansion when water is heated. 3/4" Male pipe thread connection. Requires no maintenance. Required by code in many counties and states. Use model No. 993-024 for self-piercing valve. Specifications: Models G5, G5L, G12, G12L; Maximum allowable working temperature: 200 deg. F.; Standard factory precharge: 40PSIG (Relief valve must be set at 150PSIG). Maximum pressure maintained at least 10% below relief valve setting (150PSIG); Models are listed with IAPMO (International Association of Plumbing and Mechanical Officials) and SBCCI (Southern Building Code Congress International); Models are NSF (National Sanitation Foundation) Listed forliner only. |
|
|
|
|
|
