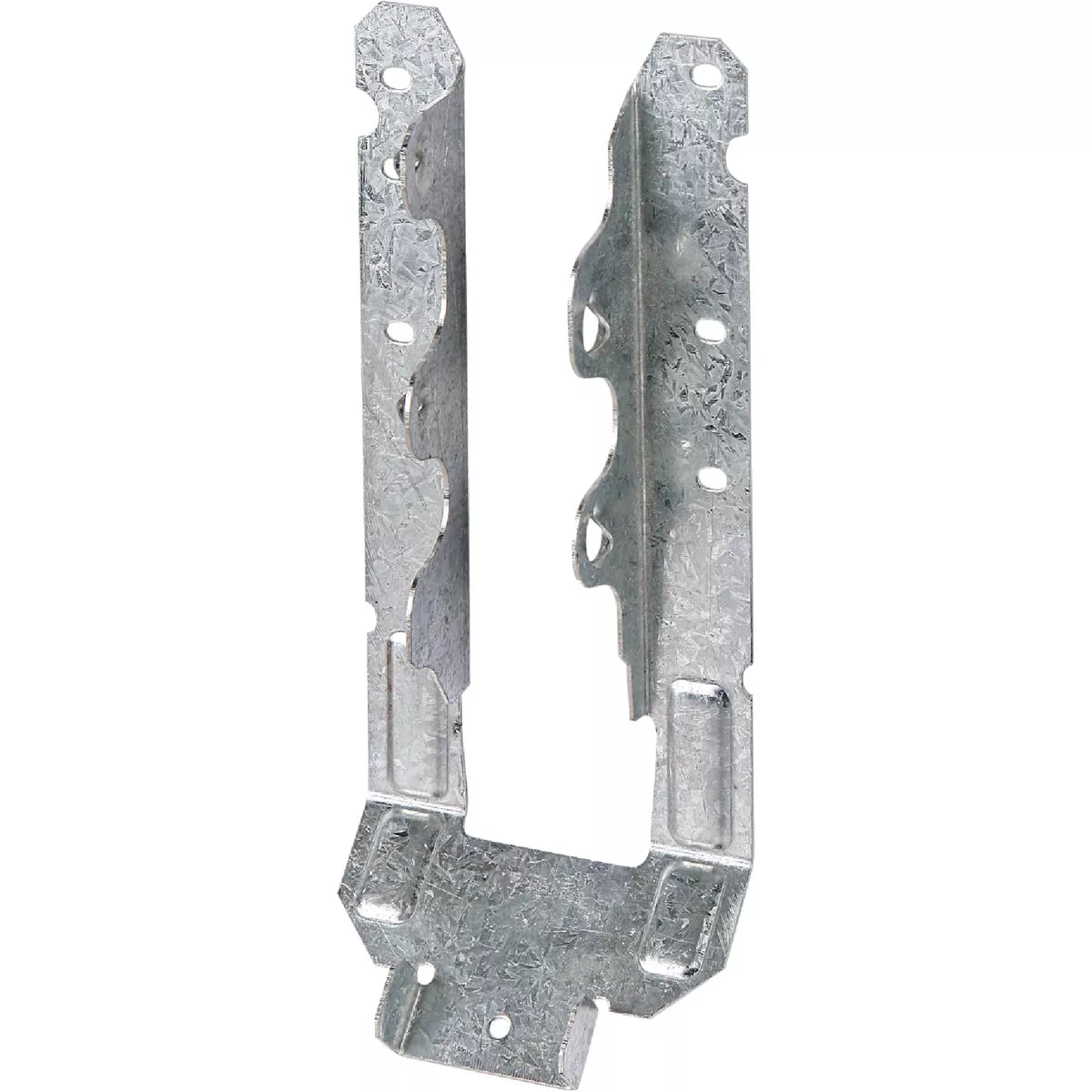

Simpson Strong-Tie ZMax 2 In. x 8 In. Rafter Hanger
Model #LRU28ZItem #100220UPC 00707392168331
Tap to view
Product overview
An economical alternative for those applications requiring a sloped hanger for rafter-to-ridge connections. Used with solid-sawn rafters, the unique design enables the hanger to be installed either before or after the rafter is in place. Maximum C1 force (compressive force applied over end post).
- Field adjustable seat to improve job efficiency
- For retro fit or new applications
- 1-9/16" W x 6-15/16" H x 1-15/16" B
- Z-Max
Specifications
| Material | Steel |
| Finish | Z-Max |
| Size | 1-9/16\ W x 6-15/16\ H x 1-15/16\ B |
| Gauge | 18 ga |
| Install With | Face 6-10d, Joist 5-10d |
| Maximum C1 Force | 2-5/8 In. |
| Brand | Simpson Strong-Tie |
| UPC | 00707392168331 |
| Product type | Rafter Hanger |
