Product overview

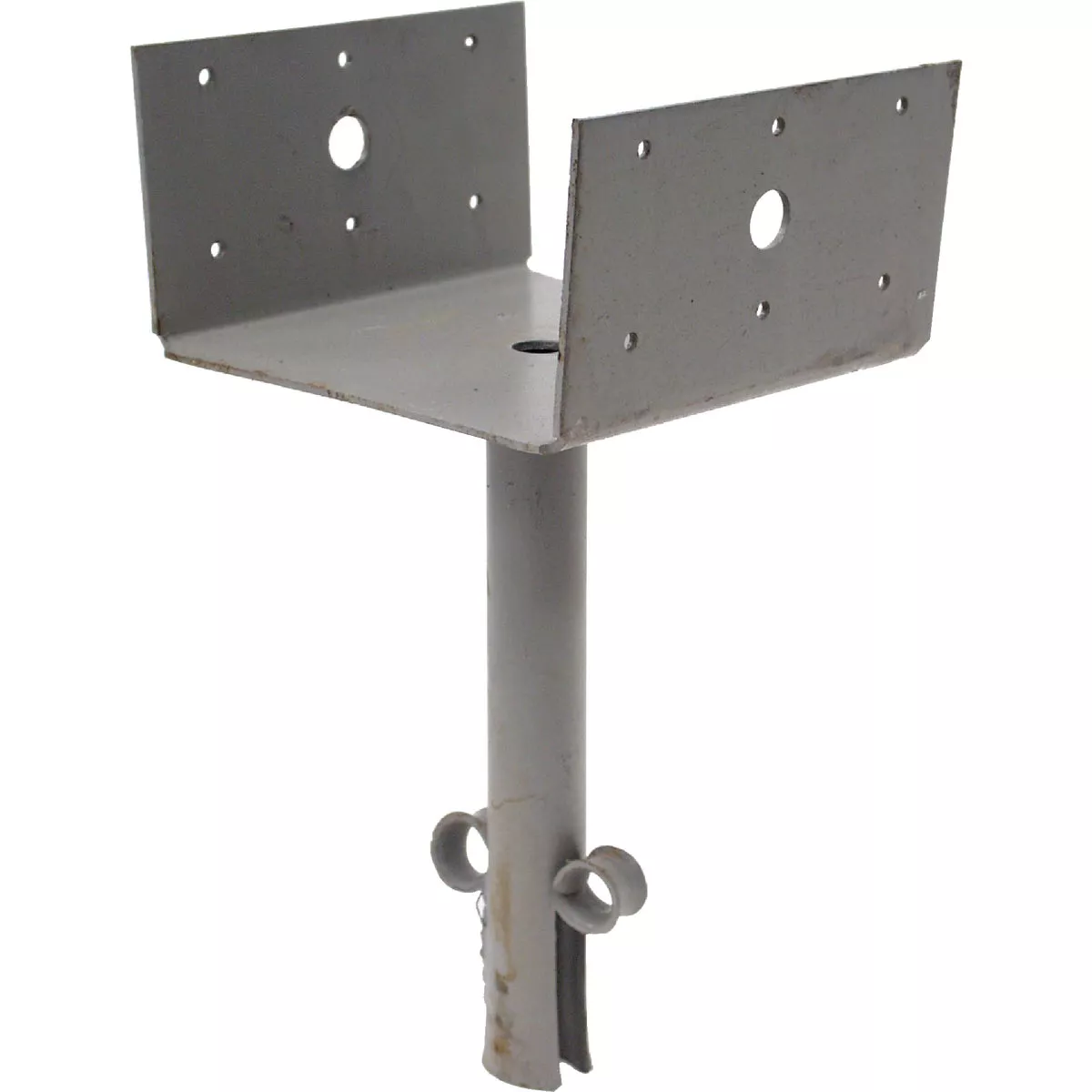

The EPB series provides a connection between a post (or column) for decks, patio covers and other top-supported structures. Added standoff adjustability to suit a variety of applications. Install in wet concrete. Simpson Strong-Tie elevated base plate allows 1 In. to 2-1/2 In. clearance above concrete. 12-gauge base plate, 1-1/16 In. O.D. x 8 In. or 12 In. pipe. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports). Simpson Strong-Tie gray paint (may be ordered HDG-hot dip galvanized).
- For top-supported structures
- 6 In. x 6 In.
- Gray Paint
Product manuals and information
- Buying Guides
- Related Product Articles
-
California Prop-65 Warning WARNING:
Cancer. www.p65warnings.ca.gov
WARNING:Cancer. www.p65warnings.ca.gov
- Request Safety Data Sheet (SDS)
Specifications
Material | Steel |
Type | Elevated |
Finish | Gray Paint |
Size | 6 In. x 6 In. |
Gauge | 12ga |
Install with | 12-16d Nails |
Dimensions | 5-1/2 In. W x 5-1/2 In. L x 3 In. H |
Uplift | 995 Lb. Non-Cracked; 695 Lb. Cracked |
Download | 3465 Lb. |
Brand | Simpson Strong-Tie |
UPC | 00044315204005 |
