Simpson Strong-Tie Truss Spacer Bracer
Model #TSBR2-24Item #105166UPC 10707392801204
Tap to view
Product overview

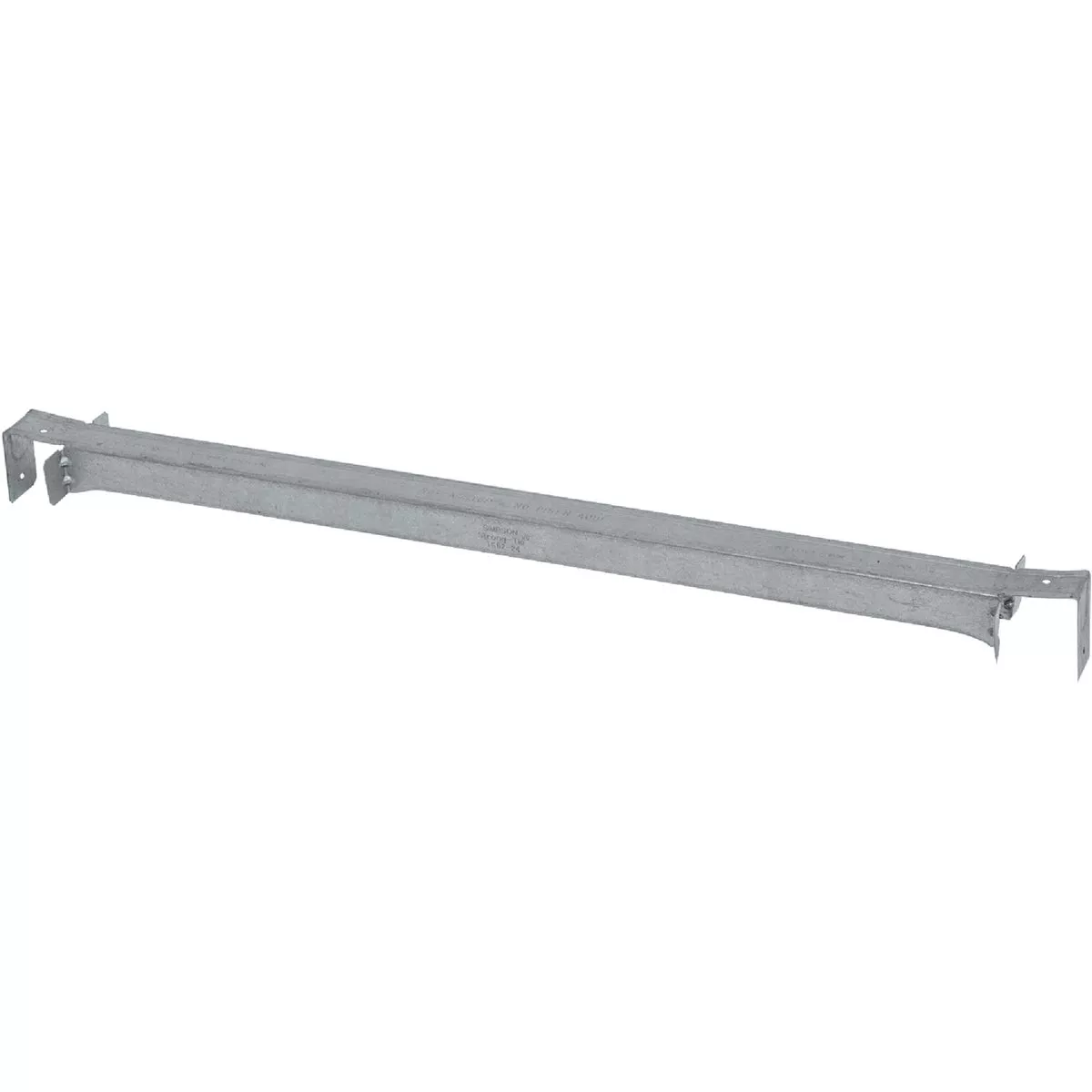

The TSBR2-24 is an innovative product that meets or exceeds current lateral bracing methods. Resists tension and compression loads equal to or greater than BCSI-03 prescriptive requirements. Does not require any field modification prior to installation. Has a low profile that can be sheathed over when used as erection bracing, eliminating the need to remove bracing prior to sheathing. Install with (4) 10d x 1-1/2" nails. 25-1/2" L. x 3-1/2" W. x 2" D. 22-gauge galvanized steel.
- Enables quick and accurate spacing of trusses without measuring or adjusting
- Improves quality and safety
- Easily grabs onto the truss
- Stays in place during sheathing
Product manuals and information
Specifications
| Width | 3-1/2 In. |
| Length | 25-1/2 In. |
| Material | Steel |
| Finish | Galvanized |
| Size | 3-1/2 In. W x 25-1/2 In. L x 2 In. D |
| Gauge | 22 |
| Install With | (4) -10d x 1-1/2 In. Fastners |
| Depth | 2 In. |
| Brand | Simpson Strong-Tie |
| UPC | 10707392801204 |
| Product type | Truss Spacer Bracer |
