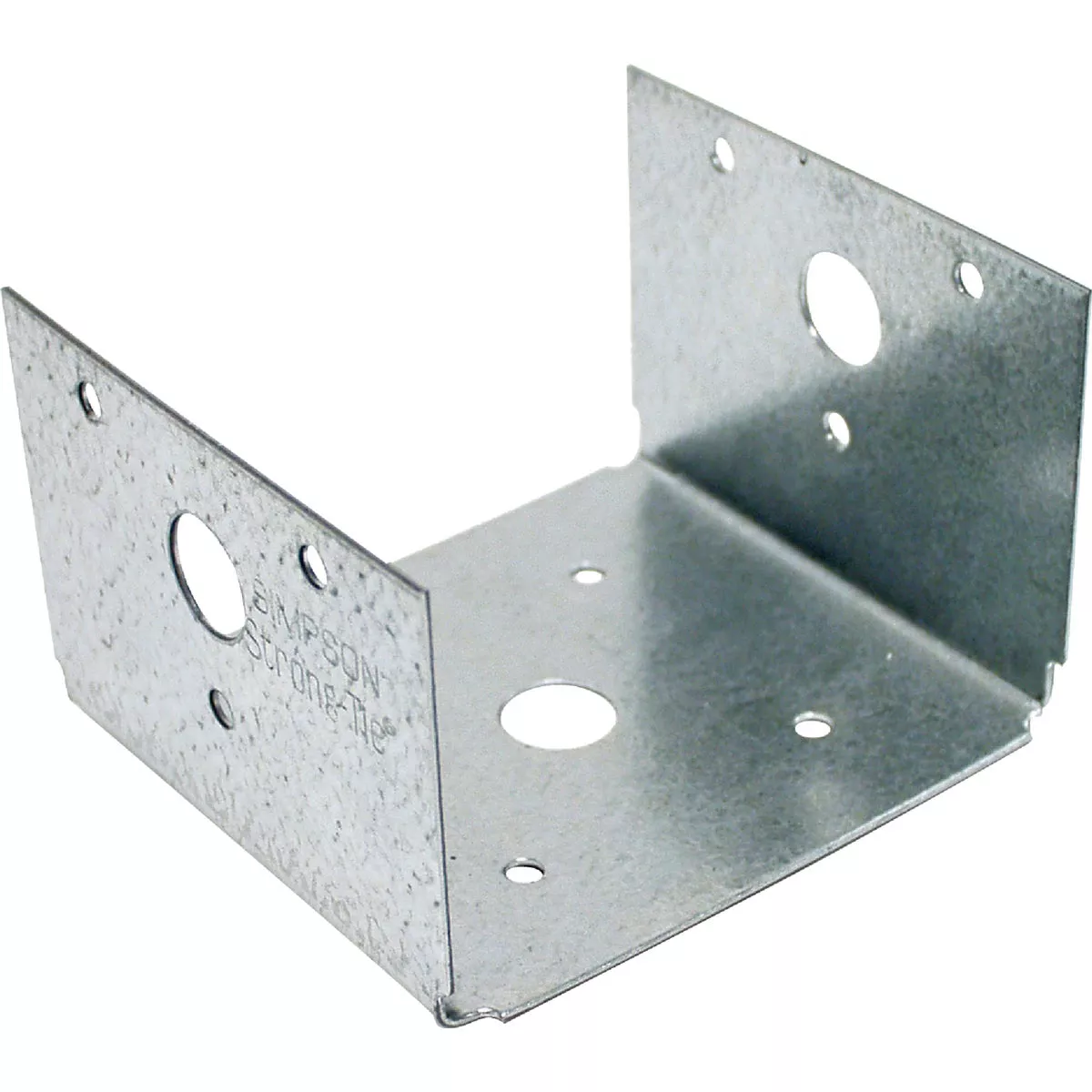

Simpson Strong-Tie 4 In. x 4 In. 18 ga Galvanized Post Cap & Half Base
Model #BC40Item #107002UPC 00044315100505
Tap to view
Product overview
The BC series offers dual-purpose post cap/base for light cap or base connections. Do not install bolts into pilot holes. Install with 16d common nails or 16d x 2-1/2" joist hanger nails. Post bases do not provide adequate resistance to prevent members from rotating about the base and are not recommended for non top-supported installations (such as fences or unbraced carports). 18-gauge galvanized steel. Some sizes available with ZMAX coating.
- Consists of base bottom and post flanges
- 4 In. x 4 In.
- Galvanized
Specifications
| Material | Steel |
| Type | Half Base |
| Finish | Galvanized |
| Size | 4 In. x 4 In. |
| Gauge | 18 ga |
| Install With | 6-16d fasteners on post flange |
| Dimensions | 3-9/16\ W x 3-1/4\ L x 2-1/4\ H |
| Brand | Simpson Strong-Tie |
| UPC | 00044315100505 |
| Product type | Post Cap & Base |
