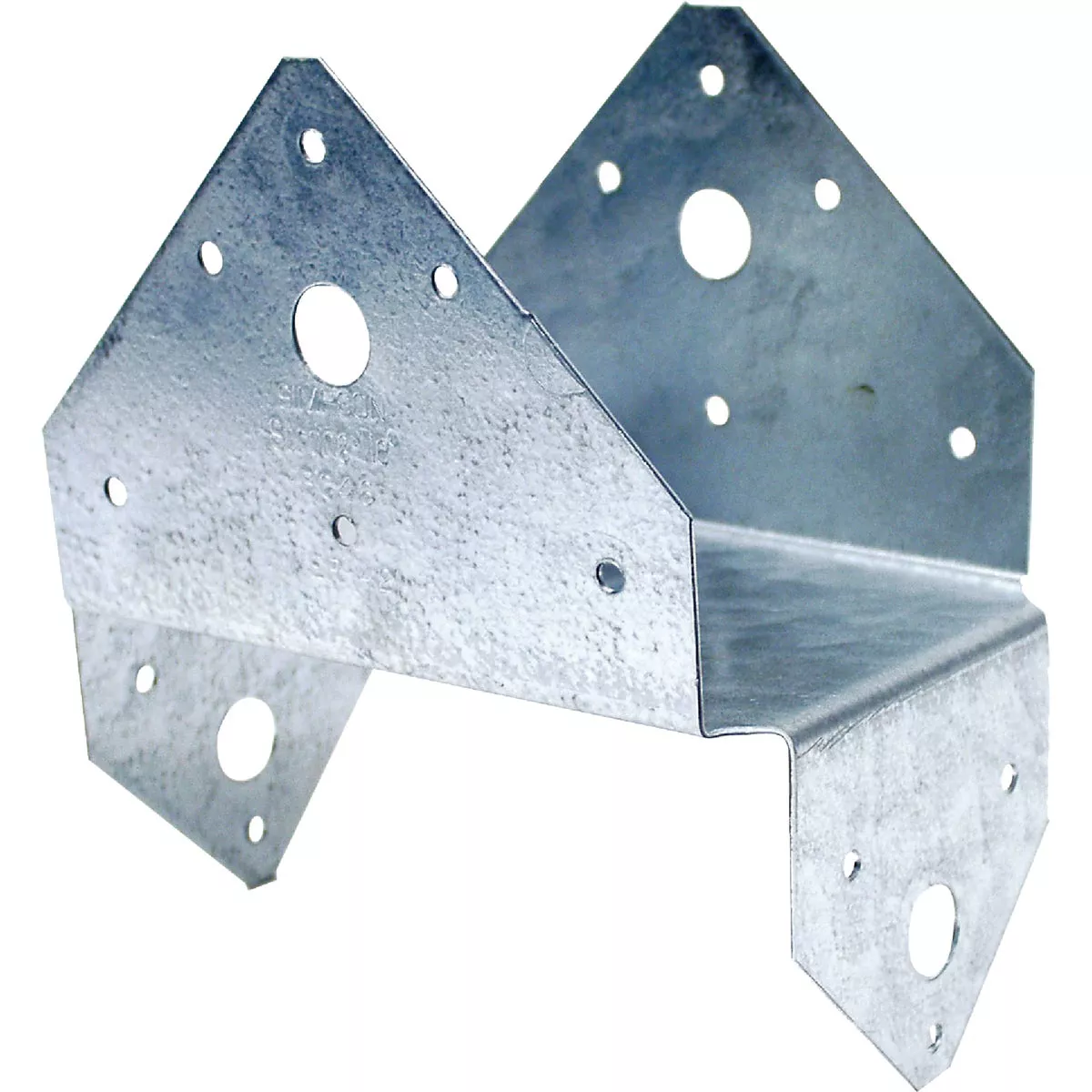

Simpson Strong-Tie 4 In. x 6 In. 18 ga Galvanized BC Post Cap & Base
Model #BC46Item #107011UPC 00044315101007
Tap to view
Product overview
The BC series offers dual purpose post cap/base for light cap or base connections. Do not install bolts into pilot holes. Install with 16d common nails or 16d x 2-1/2" joist hanger nails. Post bases do not provide adequate resistance to prevent members from rotating about the base and are not recommended for non top-supported installations (such as fences or unbraced carports). 18-gauge galvanized steel. Some sizes available in ZMAX coating.
- Beam and post flanges
- 4 In. x 6 In.
- Galvanized
Specifications
| Material | Steel |
| Type | Post Cap |
| Finish | Galvanized |
| Size | 4 In. x 6 In. |
| Gauge | 18 ga |
| Install With | 12-16d fasteners in beam flange |
| Dimensions | 3-9/16\ W x 5-1/2\ W x 4-7/8\ L |
| Brand | Simpson Strong-Tie |
| UPC | 00044315101007 |
| Product type | Post Cap & Base |
