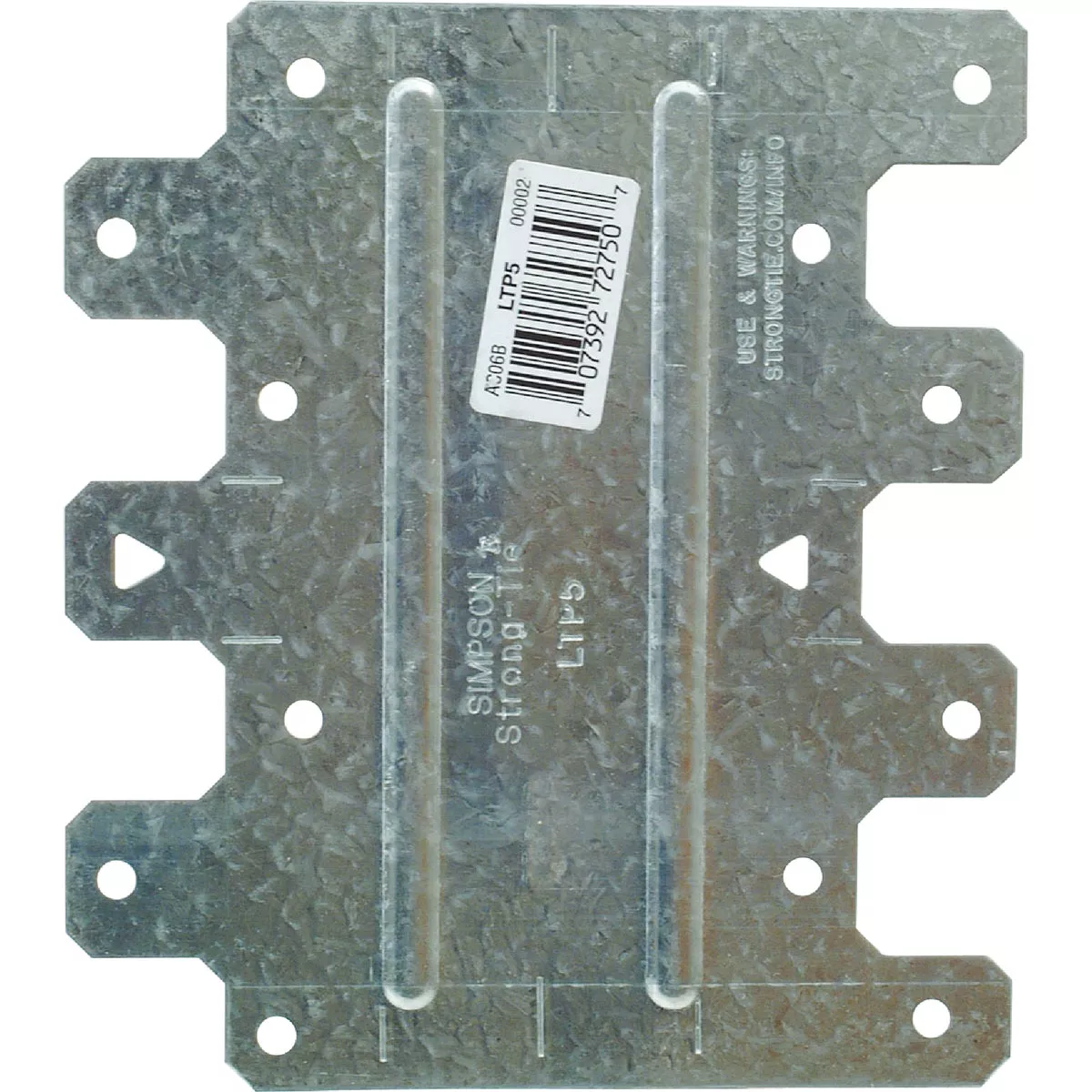

Simpson Strong-Tie 4-1/2 in. W. x 5-1/8 in. L. Galvanized Steel 20 Gauge Tie Plate
Model #LTP5Item #107220UPC 00707392727507
Tap to view
Product overview
Transfers shear forces for top plate-to-rim joist or blocking connections. Nail holes are spaced to prevent wood splitting for single and double top plate applications. May be installed over plywood sheathing. 20-gauge galvanized steel. Also available with ZMAX coating.
- Nail holes spaced to prevent wood splitting
- 4-1/2 In. W. x 5-1/8 In. L.
- Galvanized
Product manuals and information
Specifications
| Material | Galvanized Steel |
| Finish | Galvanized |
| Size | 4-1/2 In. W. x 5-1/8 In. L. |
| Gauge | 20 ga |
| Number of Holes | 12 |
| Install With | 8d x 1-1/2 In. nails |
| Brand | Simpson Strong-Tie |
| UPC | 00707392727507 |
| Product type | Tie Plate |
