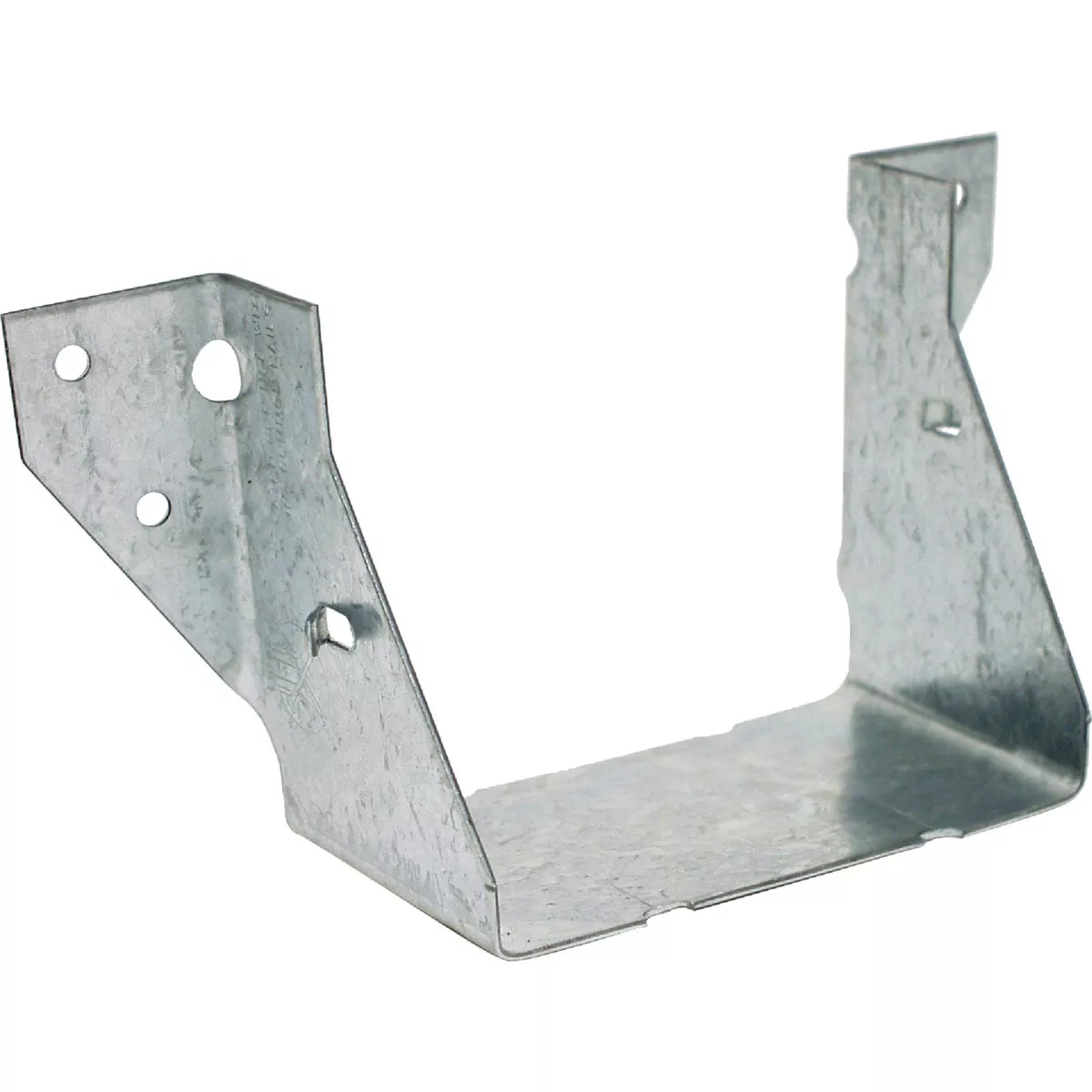

Simpson Strong-Tie Galvanized 4 x 4 Face Mount Joist Hanger
Model #LUS44Item #107253UPC 00044315686207
Tap to view
Product overview
The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- LUS-series hangers are tested, load rated and code compliant
Product manuals and information
Specifications
| Material | Steel |
| Type | Double Shear |
| Finish | Galvanized |
| Size | 3-9/16 In. W x 3 In. H x 2 In. Base |
| Gauge | 18 |
| Install With | 4-16d Nails on header, 2-16d Nails Joist |
| Joist Size | 4 In. x 4 In. |
| Width (In.) | 3.5625 |
| Height (In.) | 3 |
| Base (In.) | 2 |
| Brand | Simpson Strong-Tie |
| UPC | 00044315686207 |
| Product type | Joist Hanger |
