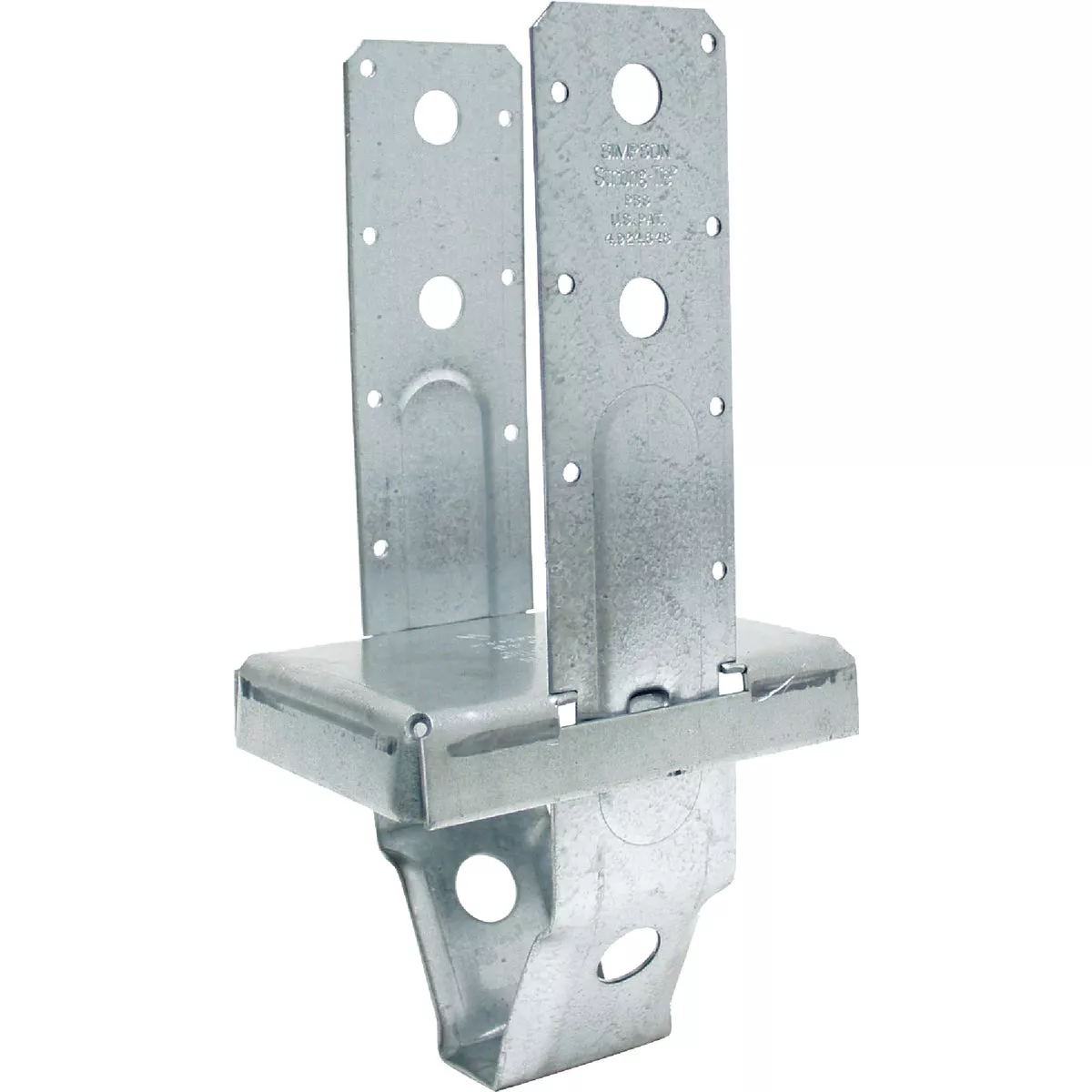

Simpson Strong-Tie 4 In. x 6 In. 12 ga base Z-Max Post Base

Model #PBS46 Item #107388 UPC 00044315064968
Tap to view
Product overview
Embed into wet concrete up to the bottom of the 1" standoff base plate. A 2" minimum side cover is required to obtain the full load. Holes in the bottom of the straps allow for free concrete flow. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or carports). Galvanized steel. 12-gauge base. Some sizes available with ZMAX coating. Install with 14-16d commons and (2) 1/2" diameter machine bolts.
  • Holes in bottom for free concrete flow
  • 4 In. x 6 In.
  • Z-Max
Material Steel
Type Standoff
Finish Z-Max
Size 4 In. x 6 In.
Gauge 12ga base, 14ga strap
Install with 14-16d common & (2) 1/2\ dia mach bolt
Dimensions 3-9/16\ W x 5-7/16\ L x 6-9/16\ H
Uplift 1235 Lb. Non-Cracked, 865 Lb. Cracked
Download 14420 Lb.
Brand Simpson Strong-Tie
UPC 00044315064968
