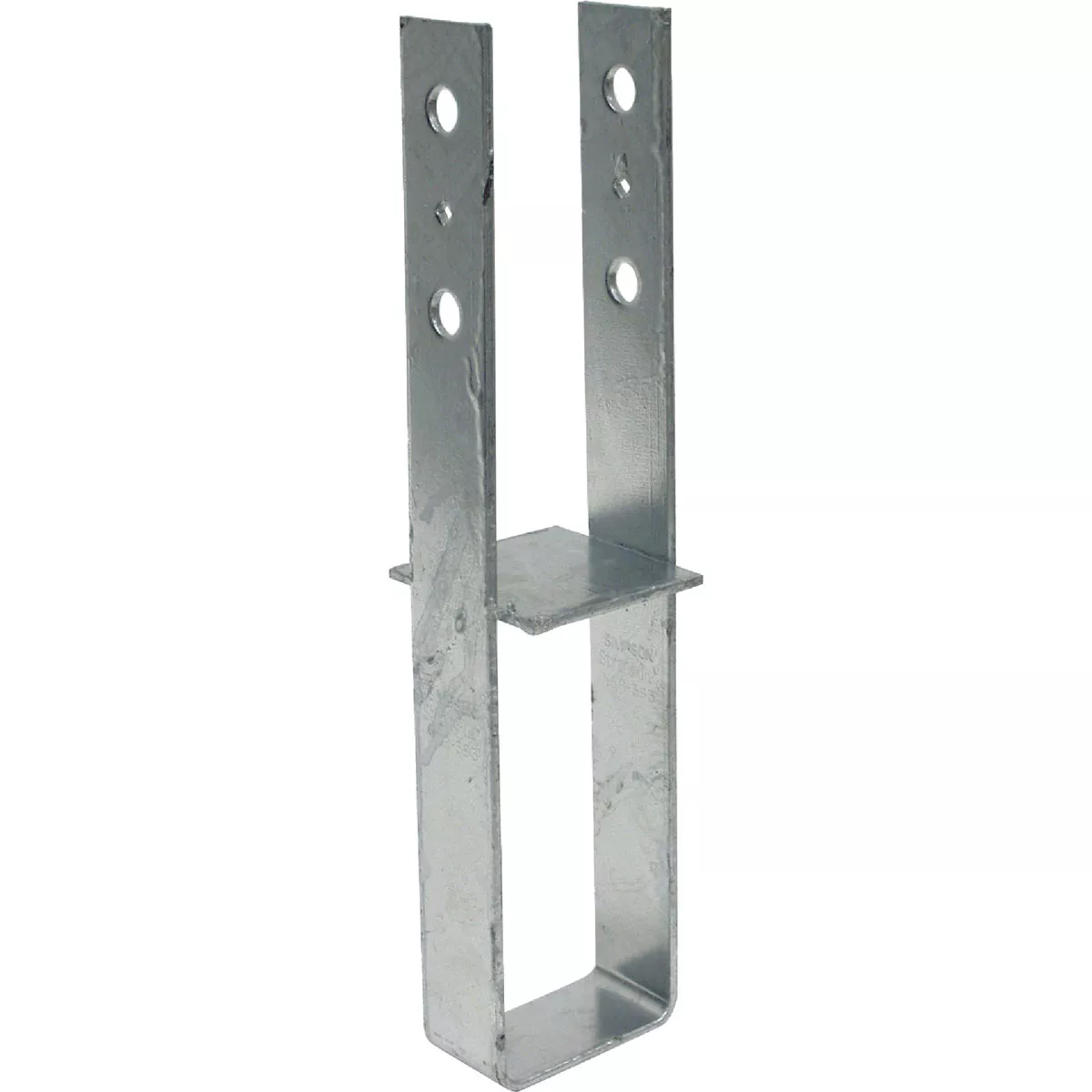

CB Hot-Dip Galvanized Column Base for 4x4
Model #CB44HDGItem #107752UPC 00044315228209
Tap to view
Product overview
The column base is designed to connect posts to concrete foundations for a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The column base is ideal for columns that require high structural values and rugged performance.
- Helps connect posts to concrete
- Accommodates glulam and solid sawn members
- Use with 4x4 to 12x12 members
- bolt hole locations meet code-required spacing for optimal capacity
- Hot Dipped Galvanized
Specifications
| Width | 3-9/16 In. |
| Material | Steel |
| Finish | Hot Dipped Galvanized |
| Gauge | 7 |
| Dimensions | 3-9/16 W x 3-9/16 W x 8 D |
| Post Size | 4 In. x 4 In. |
| Depth | 3-9/16 In. |
| Brand | Simpson Strong-Tie |
| UPC | 00044315228209 |
| Product type | Column Base |
