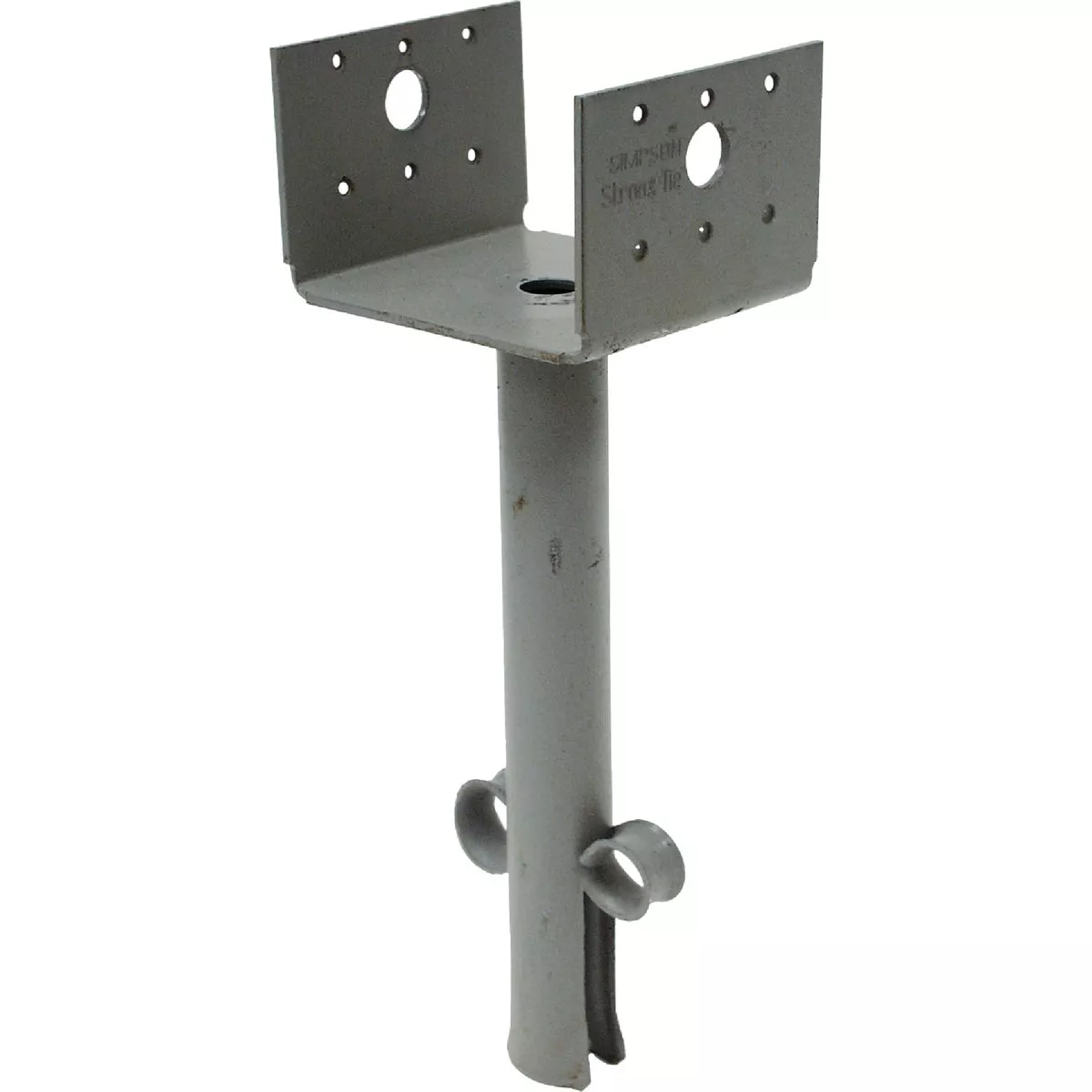

Simpson Strong-Tie 4 In. x 4 In. 12 ga Gray Paint Elevated Post Base
Model #EPB44Item #107770UPC 00044315202001
Tap to view
Product overview
The EPB series provides a connection between a post (or column) for decks, patio covers and other top-supported structures. Added standoff adjustability to suit a variety of applications. Install in wet concrete. Simpson Strong-Tie elevated base plate allows 1 In. to 2-1/2 In. clearance above concrete. 12-gauge base plate, 1-1/16 In. O.D. x 8 In. or 12 In. pipe. Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports). Simpson Strong-Tie gray paint (may be ordered HDG-hot dip galvanized).
- For top-supported structures
- 4 In. x 4 In.
- Gray Paint
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
Cancer. www.p65warnings.ca.gov
WARNING:Cancer. www.p65warnings.ca.gov
- Request Safety Data Sheet (SDS)
Specifications
| Material | Steel |
| Type | Elevated |
| Finish | Gray Paint |
| Size | 4 In. x 4 In. |
| Gauge | 12ga |
| Install With | 8-16d Nails |
| Dimensions | 3-9/16 In. W x 3-1/4 In. L x 2-5/16 In H |
| Uplift | 995 Lb. Non-Cracked; 695 Lb. Cracked |
| Download | 3465 Lb. |
| Brand | Simpson Strong-Tie |
| UPC | 00044315202001 |
| Product type | Post Base |
