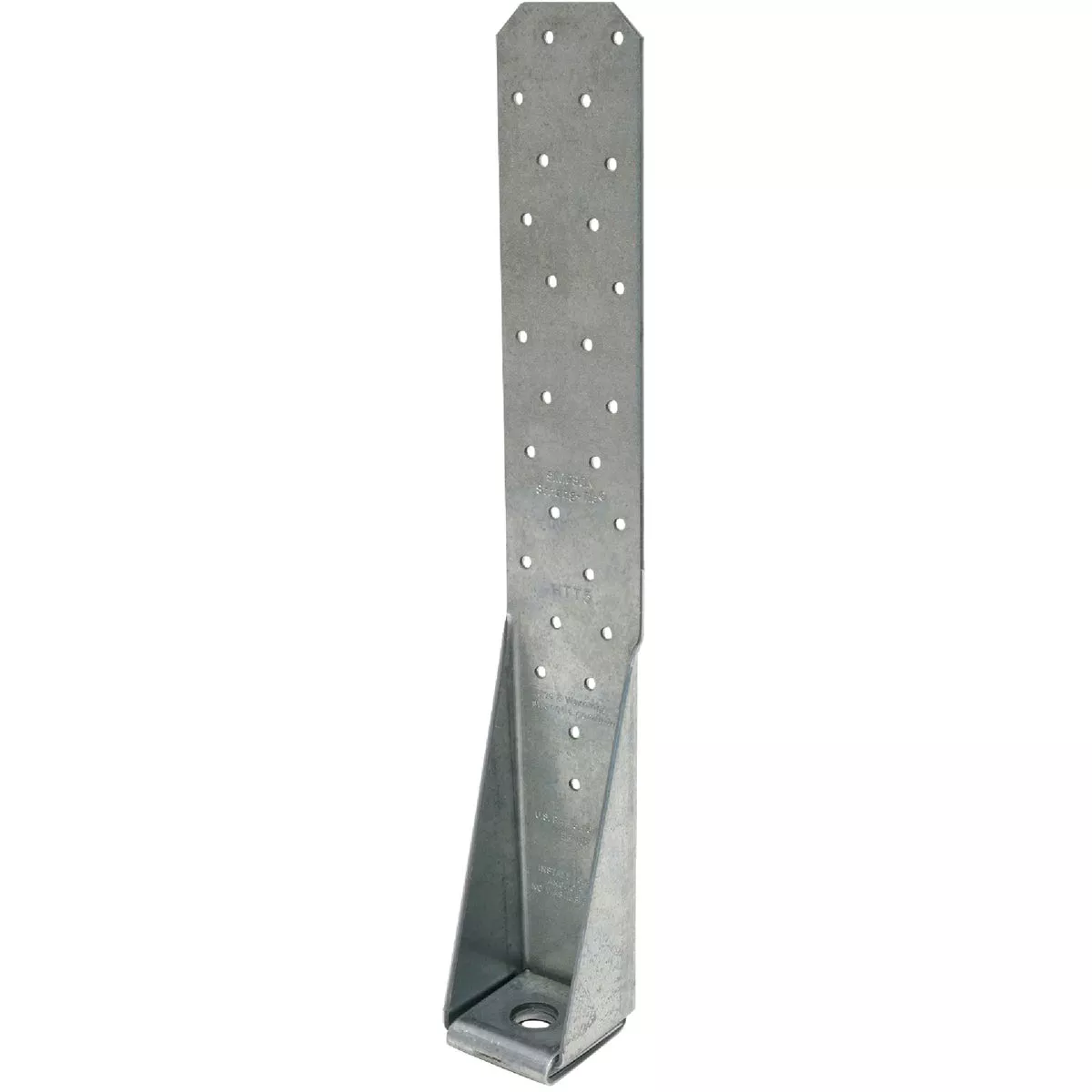

Simpson Strong-Tie 2-1/2 in. 16 in. 1-3/8 in. Tension Tie
Model #HTT5Item #109484UPC 00707392617907
Tap to view
Product overview
Tension ties offer a solution for resisting tension loads that are fastened with nails. Model No. HTT5 is the latest generation of tension ties. It features an optimized nailing pattern which results in better performance with less deflection. Designed to meet new code standards. It may be installed raised up to 18 In. above top of concrete with no load reduction provided that additional elongation of the anchor rod is accounted for. Galvanized. 1-3/8 In. center line.
- 4-ply formed seat
- Designed without rivets
- Does not require washers
- 2-1/2 In.
- 16 In.
Product manuals and information
Specifications
| Width | 2-1/2 In. |
| Length | 16 In. |
| Finish | Galvanized |
| Fasteners | 26-10d x 1-1/2\, 26-10d & 26-16d x 2-1/2 |
| Center Line | 1-3/8 In. |
| Seat Thickness | 7/16 In. |
| Brand | Simpson Strong-Tie |
| UPC | 00707392617907 |
| Product type | Tension Tie |
