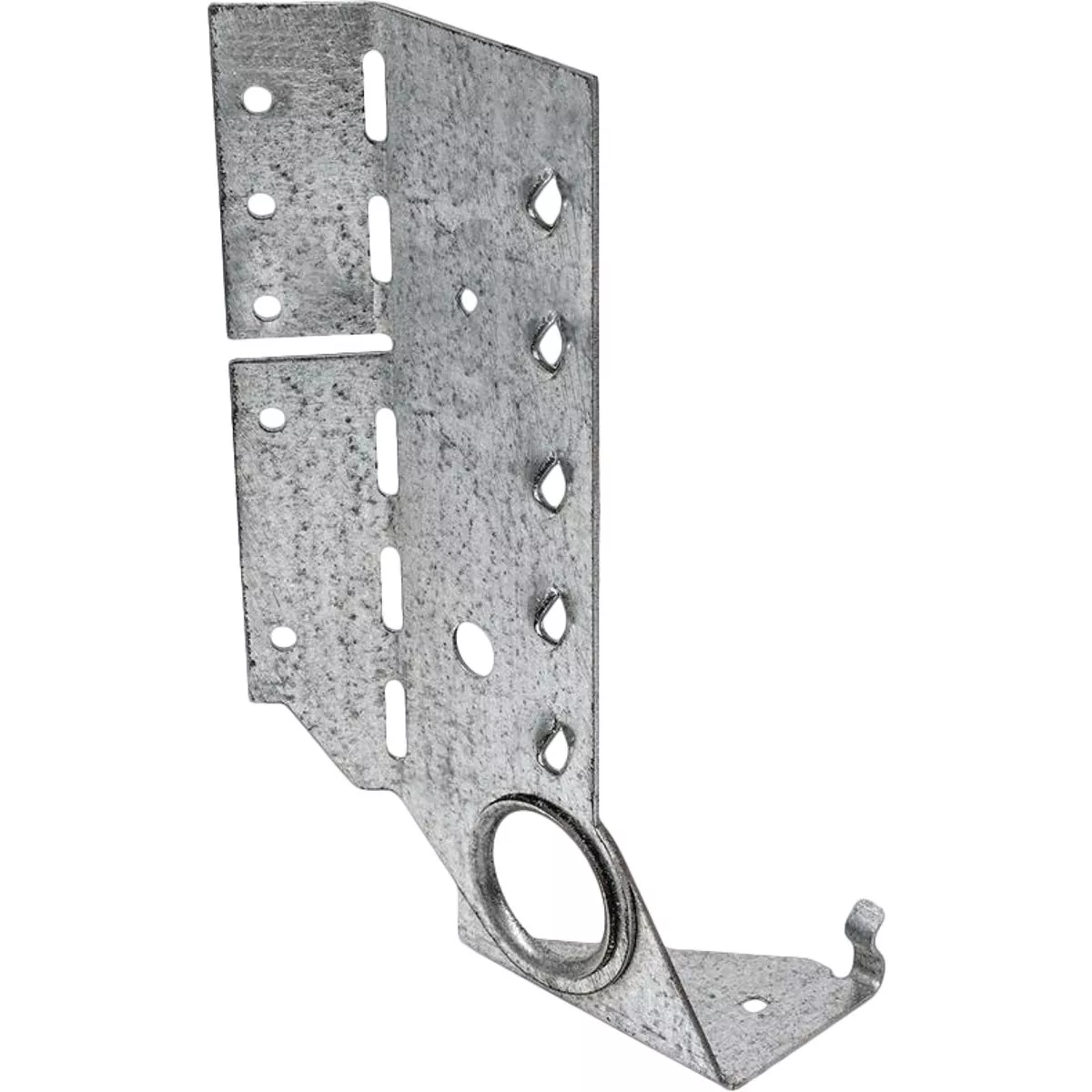

Simpson Strong-Tie ZMAX 2 x 8 Right Face Mount Adjustable Light Slopeable/Skewable Jack Hanger
Model #LSSJ28RZItem #159082UPC 00707392363927
Tap to view
Product overview
The innovative LSSJ is ideal for connecting jack rafters to hip members. Featuring a one-sided connection point for ease of installation and a versatile hinged seat, the LSSJ is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. The LSSJs header flange allows for easy skew adjustment, from 0 to 45. It ships pre-bent at 45 so is ready to place for most typical applications.
- Hanger installs from one side with all fastener holes easily accessible
- Can be installed as a retrofit
- Accommodates roof pitches from 0:12 to 12:12
- Swivel seat adjusts easily and provides more support to joist
- Width: 1-9/16 in.
- Skewed Left
Specifications
| Material | Steel |
| Type | Face Mount |
| Finish | ZMAX |
| Size | 6 In. x 2.4052 In. x 3.7336 In. |
| Gauge | 18 |
| Install With | (5) 0.148x3 or 0.148x1.5 in header&joist |
| Joist Size | 2 In. x 8 In. |
| Width (In.) | 6 |
| Height (In.) | 2.4052 |
| Base (In.) | 3.7336 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392363927 |
| Product type | Joist Hanger |
