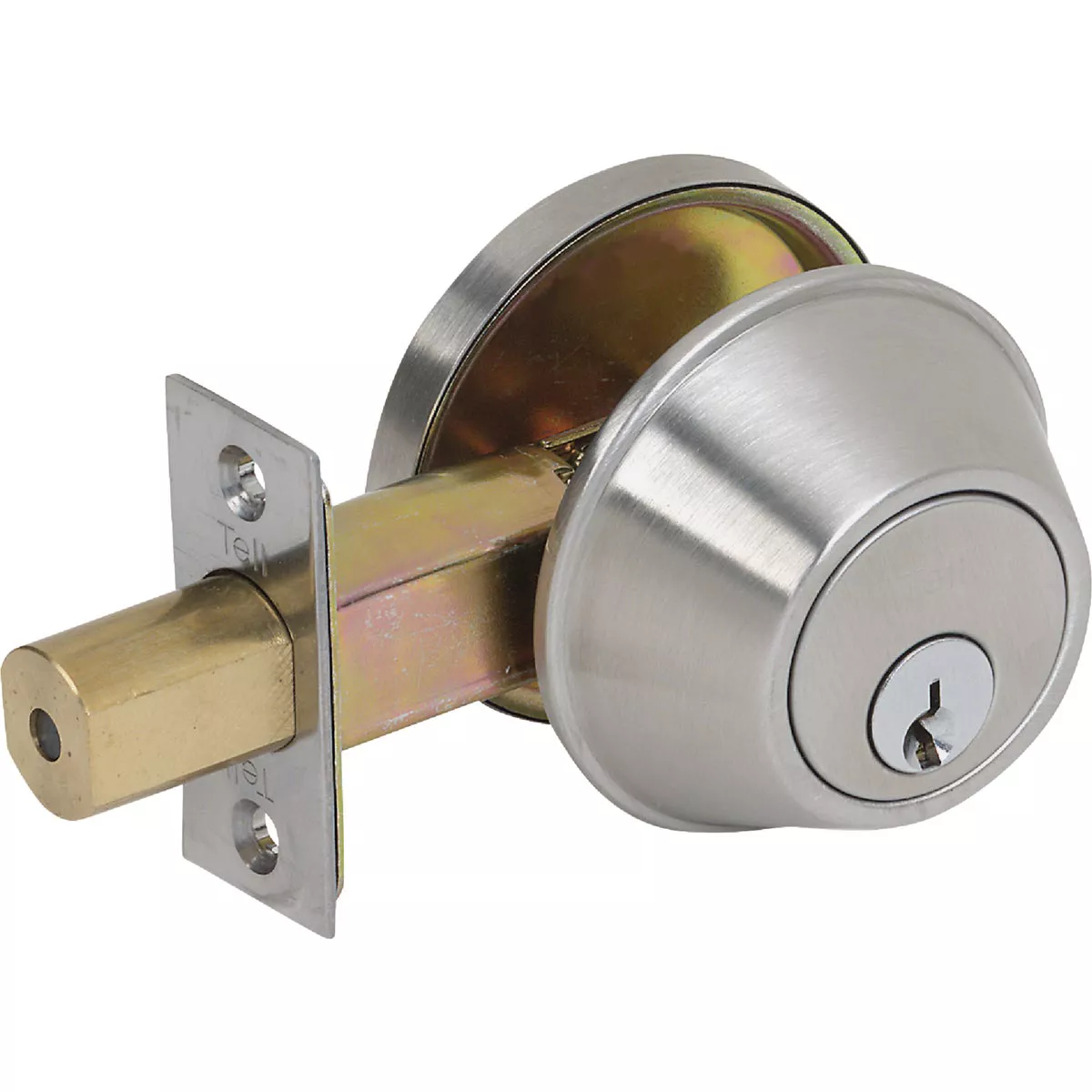

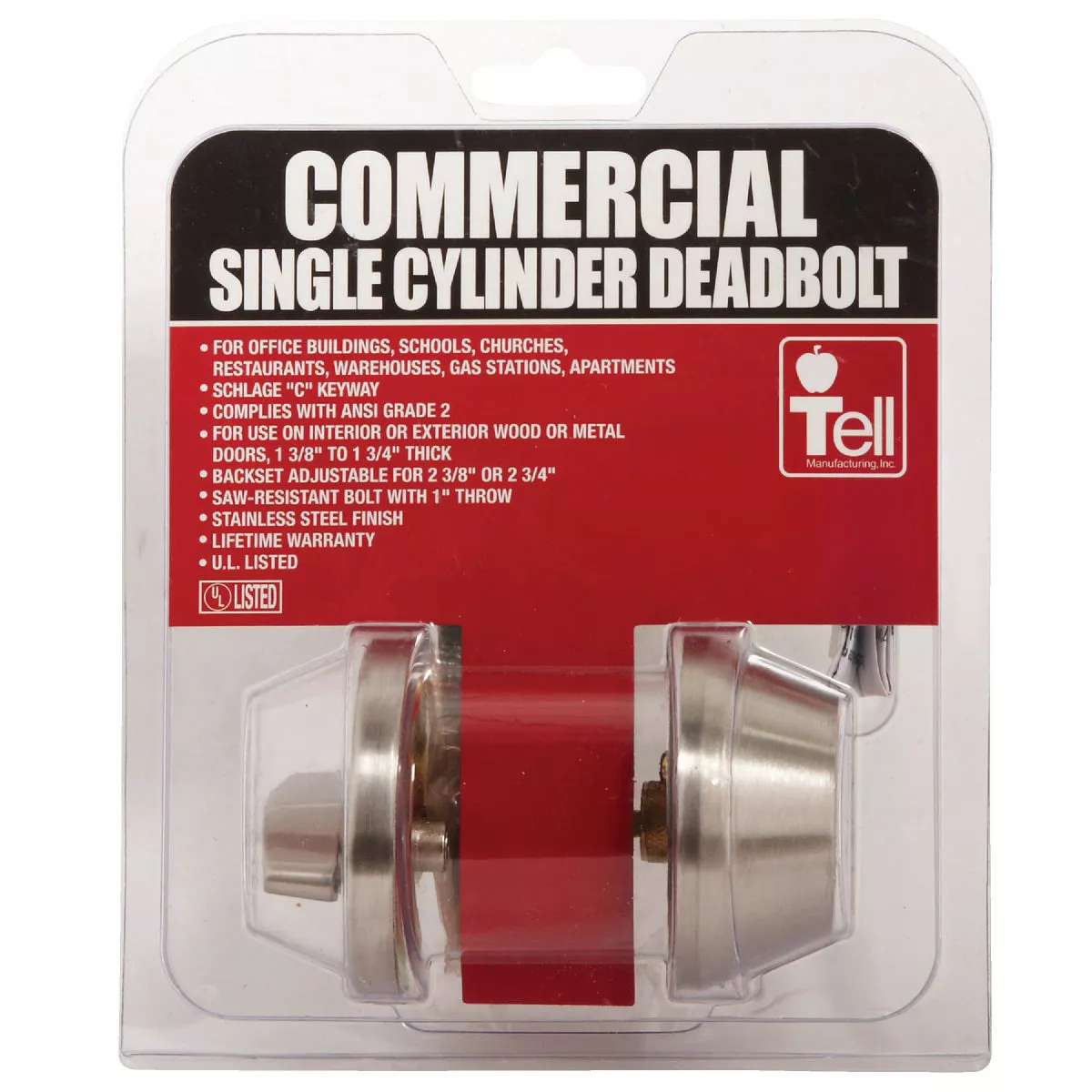

Tell Commercial Stainless Steel Single Cylinder Deadbolt
Model #CL100055Item #243868 UPC 00737874656582
Tap to view
Product overview
(DB2051). Standard duty commercial single cylinder deadbolt. Satin stainless steel (US32D). performance: Complies with ANSI A156.5, Grade 2 (150,000 cycles). Keying: 6 pin SCC keyway with 2 nickel keys per lock. Door range: 1-3/8" to 1-3/4". Backset: Adjustable standard. Tubular construction. Deadbolt operated by key from outside or turn piece inside. For keyed alike, member must order directly from vendor.
- Complies with ANSI A156.5, Grade 2, 150,000 cycles,UL/ULC listed 3 hour fire rating
- 1" x 2-1/4", square corner faceplate, 1" housing diameter
- 2-1/8" diameter for bore, 1" diameter for bolt
Specifications
| Finish Family | Steel |
| Keyway | SCC |
| Brand | Tell |
| UPC | 00737874656582 |
| Product type | Single Cylinder Deadbolt Lock |
