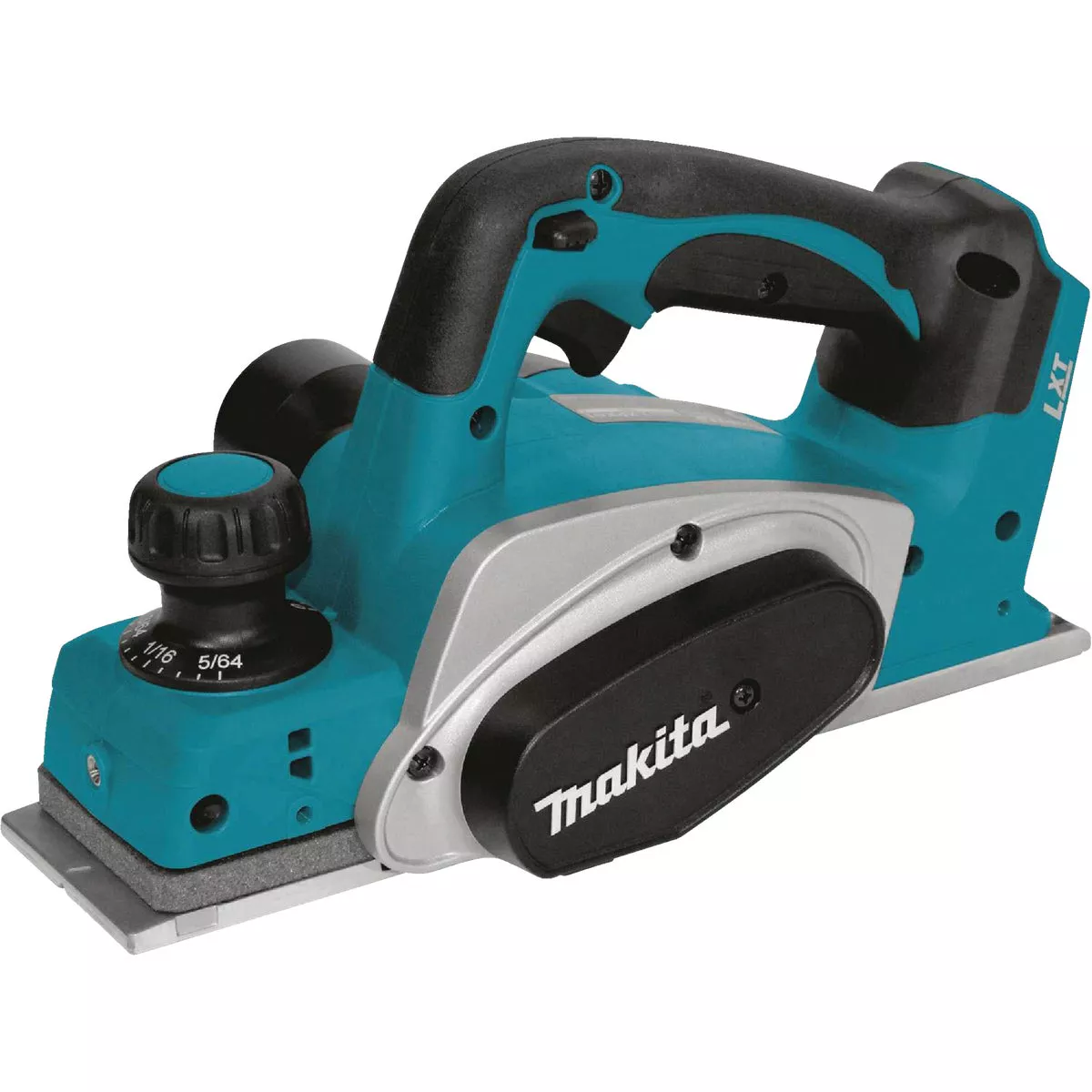

Makita 18V LXT 18 Volt Lithium-Ion 3-1/4 In. Cordless Planer (Tool Only)

Model #XPK01Z Item #301013 UPC 00088381617505
Tap to view
Product overview
18V LXT lithium-ion cordless planer features 2-blade cutter head with double edge carbide blades for added performance and smooth finish. Click depth adjustment knob with easy-to-read scale with settings from 0" to 56/64" for precise depth adjustment. Spring-loaded stand elevates the base to protect the blades and workpiece. Precision machined aluminum base for planing accuracy. Ergonomically centered balance with rubberized soft grips on the front and rear handles for increased comfort on the job. Easy blade setting system for fast blade installation. Electric brake for maximum productivity. Equipped with Star Protection Computer Controls to protect against overloading, over-discharging and over-heating. Rapid Optimum Charger communicates with the battery's built-in chip throughout the charging process to optimize battery life by activity controlling current, voltage and temperature. Compatible with Makita 18V lithium-ion batteries with a Star symbol. 3 year warranty. Includes (1) socket wrench (782209-3), (1) blade set (D46246), and (1) blade gauge (123010-1). Tool Only - battery and charger not included.
  • 15,000 RPM motor
  • Plane up to 3-1/4 In. wide and 5/64 In. deep in a single pass
  • Engineered for door and window installers, finish carpenters, deck installers, remodelers, and general contractors
  • Includes (1) socket wrench (782209-3), (1) blade set (D46246), and (1) blade gauge (123010-1)
  • Tool Only

Product manuals and information

  • Buying Guides
  • Related Product Articles

    Some dust created by power sanding sawing grinding drilling and other construction activities contains chemicals known to the State of California to cause cancer birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints crystalline silica from bricks and cement and other masonry products and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment such as those dust masks that are specially designed to filter out microscopic particles. For more information visit

  • Request Safety Data Sheet (SDS)
Voltage 18
Weight 7.4 Kb,
Warranty 3 Year
Battery Type Lithium-Ion
Charger Included No
Corded/Cordless Cordless
Batteries Included No
Dimensions 13-1/8 In. L
Maximum Speed 14,000 rpm
Planing Width 3-1/4 In.
Planing Depth 5/64 In.
Battery Platform Makita 18V LXT
Length (In.) 13.125
Weight (Lb.) 7.4
Brand Makita
UPC 00088381617505
