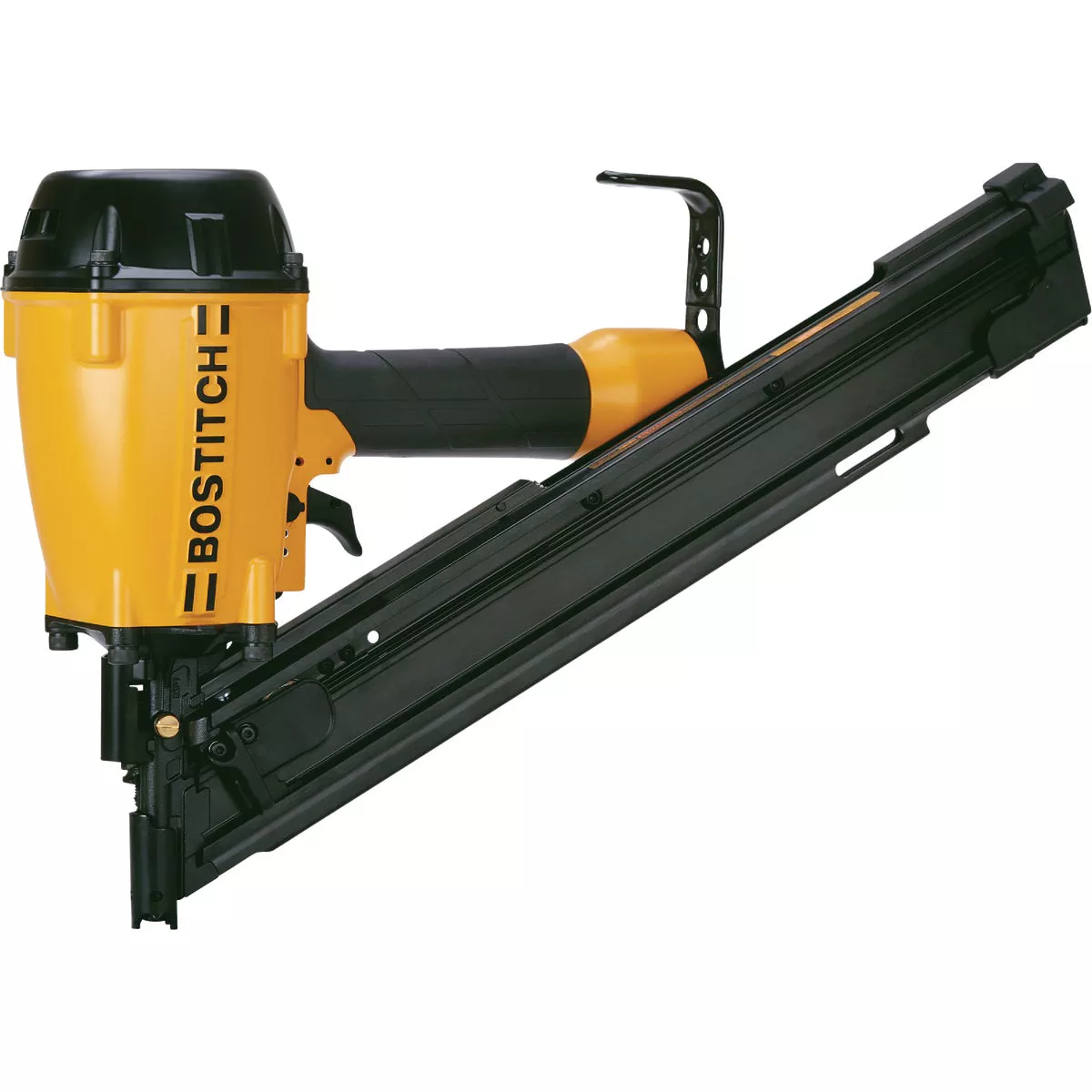

Bostitch 30 Degree 3-1/4 In. Paper Tape Low Profile Framing Nailer
Model #BTF83PTItem #302133UPC 00077914062301
Tap to view
Product overview
The 30-degree paper collated low profile framing nailer features a low profile design for getting in-between rafters and tight spaces. The tool-free selectable trigger allows for a single-drive or multi-drive mode with the flip of a switch, and the tool-free depth of drive adjustment is designed for precise sinking of fasteners. This unit has an adjustable rafter hook which allows users to have both hands free when necessary.
Specifications
| Warranty | 7 Year |
| Dimensions | 4-3/4 In. H x 20-1/2 In. L |
| Weight | 7.6 Lb. |
| Fastener Range | 2 In. to 3-1/4 In. |
| Operating Pressure | 70-120 psi |
| Air Inlet | 1/4 In. NPT |
| Collation | Paper Tape |
| Magazine Angle | 30 Degree |
| Fastener Capacity | 75 Nails |
| Magazine Load | Bottom |
| Fastener Type | Clipped Head |
| Firing Mode | Contact or Sequential |
| Minimum Fastener Size | 2 In. |
| Maximum Fastener Size | 3-1/4 In. |
| Power Type | Pneumatic |
| Weight (Lb.) | 7.6 |
| Height (In.) | 4.75 |
| Length (In.) | 20.5 |
| Corded/Cordless | Corded |
| Brand | Bostitch |
| UPC | 00077914062301 |
| Product type | Framing Nailer |
