Makita

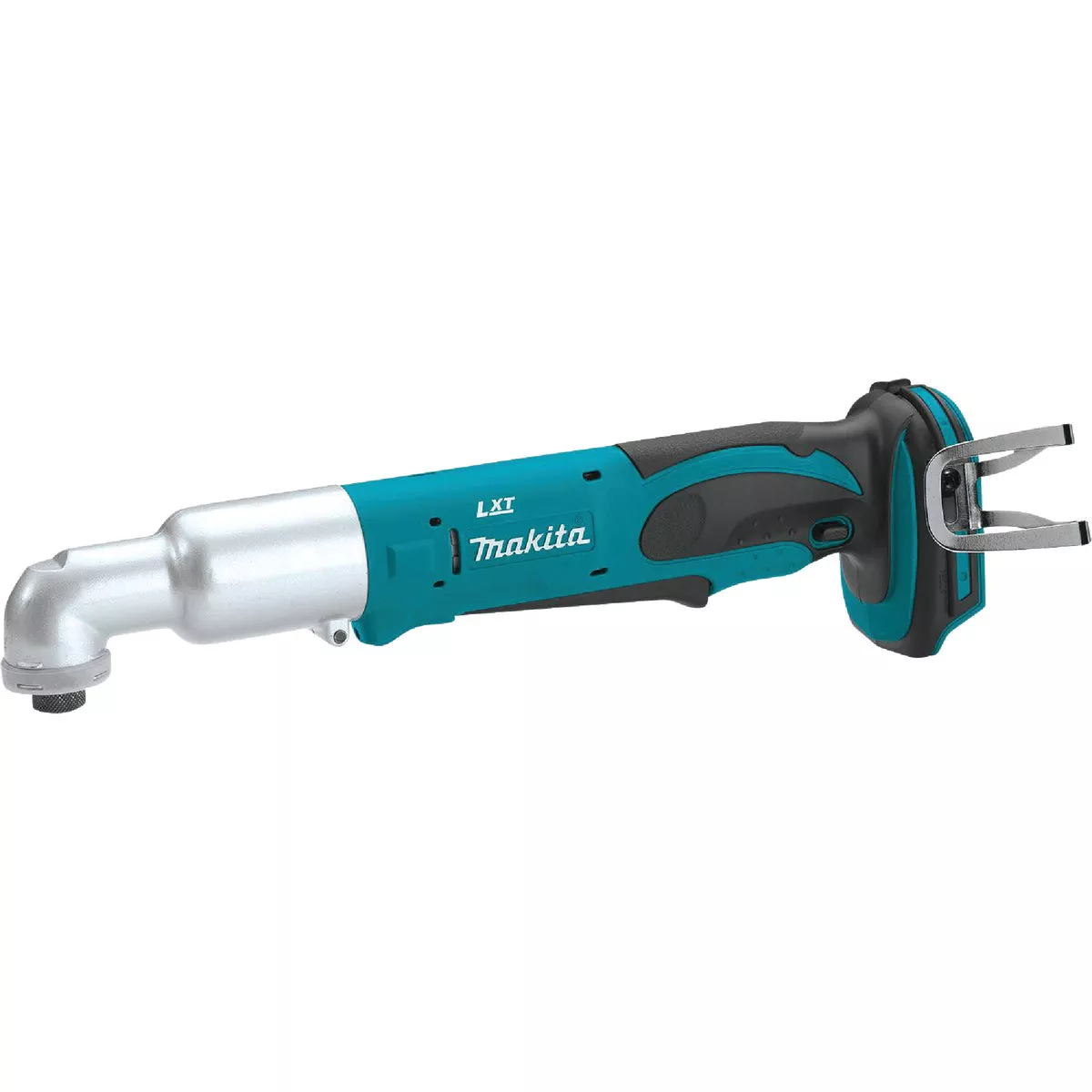

Makita 18-Volt LXT Lithium-Ion 1/4 In. Hex Cordless Angle Impact Drive (Tool Only)

Model #XLT01Z Item #307684 UPC 00088381664257
Tap to view
In-store price may vary from online price. Not all products available at all stores .
Same-day pickup
Not available
Ship to store
Not available
Ship to home
Not available
Product overview
The Makita 18V LXT Lithium-Ion Cordless Angle Impact Driver (model XLT01Z, tool only) delivers cordless impact power into tough to reach spaces. The versatile XLT01Z packs plenty of torque for a wide range of fastening and loosening tasks, yet it weighs just 3.9 Lb. (with battery, sold separately) with a slim design and over one foot of tool extension. Its part of Makitas expanding 18V Lithium-Ion series, the worlds largest cordless tool line-up powered by an 18V Lithium-Ion slide-style battery. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside. Makita-Built Motor Engineered for Versatile Power. The XLT01Z features a Makita-built high torque motor that delivers 530 In./Lb. of Max Torque, 0-2,000 RPMs, and 0-3,000 impacts per minute for a wide range of fastening tasks. Makitas proprietary hammer and anvil impact mechanism are manufactured using the best raw materials with the highest quality steel and unique heat hardening process for maximum fastening and driving power. Ergonomic Design in a Compact Size. The XLT01Z weighs just 3.9 Lb. (with battery, sold separately) with over one foot of tool extension for extra reach into tough to reach spaces. The XLT01Z is equipped with a soft grip handle and a large, conveniently located paddle switch for comfortable operation. The phosphorescent bumper ring is designed for quick location in dark spaces, and a built-in LED light illuminates the work surface for more efficient work. The convenient belt clip mounts on either side of the tool. Versatile Design for a Range of Applications. Due to their versatility, impact drivers are gaining broader acceptance on jobsites for a wide range of fastening and loosening tasks. The XLT01Z brings cordless impact power into tough to reach spaces. It is ideal for HVAC, installers, cabinet installation, assembly, electricians, automotive mechanics, woodworkers, and any pro contractor who requires a best-in-class engineered cordless angle impact driver. Tool Only - battery and charger not included.
  • Makita-built motor delivers 530 In./Lb. of Max Torque
  • Variable speed (0-2,000 RPM & 0-3,000 IPM) for a wide range of fastening applications

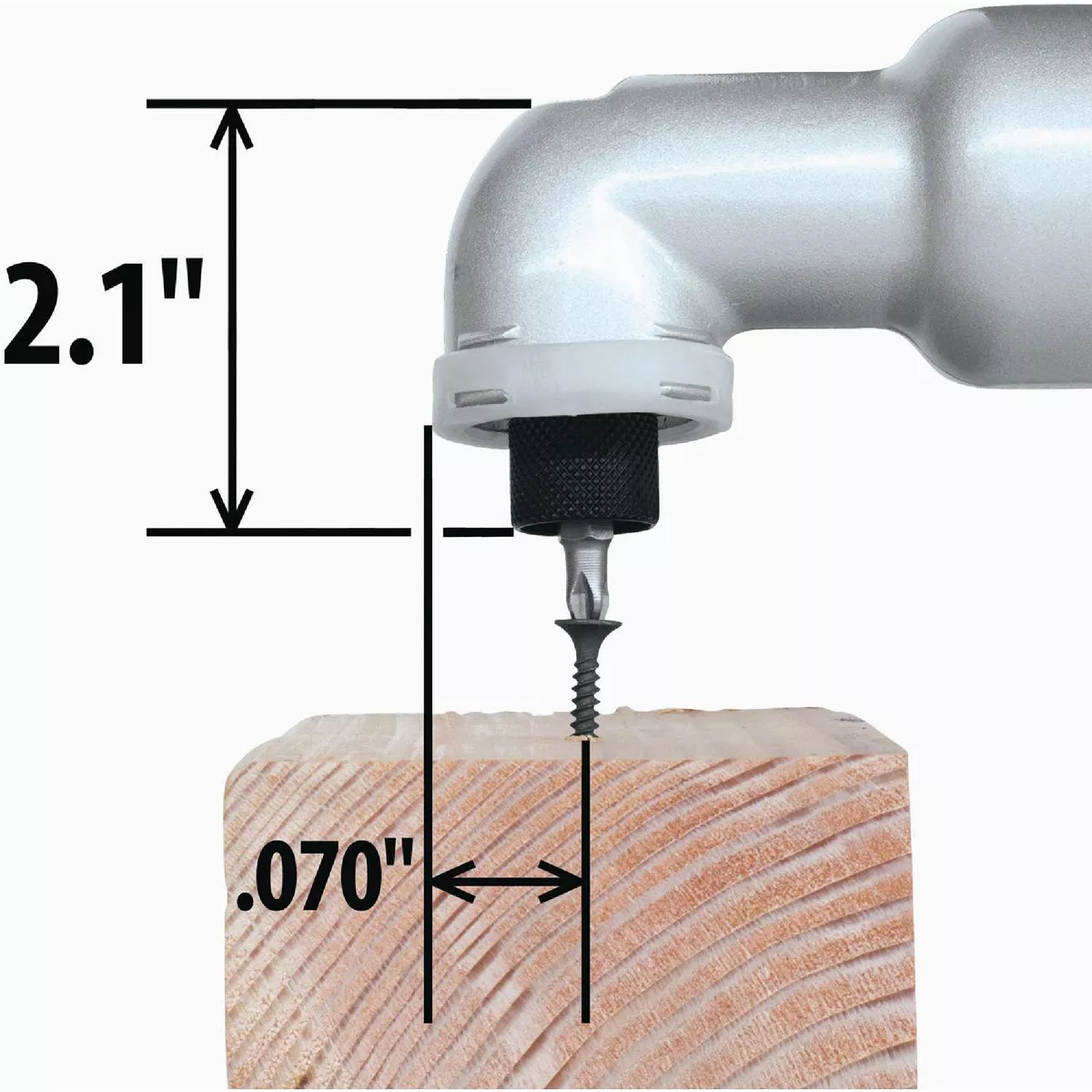

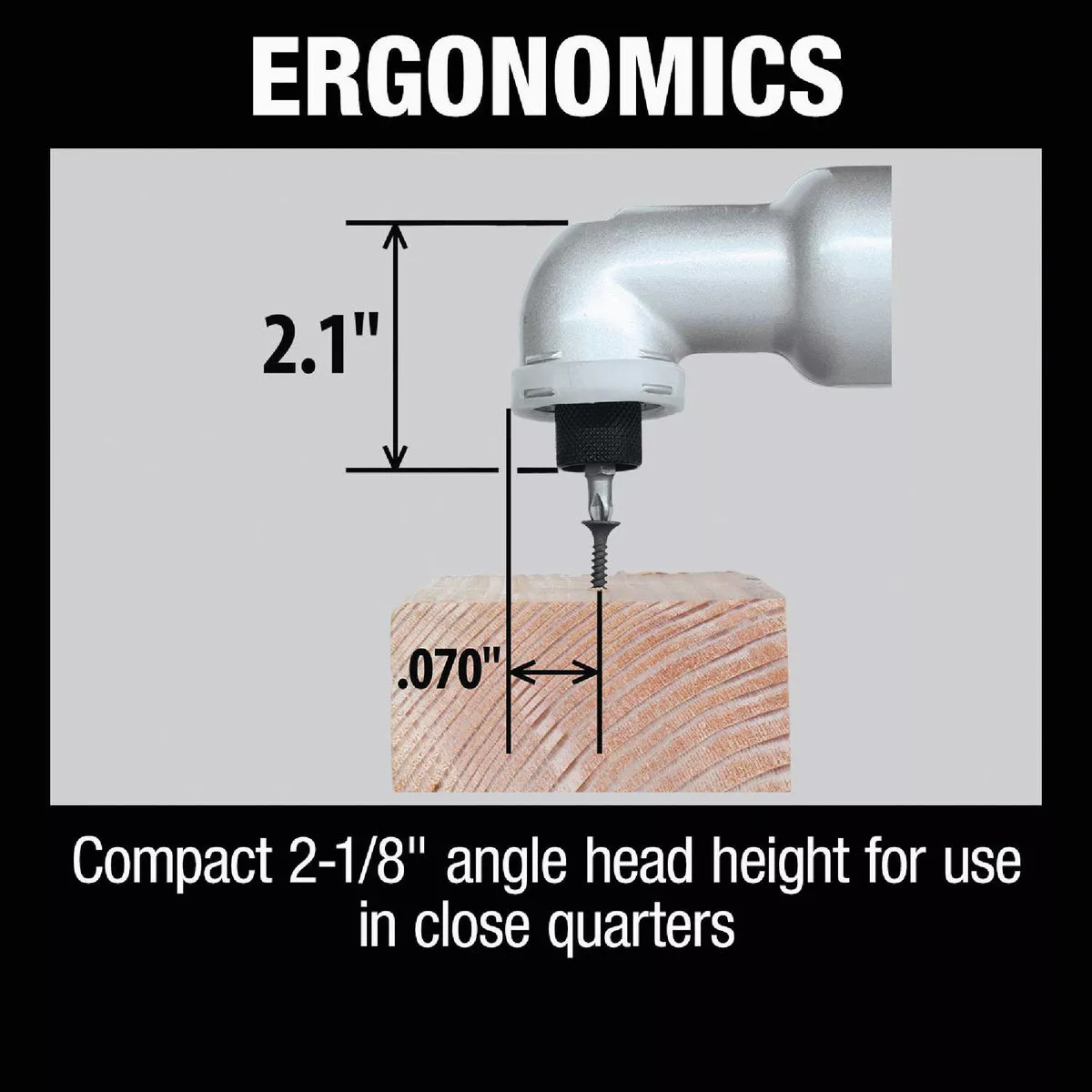

  • Compact 2-1/8 In. angle head height for use in close quarters
  • Large paddle switch with soft grip provides increased comfort
  • Long, ergonomic body design provides maximum reach

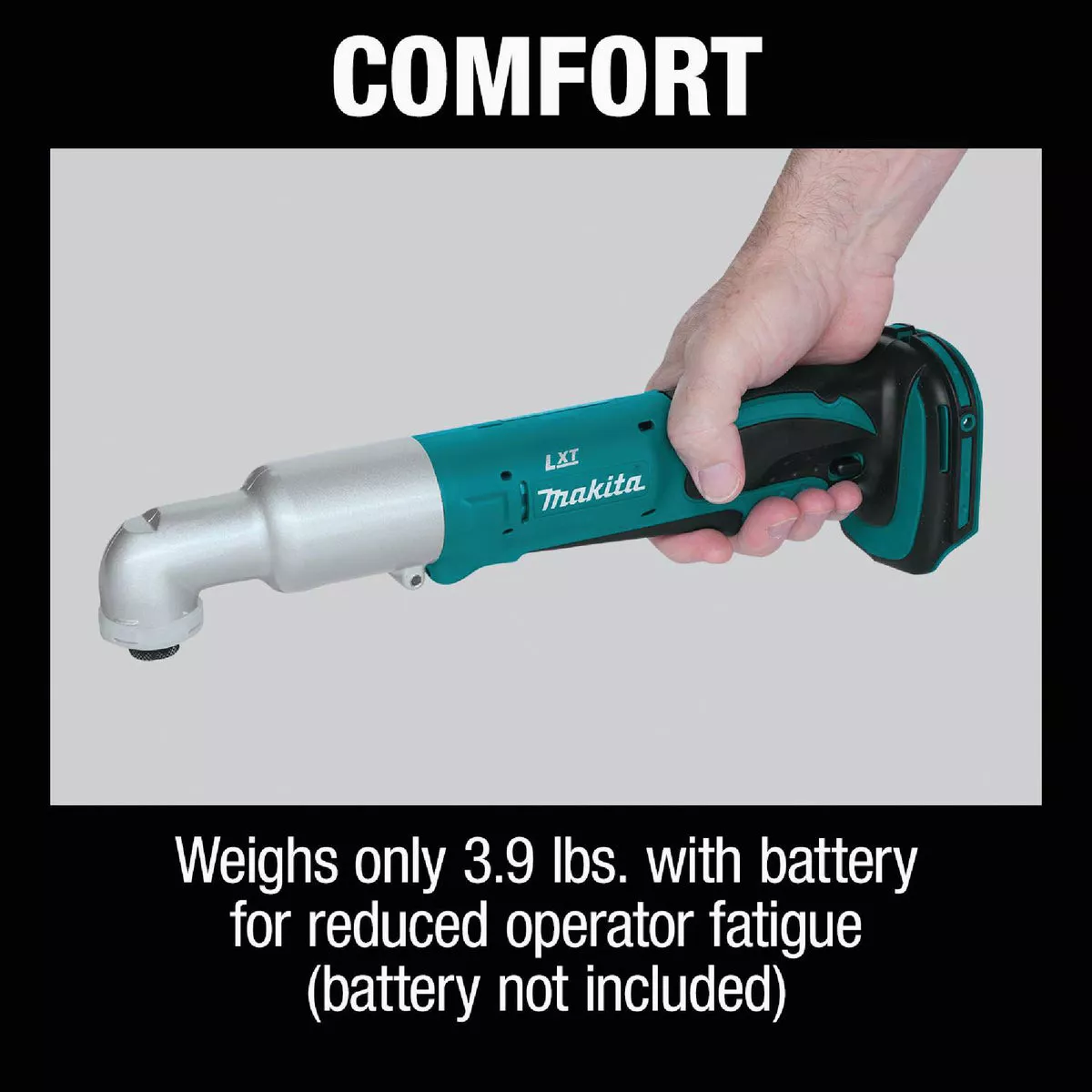

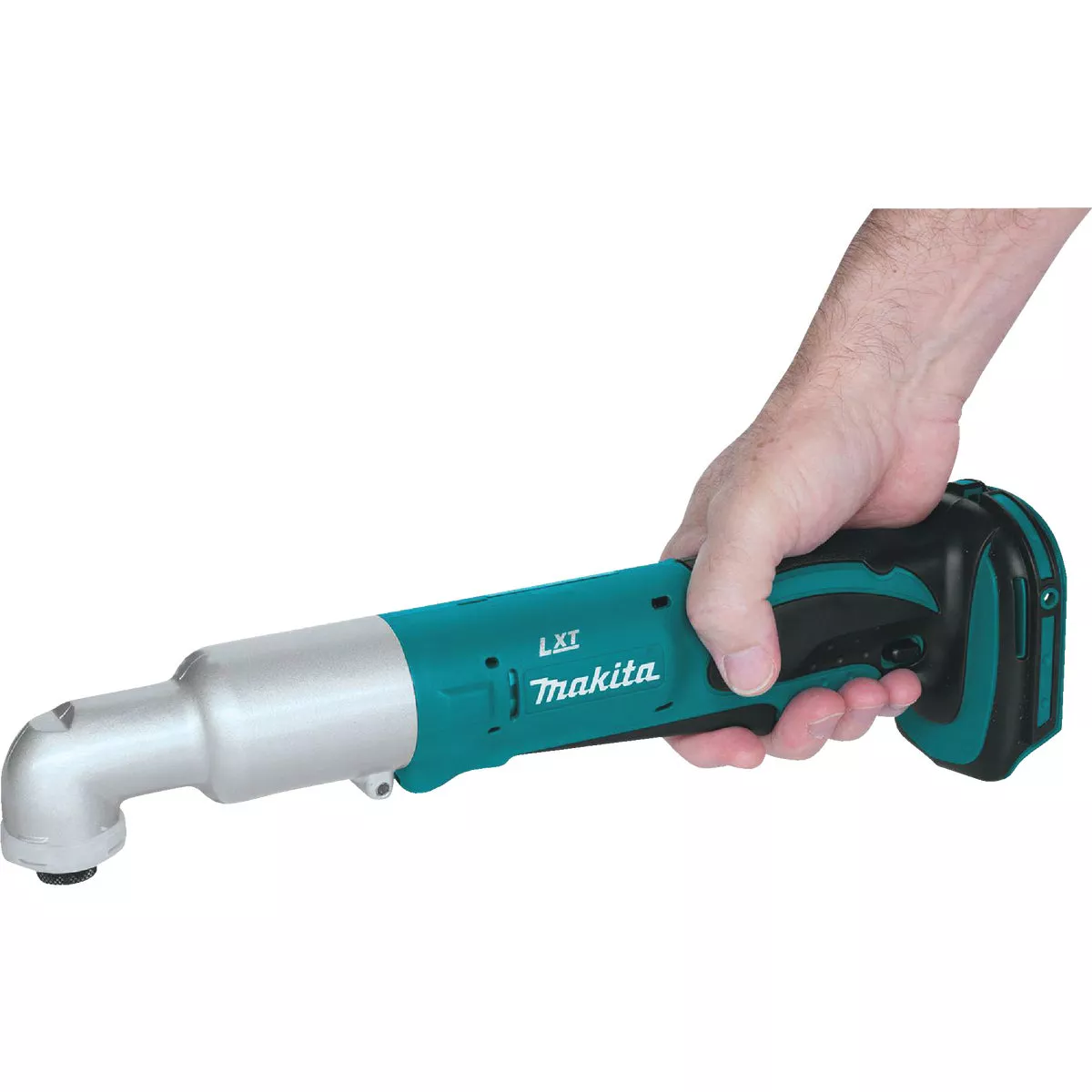

  • Weighs only 3.9 Lb. with battery (battery not included) for reduced operator fatigue
  • Convenient 1/4 In. hex chuck for quick bit changes

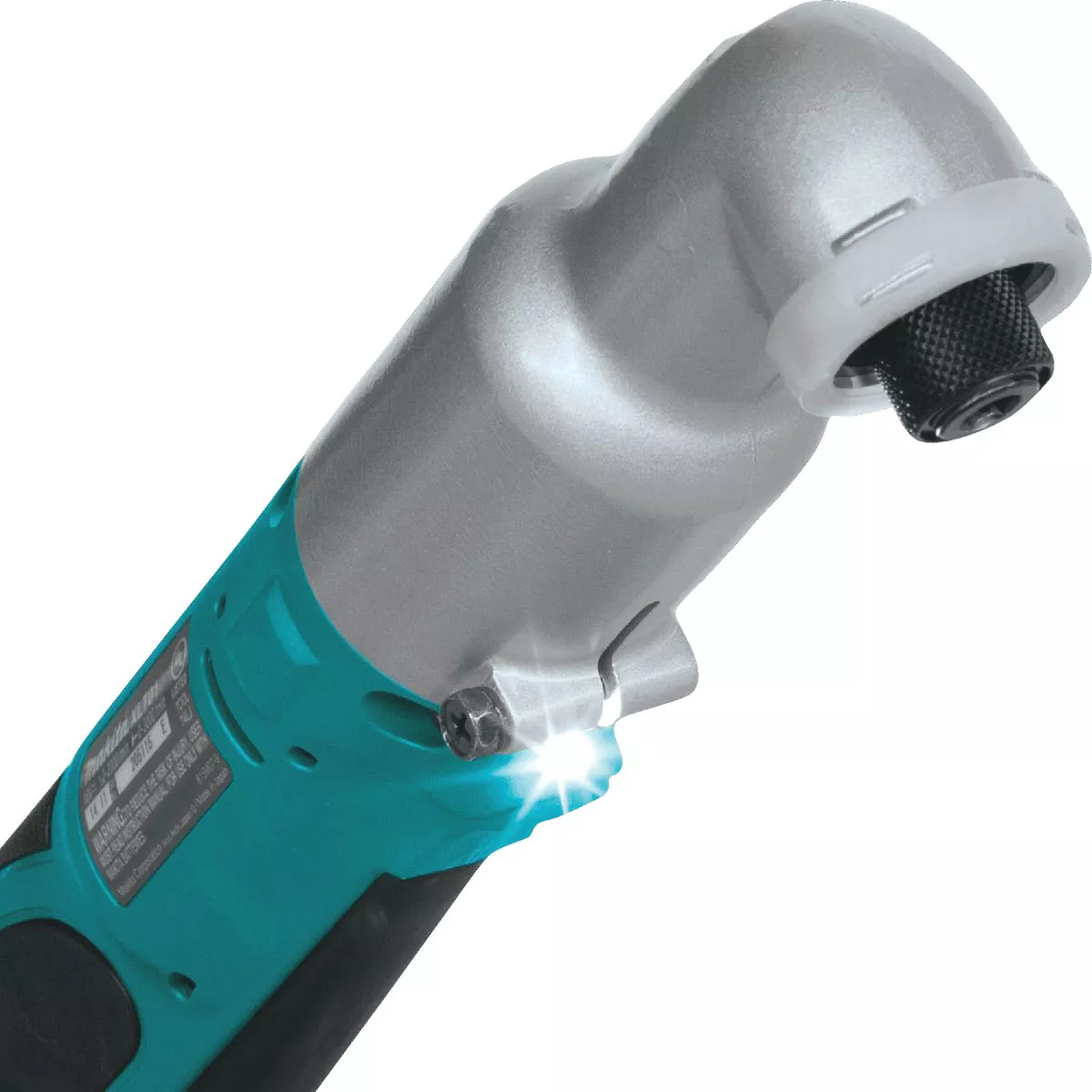

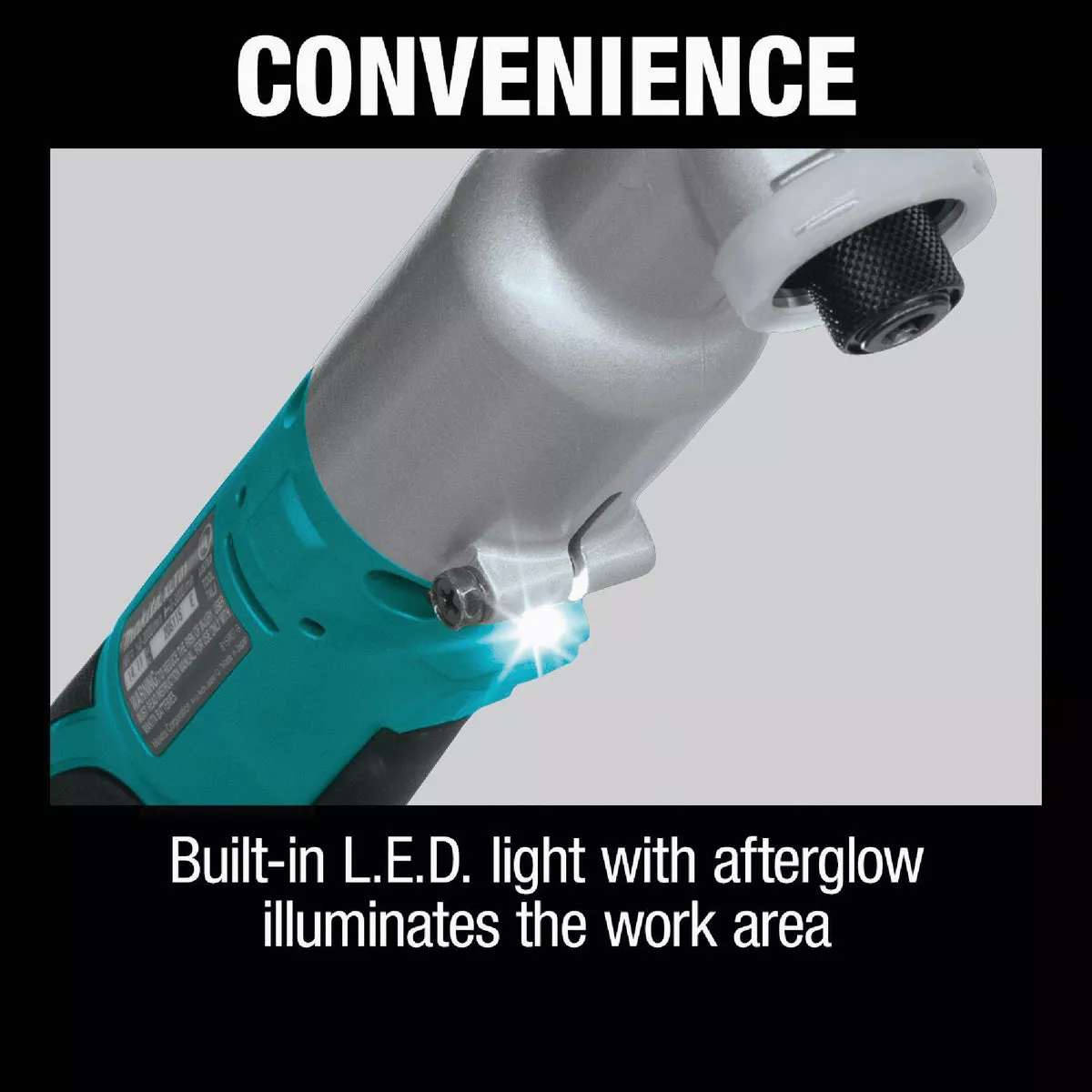

  • Built-in L.E.D. light with afterglow illuminates the work area
  • Rubberized soft grip handle provides increased comfort on the job
  • Only use genuine Makita 18V batteries and chargers

Product manuals and information

  • Buying Guides
  • Related Product Articles
  • California Prop-65 Warning WARNING:

    Some dust created by power sanding sawing grinding drilling and other construction activities contains chemicals known to the State of California to cause cancer birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints crystalline silica from bricks and cement and other masonry products and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment such as those dust masks that are specially designed to filter out microscopic particles. For more information visit www.p65warnings.ca.gov
    WARNING:

    Some dust created by power sanding sawing grinding drilling and other construction activities contains chemicals known to the State of California to cause cancer birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints crystalline silica from bricks and cement and other masonry products and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment such as those dust masks that are specially designed to filter out microscopic particles. For more information visit www.p65warnings.ca.gov
  • Request Safety Data Sheet (SDS)
Voltage 18
Weight 3.9
Warranty 3 Year
Battery Type Lithium-Ion
Charger Included No
Corded/Cordless Cordless
Case Included No
Motor Type Brushed
Batteries Included No
Dimensions 15-1/4 In.
Chuck Size 1/4 In.
Chuck Type Hex
Drive Size 1/4 In. Hex
Torque 530 In./Lb.
Size 1/4 In. Hex
Maximum Speed 2000 rpm
Impacts per Minute 3000
Battery Platform Makita 18V LXT
Length (In.) 15.25
Weight (Lb.) 3.9
Brand Makita
UPC 00088381664257
