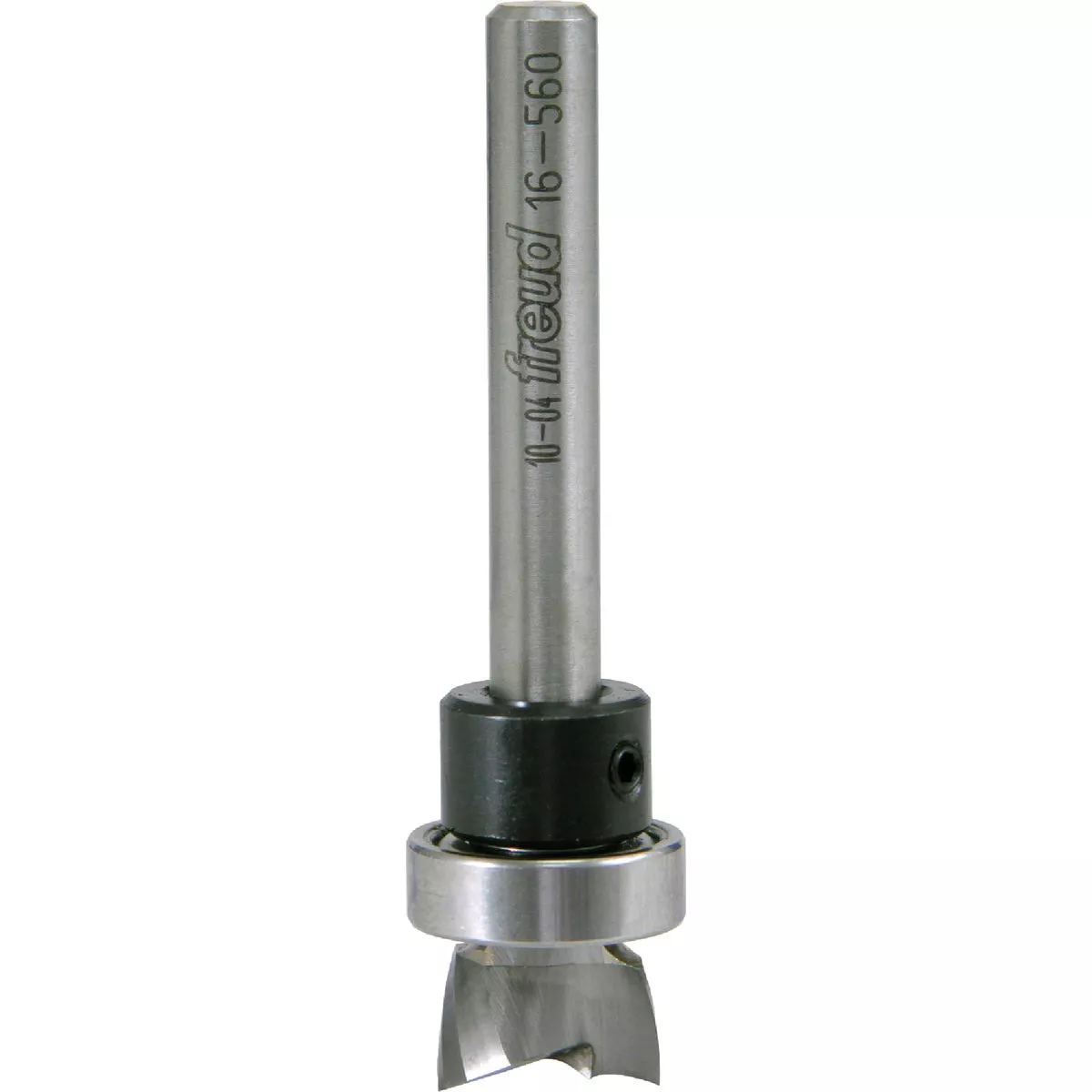

Freud Mortising 1/2 In. Carbide Hinge Mortising Bit

Model #16-560Item #336210UPC 00008925039075
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    Freud Mortising Bits are designed to deliver clean, precise, splinter free mortises in plywood, veneer, solid wood or almost any composite material. Most of these bits feature a down shear design that helps eliminate splintering by pushing wood fibers down during the cut. Ideal for mortising hinges and hardware, or cutting grooves and dadoes. These bits are designed with deep center gullets for maximum material removal without chip loading. Use in any CNC or portable router.
    MaterialCarbide Tip
    Length2-7/16 In.
    Shank Diameter1/4 In.
    Overall Diameter1/2 In.
    Carbide Height5/16 In.
    Length (In.)2-7/16
    BrandFreud
    UPC00008925039075
    Product typeMortising Bit
