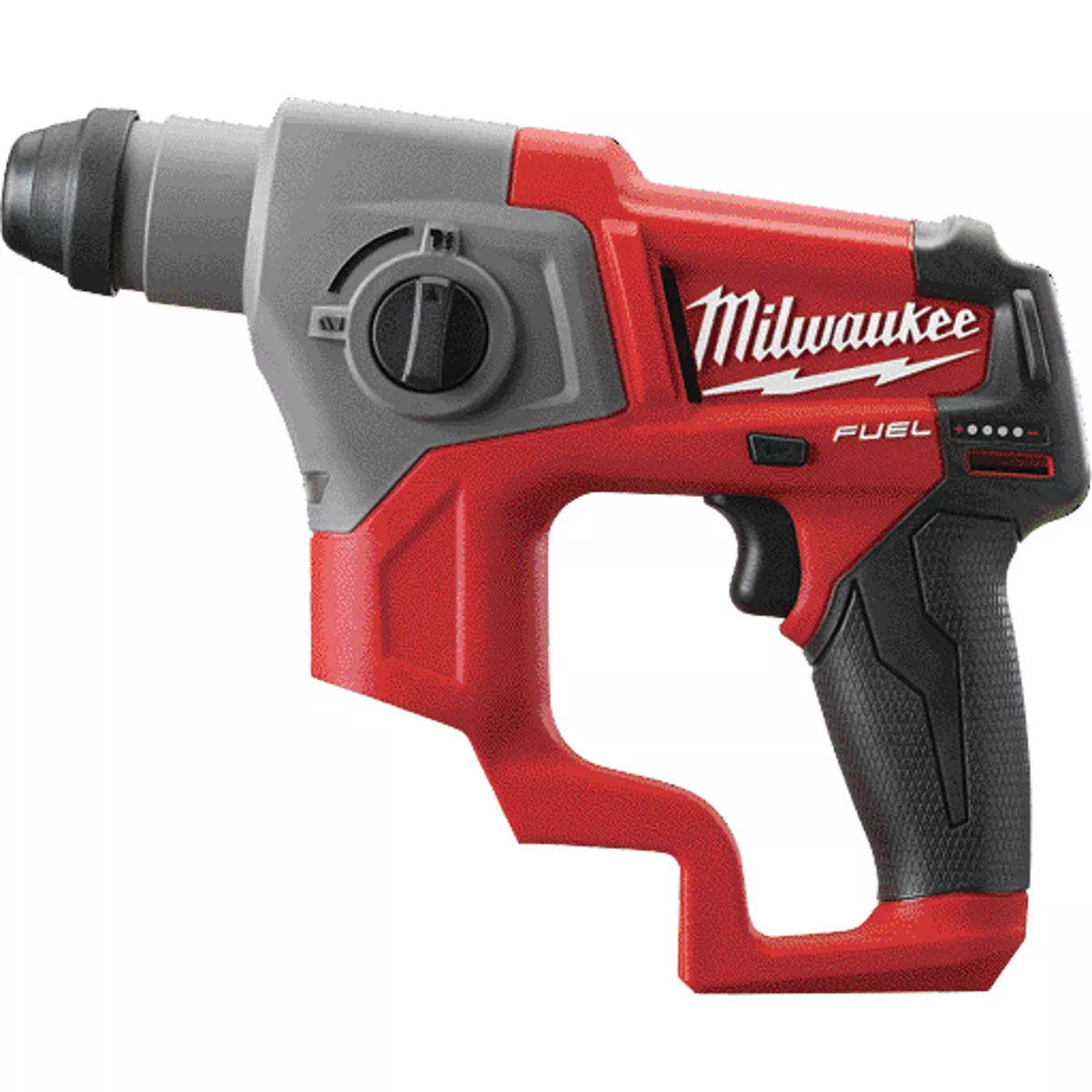

Milwaukee M12 FUEL 12-Volt Lithium-Ion Brushless 5/8 in. SDS-Plus Cordless Rotary Hammer Drill (Bare Tool)

Model #2416-20 Item #350046 UPC 00045242300815
Tap to view
Product overview
The M12 FUEL 5/8 In. SDS-plus rotary hammer provides up to 2X more run-time, up to 75% more speed and has the largest SDS-plus bit capacity in its class. Milwaukee has combined their exclusive POWERSTATE brushless motor, REDLITHIUM battery pack, and REDLINK Plus intelligence to deliver a 12V rotary hammer that rivals compact 18V tools on the market today. At only 10 In. long and 3.9 Lb., this tool provides performance and run time that is comparable to a much larger tool, at a fraction of the size and weight. The electro-pneumatic design allows for drilling of up to 5/8 in. holes in concrete and masonry. For maximum versatility, regardless of application or orientation, the tool also features 2-mode operation, rotary hammer and hammer-only. LED (light emitting diode) light illuminates the work surface. Bare tool - battery and charger not included.
  • REDLITHIUM intelligence:provides optimized performance & overload protection using total system communication between tool, battery & charger
  • REDLITHIUM Battery Technology for superior pack construction, electronics, & performance to deliver more work per charge & more work over pack life
  • Electropneumatic mechanism drills up to 5/8 In. holes in poured concrete and masonry
  • Powerful 12 Volt motor delivers 0-900 rpm and 0-6,200 BPM for superior performance
  • Compact, lightweight design
  • 2-mode operation: choose rotary hammer or rotation only for maximum versatility
  • LED light illuminates the work surface
Voltage 12
Weight 3.9 Lb.
Warranty 5 Year
Battery Type Lithium-Ion
Charger Included No
Corded/Cordless Cordless
Case Included No
Motor Type Brushless
Batteries Included No
Dimensions 10 In. x 3-1/2 In. x 10-1/2 In.
Chuck Size 5/8 In.
Chuck Type SDS-Plus
Maximum Speed 900 rpm
Impacts per Minute 6200
Battery Platform Milwaukee M12
Weight (Lb.) 3.9
Brand Milwaukee
UPC 00045242300815
