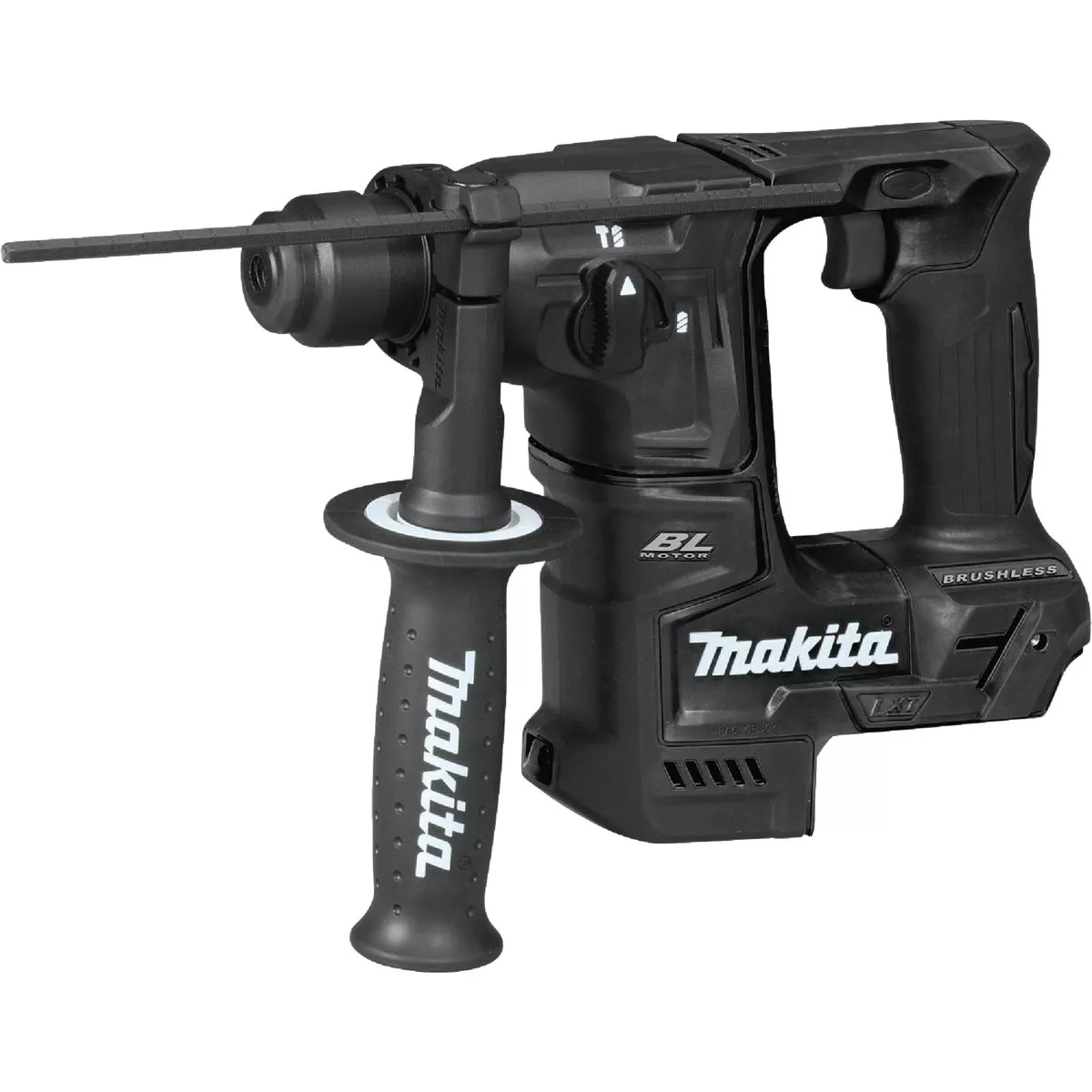

Makita 18-Volt LXT Lithium-Ion 11/16 In. Brushless Sub-Compact Cordless Rotary Tool (Bare Tool)

Model #XRH06ZB Item #360222 UPC 00088381848527
Tap to view
Product overview
Sub-compact rotary hammer is ideal for working in tight spaces and overhead applications. Accepts SDS-PLUS bits. Brushless motor delivers 0-680 rpm, 0-4800 BPM and 0.88 Ft./Lb. of impact energy for faster drilling. Vibration absorbing handle moves independently of the motor and hammer mechanism for increased operator comfort. The electronically-controlled BL brushless motor efficiently uses energy to match torque and rpm to the changing demands of the application. The BL brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life. Two-Mode operation for "Rotation Only" or "Hammering with Rotation" for multiple applications. Variable speed trigger enables user to match the speed to application for greater versatility. Built-in LED (light emitting diode) light illuminates the work area. Weighs only 4.6 lbs. with battery (battery not included) for reduced operator fatigue. One-touch sliding chuck for easy bit changes. Includes (1) depth gauge (415486-9), and (1) side handle. Bare tool - battery and charger not included.
  • Sub-compact - ideal for working in tight spaces and overhead applications
  • Brushless motor eliminates carbon brushes enabling the motor to run cooler and more efficiently
  • 2-mode operation for "Rotation Only" or "Hammering with Rotation"
  • Variable speed trigger
  • Built-in LED light illuminates the work area
  • Vibration absorbing handle
  • Includes (1) depth gauge (415486-9), and (1) side handle

Product manuals and information

  • Buying Guides
  • Related Product Articles

    Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:\n lead from lead-based paints,\n crystalline silica from bricks and cement and other masonry products, and\n arsenic and chromium from chemically-treated lumber.\nYour risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.\nFor more information, visit

  • Request Safety Data Sheet (SDS)
Voltage 18
Weight 4.63 Lb.
Warranty 3 Year
Battery Type Lithium-Ion
Charger Included No
Corded/Cordless Cordless
Case Included No
Motor Type Brushless
Batteries Included No
Dimensions 10-3/4 In. L
Chuck Size 11/16 In.
Chuck Type SDS-Plus
Maximum Speed 680 rpm
Impacts per Minute 4800
Battery Platform Makita 18V LXT
Length (In.) 10.75
Weight (Lb.) 4.63
Brand Makita
UPC 00088381848527
